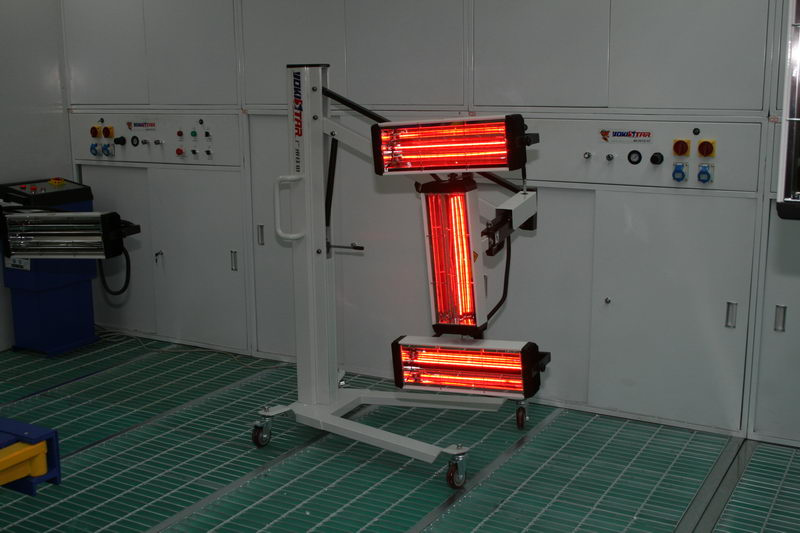

Industrial Faster Temperature Rising Infrared Curing System Infrared Lamp

Name: Industrial Faster Temperature Rising Infrared Curing System Infrared Lamp
Brand: ibuyautoparts.com
SKU: 666572675
Availability: InStock
Rating: 4.8 (52 reviews)

Price:	US $ 269-363/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Model: YS-A30
Package dimention: 1530*1020*370mm L*W*H
With hydraylic system and Y shape basement convenient to move

A. Infrared short wave lamp cure system is widely used in automotive sheet metal repair paint shop.
B. The use of short wave infrared lamp can improve painting surface gloss and fullness, enhance the coating adhesion.
C. The use of short wave infrared lamp can complete drying process from the inside to outside in a very short period, while keep intact the color and spray painting level.

Warranty
The goods are guaranteed for 24 months from the date of receipt, except for the lamps, which are guaranteed for 8000 hours. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

Specification:

Lamp: 3 PCS
Lighting Box: 3PCS
Length of wire: 5m, 3× 4m2
Control Box: Timer, power regulator, lamp switch, power switch

Technical data:
Time of raising temperature: 3-5min (60° C)
Drying time:
1, Putty: 5-8 min
2, Filler: 6-9 min
3, Primer: 7-10 min
4, Base-coat: 7-8 min
5, Top-coat: 8-10 min
6, Clear-coat: 8-10 min
Drying acreage: 1.2× 0.6m²
Drying distance: 0.3-0.6m

Package:
1, Lamp panel: 900× 550× 250mm
2, Post: 1520× 900× 200mm
3, Basement: 1000× 900× 80mm

name	specification	quantity	gross weigt
lamp panel	900× 550× 250	1pc	11KG
post	1520× 900× 200	1pc	25KG
basement	1000× 900× 80	1pc	18KG

Prod Model:	YS-A30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dry Acreage:	0.5*0.6m²
Dry Distance:	0.3-0.6m
Voltage:	1X220V,3X380V,Your Special Voltages Are Accepted

Guangzhou YOKISTAR Co., Ltd. (YOKI STAR for short) is specialized in spray booths, infrared lamps, prep stations, equipments for industrial painting, high temperature drying which can supply design as well as manufacturing service.

Located in BaiYun district of GuangZhou city, YOKI STAR occupies 25000 square meters area, owns around 200 employees which is convenient to the new Baiyun airport (20 minutes by car) and the railway station (30 minutes).

As a professional designer and manufacturer with target in 'To be the best, but not to be the biggest', YOKI star succeeds to international advanced design standards and manufacturing technologies, follows international quality management and control system, produces first-class professional products of the world and shares with friends all over the world.

The products of YOKISTAR can be used widely for automobile maintenance, vehicles manufacturing, machinery manufacturing as well as trains, planes and furniture. Our products are popular in European Union, North America, South America, Middle East, East and South Asia, Africa, and have established completely sales system all around the world. YOKISTAR aims to be the spraying and baking equipments manufacturer with leading brand in the world, and to become modernized enterprise with international competitive advantage.

YOKISTAR is an ideal cooperator who deserves your reliance.
