Prod Model: |
Series 300 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Drive Type: |
Spring |
Spring Brand: |
Kern-Liebers |
Construction: |
All Bolted Unitized |
Mounting: |
Floor, Wall, Bench, Truck |
Inlets: |
1/4", 5/16", 3/8", 1/2" |
Material: |
3.0mm Cold Steel |
Surface Finish: |
Powder Coated |
Color: |
Gray |
Product Description

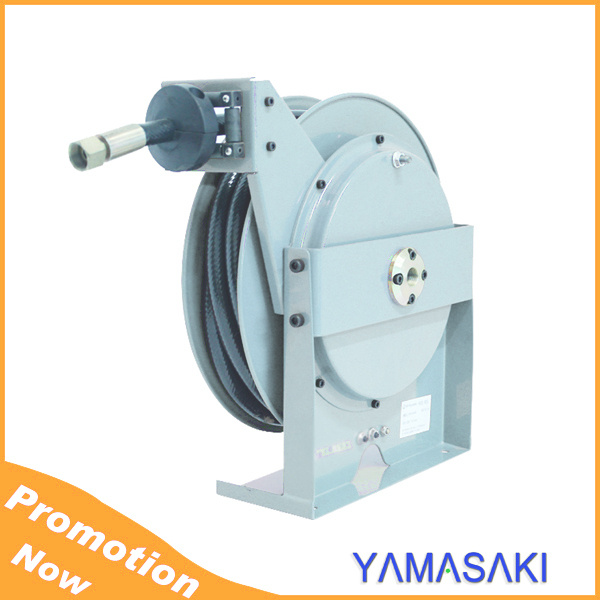

Industrial Compact spring reel
Designed to spec and built of the highest quality materials, our reels stand up to the most demanding conditions of any industry. We offer thousands of hose and cable reels to address your requirements, while improving efficiency, productivity, and safety in your operation.
Applications:
· pneumatic power tools
· Hydraulic
· Washdown and sanitation
· Chemical transfer
· Washdown/power wash
· Potable water
· Pressurized air
· Oxygen/Acetylene welding
· Fuel and lubrication
· Electric cable for lights, tools, and machinery
· Vacuum
300 series reel, compact, beautiful light, particularly suitable for space-constrained applications requiring high variety of oil and gas services.
Fluid path: 1/4", 5/16", 3/8", 1/2"
Appilication | Pressure Mpa(psi) | Hose inner dia. mm (In) | Hose length m (ft) | Reel inlet | Reel outlet | Pin No. (with hose) | Pin No. (without hose) |
Air/Water/Anti-freeze | 2(300) | 6 (1/4) | 10(33) | 1/2" | 1/4" | 300020110 | 300020100 |
Air/Water/Anti-freeze | 2(300) | 6 (1/4) | 15(50) | 1/2" | 1/4" | 300020115 | 300020100 |
Air/Water/Anti-freeze | 2(300) | 8 (5/16) | 8(25) | 1/2" | 1/4" | 300020208 | 300020200 |
Air/Water/Anti-freeze | 2(300) | 8 (5/16) | 12(40) | 1/2" | 1/4" | 300020212 | 300020200 |
Air/Water/Anti-freeze | 2(300) | 10(3/8) | 10(33) | 1/2" | 3/8" | 300020310 | 300020300 |
Air/Water/Anti-freeze | 2(300) | 12(1/2) | 10(33) | 1/2" | 1/2" | 300020410 | 300020400 |
Oil/Water | 19(2780) | 6 (1/4) | 12(40) | M20×1.5 | M14×1.5 | 300190112 | 300190100 |
Oil/Water | 15(2280) | 10(3/8) | 10(33) | M20×1.5 | M18×1.5 | 300150310 | 300150300 |
Oil/Water | 14(2030) | 12(1/2) | 8(25) | M20×1.5 | M22×1.5 | 300140408 | 300140400 |
Grease | 35(5075) | 6 (1/4) | 10(33) | M20×1.5 | M14×1.5 | 300350110 | 300350100 |
