| Prod Model: |
30222 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
Stock |
| Type: |
Wheel Hub Bearing |
| Material: |
Chrome Steel |
| Tolerance: |
P0 |
| Certification: |
ISO9001 |
| Clearance: |
C3 |
| ABS: |
Without ABS |
| Brand: |
All Cars |
| Application: |
All Cars |
Product Description

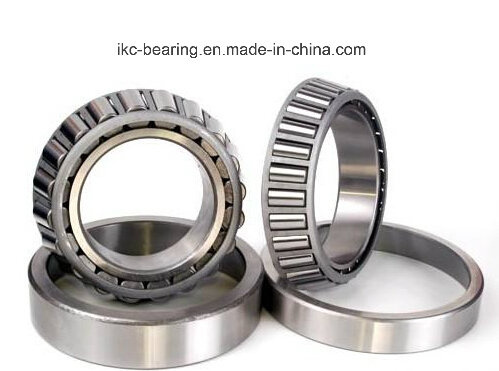

Taper Roller Bearings
31300 32900 32000 33000 33100 30200 32200 30300 32300 INCH series
Taper roller bearing 302 series:
30202, 30203, 30204, 30205, 30206, 30207, 30208, 30210, 30211, 30212, 30213, 30214, 30215,
303 series of Taper roller bearing:
30303, 30304, 30305, 30306, 30307, 30308, 30309, 30310, 30311, 30312, 30313, 30314, 30315, 30316,
Taper roller bearing 322 series:
32203, 32204, 32205, 32206, 32207, 32208, 32209, 32210, 32211, 32212, 32213, 32214, 32215, 32216,
323 series of Taper roller bearing:
32303, 32304, 32305, 32306, 32307, 32308, 32309, 32310, 32311, 32312, 32313, 32314, 32315, 32316,
Taper roller bearing 313 series:
31303, 31304, 31305, 31306, 31307, 31308, 31309, 31310, 31311, 31312, 31313, 31314, 31315, 31316,
Taper roller bearing 33005 series:
33005, 33006, 33007, 33008, 33009, 33010, 33011, 33012, 33013, 33014, 33015, 33016, 33017, 33018,
Koyo, NACHI, Timken, NSK, NTN, SKF brand -taper roller bearing, auto bearing, wheel bearing for Japanese car Bearing No. Ref. Series 1:
LM11749/10 LM11949/10 M12649/10 LM12749/10 LM12749/11 L44643/10 M84548/10 15103/245 15103S/243 L44649/10 L45449/10 329013 M86649/10 LM67048/10 LM67049A/10 15123/245 2580/20 M88048/10 LM48548/10 25877/20 25877/21 2793/20 31594/20 3872/20 L68149/10 L68149/11 HM89449/10 JL69349/10 2776/20 2788/20 418/414 2789/20 HM801349/10 LM300849/11 HM803146/10 HM803146/11 18590/20 LM501349/10 LM501349/14 11162/300 25578/20 HM801349/10 HM801349/11 25580/20 25582/20 HM803149/10 3782/20 3776/20 LM102949/10 LM603049/11 25590/20 25590/22 25590/23 LM503349A/10 18690/20 359A/354A 3778/20 JLM104948/10 LM104949/11 18790/20 18790/243780/20 LM806649/10 387/382A 387A/382A 387AS/382A 387S/382A 462/453X 29580/20
Bearing No. Ref. Series 2:
02474/20, 02475/20, 09067/195, 102949/10, 104948/10, 104949/11, 11162/300, 11590/20, 11749/10, 11949/10, 12649/10, 1280/20, 14118/283, 14127A/276, 14138A/276, 15123/245, 16150/284, 17887/31, 18590/20, 19150T/282, 1988/20, 21075/12, 212047/10, 212049/11, 215249/10, 218248/10, 220149/10, 25580/20, 25590/20, 25880/20, 25883/24, 27687/20, 2788/20, 28580/21, 28584/22, 28985/20, 29585/20, 29586/20, 29586/22, 29590/20, 29675/20, 29685/20, 29749/10, 29749/11, 31593/20, 300849/10, 33252/462, 33275/462, 33281/472, 33287/462, 3382/25, 3490/20, 359S/354X, 368A/362A, 3767/20, 3778/20, 3780/20, 3782/20, 3795/20, 387A/382A, 387/382, 389AS/382, 39236/433, 395A/394A, 395A/396A, 39581/20, 39590/20, 3982/20, 3984/20, 3994/20, 418/414, 44643/10, 44649/10, 45284/20,
Bearing No. Ref. Series 3:
45289/20, 45449/10, 462/453X, 480/472, 48548/10, 501349/10, 503349/10, 515649/10, 518445/10, 536/532X, 55176/443, 55187/443, 566/563, 567/563, 570/572, 580/572, 596A/592A, 603049/11, 65385/20, 67048/10, 68149/10, 68149/11, 69349/10, 710949/10, 749/742, 801346/10, 801349/10, 801349/12, 84548/10, 86649/10, 88048A/10, 88048S/10, 88048/10, 88547/10, 88649/10, 89446/10, 89449/10, 903249/10, 907639/10, 15120, 25580, 14136A, 7815, 24780/20, 2788/20, 903249, 88047, 911245/20, 913843/20, 683/672, 903249, 37425, 3984, 911242
Product: Tapered roller bearing, taper bearing, roller bearing, inch bearing, bearings.
| Dimension(mm) | Rated Load(N) | Model Number | Weight(kg) |
| d | D | T | B | C | r1 | r2 | Cr | Cor |
| 15 | 35 | 11.5 | 11 | 10 | 0.6 | 0.6 | 15800 | 14500 | 30202 | 0.053 |
| 42 | 14.25 | 13 | 11 | 1 | 1 | 21900 | 19200 | 30302 | 0.095 |
| 17 | 40 | 13.25 | 12 | 11 | 1 | 1 | 20400 | 20200 | 30203 | 0.07 |
| 40 | 17.25 | 16 | 13 | 1 | 1 | 25400 | 24600 | 32203 | 0.18 |
| 47 | 15.25 | 14 | 12 | 1 | 1 | 30000 | 27600 | 30303 | 0.13 |
| 47 | 20.25 | 19 | 16 | 1 | 1 | 30500 | 33000 | 32303 | 0.17 |
| 20 | 42 | 15 | 15 | 12 | 0.6 | 0.6 | 25100 | 28200 | 32004 | 0.1 |
| 47 | 15.25 | 14 | 12 | 1 | 1 | 29500 | 30500 | 30204 | 0.12 |
| 47 | 19.25 | 18 | 15 | 1 | 1 | 27500 | 28000 | 32204 | 0.23 |
| 52 | 16.25 | 15 | 13 | 1.5 | 1.5 | 35000 | 35500 | 30304 | 0.17 |
| 52 | 22.25 | 21 | 18 | 1.5 | 1.5 | 45100 | 46700 | 32304 | 0.239 |
| 25 | 47 | 15 | 15 | 11.5 | 0.6 | 0.6 | 28000 | 34000 | 32005 | 0.11 |
| 47 | 17 | 17 | 14 | 0.6 | 0.6 | 27500 | 37000 | 33005 | 0.14 |
| 52 | 16.25 | 15 | 13 | 1 | 1 | 31500 | 33700 | 30205 | 0.152 |
| 52 | 19.25 | 18 | 15 | 1.1 | 1.1 | 32500 | 35000 | 32205 | 0.18 |
| 62 | 18.25 | 17 | 15 | 1.5 | 1.5 | 48200 | 46900 | 30305 | 0.265 |
| 62 | 18.25 | 17 | 13 | 1.5 | 1.5 | 39800 | 42500 | 30305DJ | 0.267 |
| 62 | 25.25 | 24 | 20 | 1.5 | 1.5 | 61200 | 64100 | 32305 | 0.378 |
| 30 | 55 | 17 | 17 | 13 | 1 | 1 | 37500 | 46500 | 32006 | 0.17 |
| 55 | 20 | 20 | 16 | 1 | 1 | 39500 | 59500 | 33006 | 0.22 |
| 62 | 17.25 | 16 | 14 | 1 | 1 | 43500 | 48000 | 30206 | 0.22 |
| 62 | 21.25 | 20 | 17 | 1 | 1 | 53000 | 64500 | 32206 | 0.28 |
| 72 | 20.75 | 19 | 16 | 1.5 | 1.5 | 59600 | 60100 | 30306 | 0.399 |
| 72 | 20.75 | 19 | 14 | 1.5 | 1.5 | 50900 | 54900 | 30306DJ | 0.395 |
| 72 | 28.75 | 27 | 23 | 1.5 | 1.5 | 82200 | 91600 | 32306 | 0.579 |
