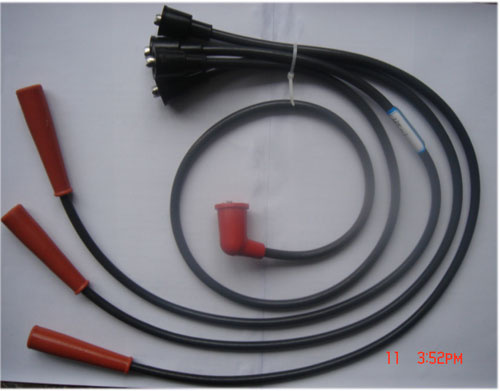

Ignition Cable/Spark Plug Cable for Suzuki
| Price: |
US $ 2/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
500/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Rubber boots&caps used on spark plug and Distributor |
| Material | Silicone |
| Shore-Hardness | 60°+ 5° |
| Elogation | ≥280ºC |
| Age resisance | Hardness range is 0-7(Shore-hardness) after 200+2.5ºC.168H |
| Temperature range | -40ºC~+200ºC |
| Tensile set | ≤20% |
| Tear strength | ≥15KN/M |
| Breakdown voltage | ≥30KV |
| Ozone resistance | (50pphm 40ºCX72H) No dehiscence |
| Ignition Cable |
| Test item\Specification | Ø5mm | Ø 7mm | Ø 8mm | ≥Ø 9mm |
| Implemented standard | GB/T14820.3-93, ISO3808/2-1980 |
| Shore-Hardness | 75°+ 3° |
| Breakdown voltage(Industrial frequenly AC) | Type A(Resistance) | ≥25KV |
≥35KV |
≥35KV |
≥40KV |
| Type B(Resistance) | |
| Type C(Resistance) | |
Resistance | Type A ,B | 16KΩ+30% |
| Type C | | Wirewound 0.5 KΩ~16 KΩ(discrentionary) |
| Diameter of cable | Ø5+0.3mm | Ø 7+0.3mm | Ø 8+0.3mm | Ø 9+0.3mm |
| Working temperature range | -40ºC~+200ºC |
| Tensile strength | ≥23KN |
| Ignition Cable Set |
| Appearance | Colour and lustre is symmetry, character is clear and smooth, flat, no bug on the surface |
| Engage and disengage force | Distributor: 30N~50N, Spark plug:50N~70N |
| Daming cable's resistance | Suppression 16 KΩ/M+30%; Wirewound0.5 KΩ~16 KΩ(discrentionary) |
| Insulation | No creepager under:30KV, 1H |
| Simulant ignition | No creepager and no crack under: 50Hz 29KV 30s |
| Terminal pull-off | ≥100N |
| Temperature range | -40ºC~+200ºC |
1) Pure Silicone ignition cable.
2) All kinds of colours.
3) Delivery time: 21 days.
4) Guarantee: 2 years.
5) The diameter of cable have: Φ 5mm, Φ 7mm, Φ 8mm, ≥ Φ 9mm, .
6) Shore-hardness is: 700degree(+5degree or -5 degree), .
7) Working temperature range: -40 celsius degree~+250 celsius degree,
8) Tensile strength: ≥ 180N
Our company are leading manufacturer of ignition cable set and specialize in making ignition cable, ignition cable set, spark plug wire, spark plug wire set, such as, GM, Ford, Peugeot, Land Rover, Jaguar, Lada, FIAT, Daewoo, KIA, Hyundai, Mazda, Honda, Nissan, Toyota, Mitsubishi, Suzuki, Paykan, Opel, VW, Benz, BMW, Skoda, Volvo, etc.
We are OEM manufactur and reliable aftermarket supplier for spark plug cable, spark plug wire set, ignition wire set, spark plug cables, our company have passed through ISO9001: 2000.
We are applying for certification of ISO/TS16949: 2002 Quality System certified by German Rhine Co, the certification of ISO/14001: 2000 & OHSAS18001: 1999 Quality system by SGS and E-MARK certification and US UL certification
| SUZUKI | HTAP323 | 33705-51G20 |
| SUZUKI | HTAP324 | 33705-60G20 |
| SUZUKI | HTAP325 | 33705-71C20 |
| SUZUKI | HTAP326 | 33705-66D00 |
| SUZUKI | HTAP327 | 33705-80G00 |
| SUZUKI | HTAP328 | 33705-86G00 |
| SUZUKI | HTAP329 | 33705-75F02 |
| SUZUKI | HTAP330 | 33705-75F03 |
| SUZUKI | HTAP331 | 33700-56B20 |
| SUZUKI | HTAP332 | 33700-58B21 |
| SUZUKI | HTAP333 | 33700-60A10 |
| SUZUKI | HTAP334 | 33700-60A20 |
| SUZUKI | HTAP335 | 33700-63810 |
| SUZUKI | HTAP336 | 33700-80010 |
| SUZUKI | HTAP337 | 33700-80011 |
| SUZUKI | HTAP338 | 33700-80012 |
| SUZUKI | HTAP339 | 33700-80810 |
| SUZUKI | HTAP340 | 33700-82010 |
| SUZUKI | HTAP341 | 33700-83030 |
| SUZUKI | HTAP342 | 33705-51G10 |
| SUZUKI | HTAP343 | 33705-63B10 |
| SUZUKI | HTAP344 | 33705-80040 |
| SUZUKI | HTAP345 | 33705-80C00 |
| SUZUKI | HTAP346 | 33705-80X51 |
| SUZUKI | HTAP347 | 33705-83020 |
| SUZUKI | HTAP348 | 33706-83X50 |
| SUZUKI | HTAP349 | 33710-80010 |
| SUZUKI | HTAP350 | 33700-78470 |
| SUZUKI | HTAP351 | 33700-82011 |
| SUZUKI | HTAP352 | 33700-84100 |
| SUZUKI | HTAP353 | 33705-60B10 |
| SUZUKI | HTAP354 | 33700-80010 |
| SUZUKI | HTAP355 | 33700-80011 |
| SUZUKI | HTAP356 | 33700-80012 |
| SUZUKI | HTAP357 | 33700-80810 |
| SUZUKI | HTAP358 | 33700-82010 |
| SUZUKI | HTAP359 | 33700-83030 |
| SUZUKI | HTAP360 | 33705-51G10 |
| SUZUKI | HTAP361 | 33705-63B10 |
| SUZUKI | HTAP362 | 33705-80040 |
| SUZUKI | HTAP363 | 33705-80X51 |
| SUZUKI | HTAP364 | 33705-83020 |
| SUZUKI | HTAP365 | 33706-83X50 |
| SUZUKI | HTAP366 | 33700-57B20 |
| SUZUKI | HTAP367 | 33705-51G20 |
| SUZUKI | HTAP368 | 33710-58B21 |
| Prod Model: |
Japanese car |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Anti-Heat: |
280 Centidegree |
| Anti-Voltage: |
45000V |
| Type: |
Distributorless Ignition System |
| Component: |
Ignition Wire |
| Certification: |
SGS |
Our company are the best and professional manufacturer of ignition cable set (spark plug wire).
We are OE manufacturer and reliable aftermarket supplier, our high performance ignition cables and ignition wire sets are made strictly according to ISO3808 standard.
We have applied for certification of ISO9001: 2000 and quality system by SGS for Ignition Cable, Ignition Cable Set, Ignition Wire Set, Ignition Lead Set, Spark Plug Wire Set, Spark Plug Cable Set, Ignition Cable Kit, Spark Plug Cable, Spark Plug Wire, Ignition Wire.
