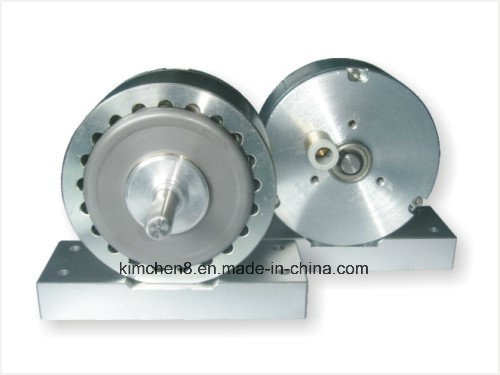

Hysteresis Brakes Ahb Series Compressed-Air-Cooled Hysteresis Brakes

Hysteresis Brakes Ahb Series Compressed-Air-Cooled Hysteresis Brakes
Price: US $ 250-800/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Product Description

 Hysteresis Brakes for Coil Winding Machinery(Magnetic brake)

    Standard Hysteresis Brakes produce torque strictly through a magnetic air gap without the use of magnetic particles or friction components. This method of braking provides far superior operating characteristics (smoother torque, longer life, superior repeatability, high degree of controllability, and less maintenance and down time) which make them the preferred choice for precise tension control during the processing of nearly any material, web or strand.

Structural Characteristics:
The hysteresis effect in magnetism is applied to torque control by the use of two basic componentsa reticulated pole structure and a specialty steel rotor/shaft assemblyfastened together but not in physical contact. Until the field coil is energized, the drag cup and shaft can spin freely on its bearings. When a magnetizing force from either a field coil or magnet is applied to the pole structure, the air gap becomes a flux field. The rotor is magnetically restrained, providing a braking action between the pole structure and rotor.














Prod Model: Hysteresis Brakes
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

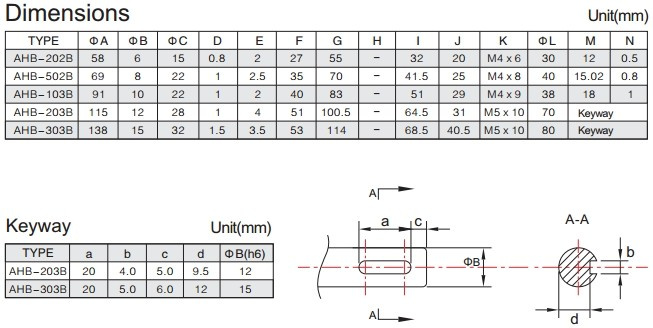

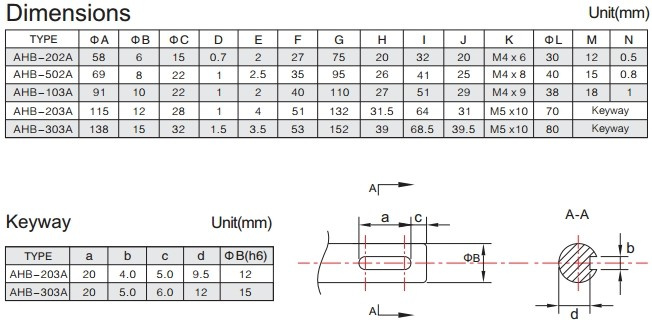

Size: as Our Catalogue
Weight: Depends on The Model
Working Temperature: 0~ 40 Centigrade
Operating Humidity: 30%~95%
Service Life: 10000h
Applicatio: Applied in Various Machine
Feature: High Speed and Long Service Life
Export Market: Global
Type: Brake System
Material: Steel
Position: Rear
KIM CHEN INDUSTRY INTL LIMITED was founded in 2001, It is located in Dongguan City.

We specialized in the manufacture and RD of the component which is used in coil of wire and tension systems, textile machinery and electrical industry Precision Ceramics, automatic lathe products, precision machining manufacturing and water jet technology. Our company has more than 100 employees, of which nearly 20 technical staff.

With a strong technical force, professional processing equipment, we devote ourselves and development of the component which is used in coil of wire. We have accumulated rich processing experience in the Deep-processing of the super-hard alloy, Crystal Gem and Precision Ceramic. Our technology is improving day by day...We can be tailored to customer specifications of the various nozzles. Various products have been widely used in various types of electronics, machinery, textile and other equipment, its excellent performance and the reliable quality has fully met the international standards; One of the parts of precision grinding technology and quality standards even more than the international peer level.

After a few years development of the coil winding tension system and the production of the two series of 10multiple specifications tensioner, after the listing of products, we gain customer recognition with an annual output-5, 000 sets. At the same time we are exploring the development of new industrial categories, through the introduction of advanced international machine tool equipment, we have a certain production scale in the field of automatic lathe products, therefore we have the ability to undertake all types of non-standard nut (column), posts and large quantities of shaft processing with the stable and reliable product quality.

We manufacture only No Lead Green Products to protect our environment in order to fulfill our moral responsibility as a member of this earth.

We always adhere to quality first, technology first, service first, customer first to pragmatic, scientific management, innovation and integrity, excellence, management philosophy. The company not only selling products all over the country and exported to Southeast Asia, the Middle East, Europe and more than 20 countries and regions. In the companys leadership and staff of the joint efforts of the rapid development of the gold honesty KIM CHEN INDUSTRY INTL LIMITED. Sincerely hope to strong technical advantage, advanced management, quality performance and perfect after-sales service and work closely with customers home and abroad hand in hand, create brilliant future!

Continuous Development and Conscious Operation is our long term goal. We hope to develop properous collaboration with you in the future.
