| Prod Model: |
Car Lift |
| Max Lifting Capacity: |
3500kg |
| Max.Lifting Height: |
1850mm |
| Entire Lifting(Dropping)Time: |
40-60sec |
| Power: |
3kw |
| Motor Speed: |
2870rounds/Minute |
| Output Of Oil Pump: |
2ml/Round |
| Set Pressure Of The Overflow Valve: |
130bar |
| Packing Details: |
as Your Requirement |
| Delivery Time: |
5-10 Days After Your Payment |
| Payment Terms: |
Tt, Western Union and Paypal |
| Type: |
Double Cylinder Hydraulic Lift |
| Lifting Capacity: |
≥5T |
| Certification: |
CE |
| Design: |
Two Post |
| Brand: |
China Coal |
Product Description
Brief Introduction of Hydraulic Single Post Underground Car LiftThe machine adopts low pressure oil driving,so it is simple,reliable and convenient in maintenance.
main unit of F Series Inground Lift is installed under the ground with only bracket arm above.
Lay the damaged car on the bracket arm and press the "UP" button.After the car is lifted to the proper height,repair can be started.After the repairing,press the"DOWN' button.When car was lowered to the ground with the bracket arm,drive it away.
Control cabinet is set on the ground for convenient operation.
Features:
The bore and piston of lifting cylinder use the high-quality alloy steel as the material with hard chromium coated,so it is quite durable.
The seal of cylinder is Parker,which is excellent in sealing property and long service life.
Pipeline explosion valve is equippied inside the cylinder.It can ensure the security when there are uncommon conditions on oil pressure pipeline.
The lifting columns of two post and multi post lifts are rigidly connected with synchronous beam(separated type),so it is excellent in synchronous performance and steady.
Equipped with mechanical pneumatic locks,it can stop in any position automatically to ensure safety.
Technical Parameters of Hydraulic Single Post Underground Car Lift | No | Parameter | Unit | Value |
| 1 | Max lifting capacity | kg | 3500 |
| 2 | Max.Lifting height | mm | 1850 |
| 3 | Entire Lifting(Dropping)Time | sec | 40-60 |
| 4 | Supply Voltage | V/HZ | AC220/380V/50HZ;
AC230/400V/50HZ |
| 5 | Power | KW | 3 |
| 6 | Motor Speed | rounds/minute | 2870 |
| 7 | Output of oil pump | ml/round | 2 |
| 8 | Set pressure of the overflow valve | bar | 130 |
| 9 | Solenoid valve pressure | V/HZ | AC220V/50HZ |
| 10 | Voltage of mechanical lock electromagnet | V/HZ | AC220V/50HZ |
| 11 | Sound level (measured at control console) | dBA | ≤75 |
| 12 | Main unit length | mm | 420 |
| 13 | Main unit width | mm | 420 |
| 14 | Main unit height | mm | 2270 |
| 15 | N.W | KG | 780 |

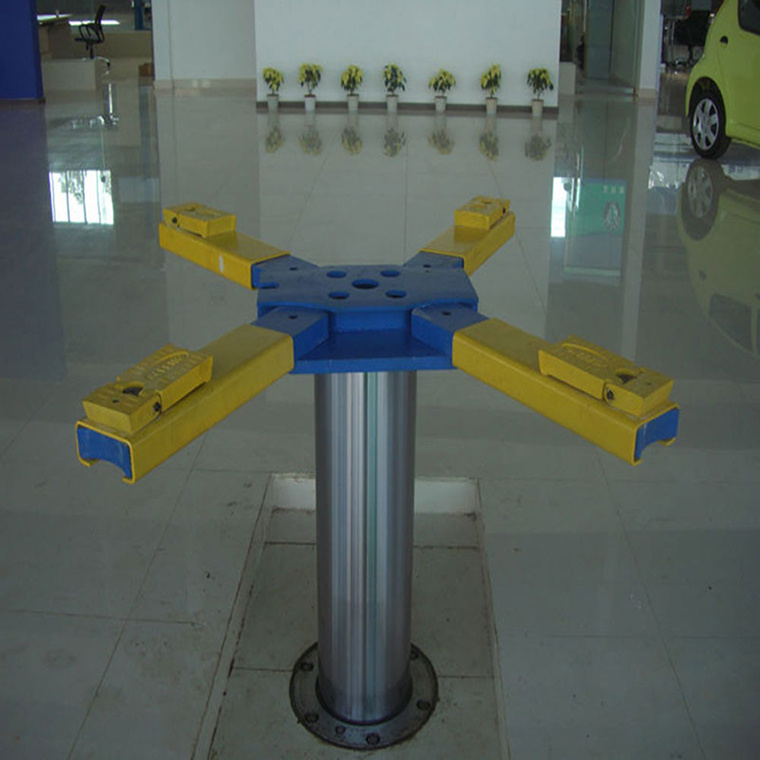

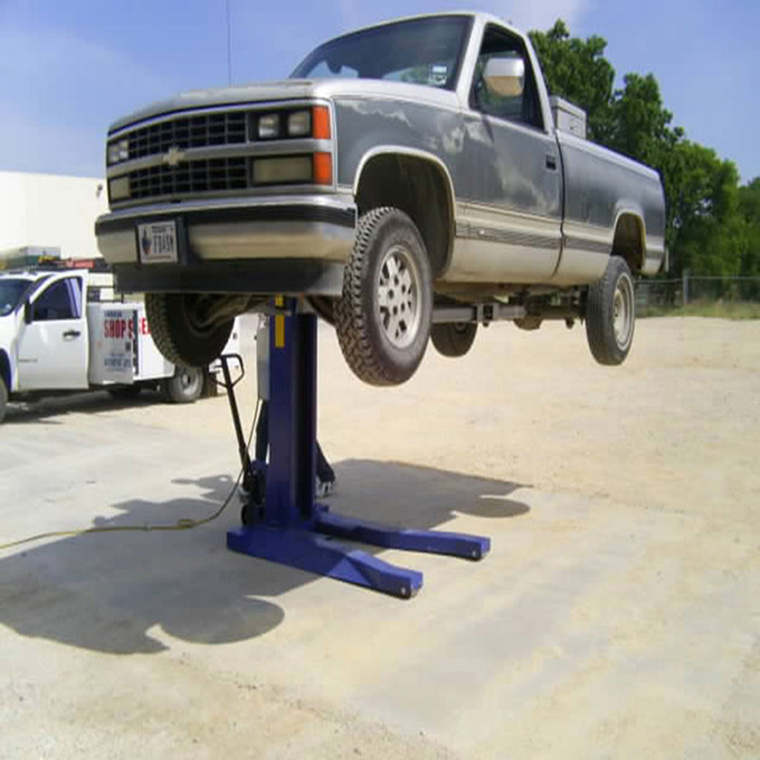

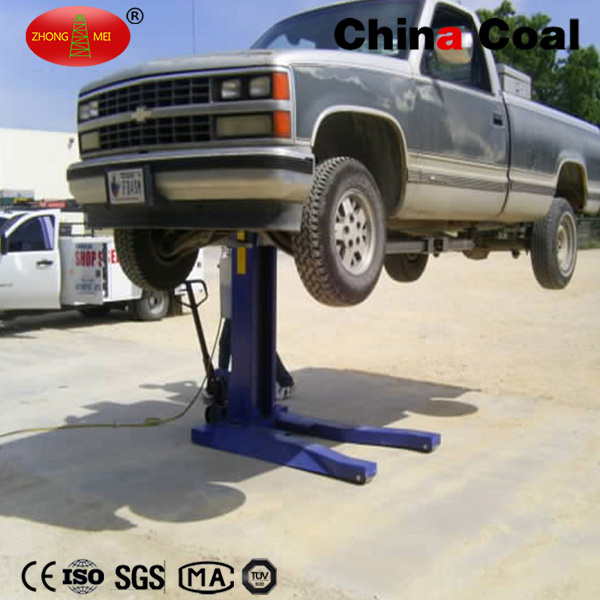

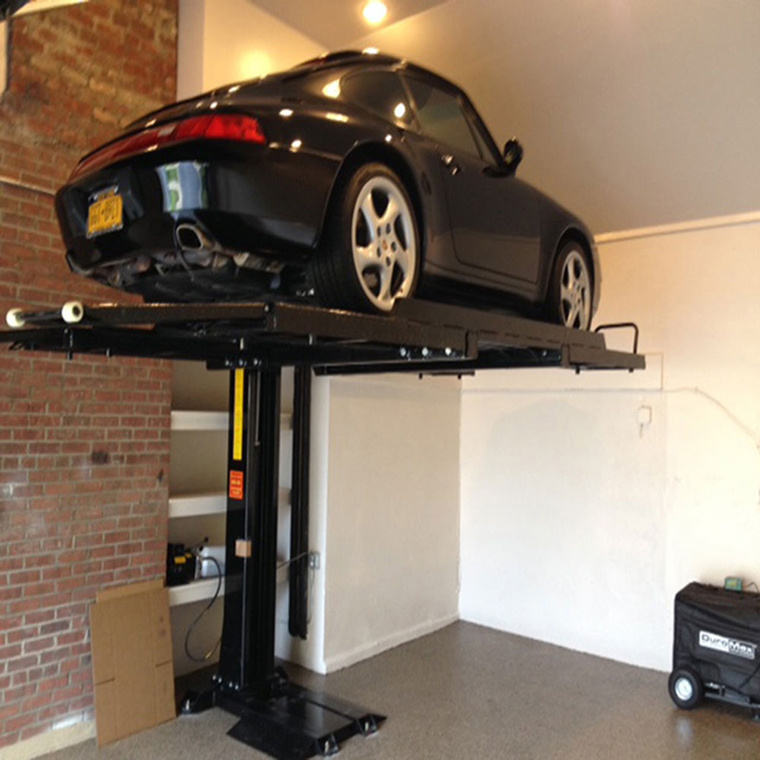

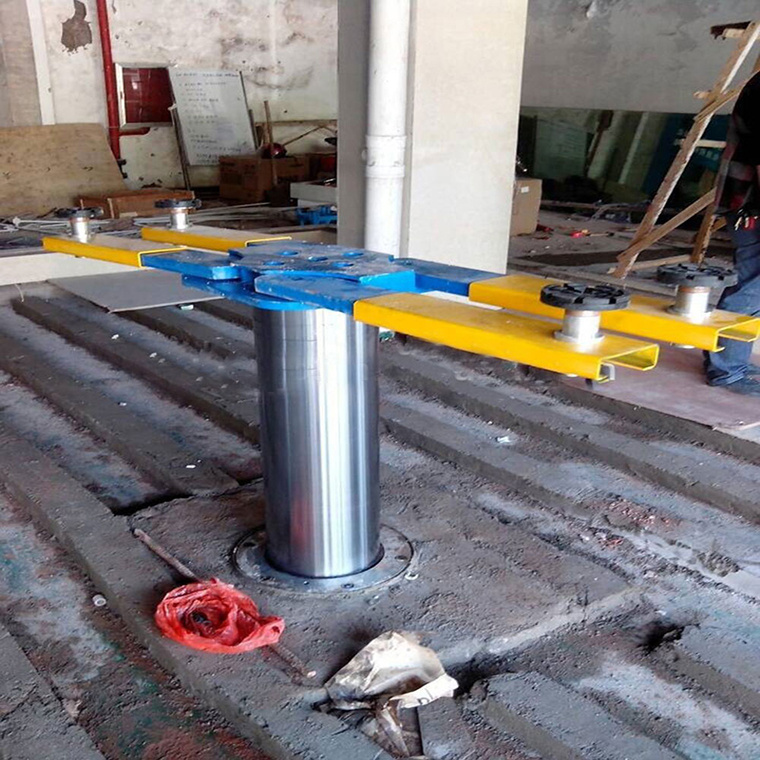

Photos of Hydraulic Single Post Underground Car Lift
