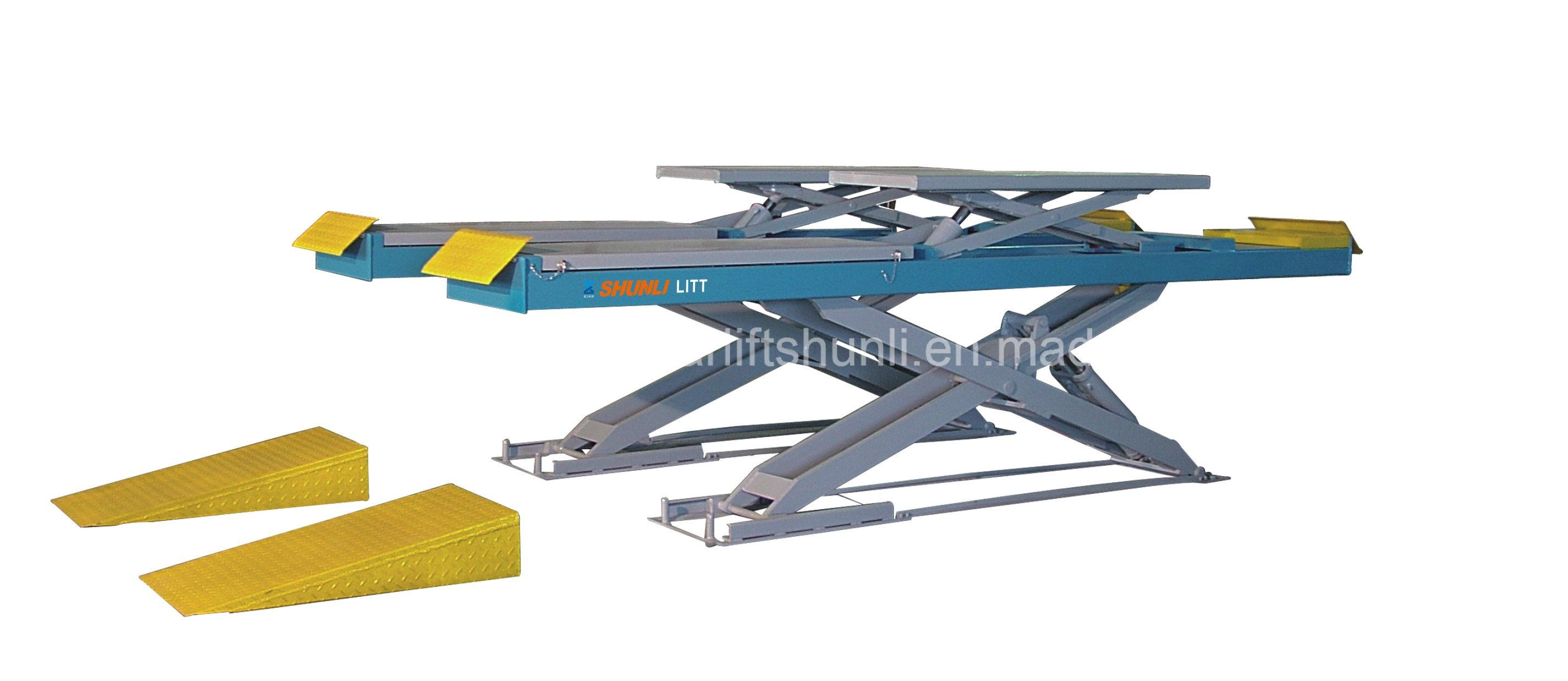

Hydraulic Scissor Lift (SHL-Y-J-35CBL)
| Price: |
US $ 4950/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
3/Set |
| Pay Type: |
L/C,T/T,Western Union |
Product Specification1. Two kinds of installation. Dig the pit or directly installation on the ground.
2. Oil cylinder built-in explosion-proof device.
3. Ultra-thin type structure, When it close the thickness only 205 mm, can be installed directly on the ground.
4. Scissor lift is designed to maximize your workshop and make easier to work all around being serviced vehicle without obstacles.
5. Super precision wheel alignment scissor lift, can double hidden design small space
Long side slide plate.
6. Stretch secondary lifting panel, suitable for different wheelbase models.
7. Automatically open the pneumatic rack insurance device when the lift down, super durable slide block.
8. Double hydraulic system, hydraulic and mechanical lock triple insurance device, machine double-stage pneumatic insurance device, suitable for different height requirements.
9. Main hydraulic parts imported from Japan, Germany, high-quality, stable, safe and reliable.
10. Step by step operation and installation manual shipped with each unit.
Technical Parameter
| Model | SHL-Y-J-35CBL |
| Lifting capacity: | 3500kg |
| Host lift lifting height: | 1810mm |
| Host lift platform length | 4300-4500mm |
| Host lift platform width: | 610mm |
| Second jack lifting Capacity | 3500kg |
| Second jack lifting height | 500mm |
| Second jack lifting length | 1540-1750mm |
| Second jack lifting width | 570mm |
| Motor | 2.2kw |
| Power | 220V, 380V |
| Air pressure | 0.4-0.6Mpa |
Our ExhibitionOur Service
| Prod Model: |
SHL-Y-J-35CBL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lifting Height (Main Machine): |
1810mm |
| Motor: |
2.2kw |
| Capacity Of Main Lift: |
3.5t |
| Installation Type: |
Dig The Pit or Directly Installation on The Ground |
| Power: |
220V or 380V, as Customer Request |
| Opitional: |
Italian Whole Set of Hydraulic |
| Type: |
Four Cylinder Hydraulic Lift |
| Certification: |
ISO |
| Design: |
Scissor |
| Lifting Capacity: |
3.5t, 3500kg |
| Brand: |
Shunli |
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
