Prod Model:	SJG3-3
Markets:	North America,South America,Eastern Europe,Oceania,Mid East,Western Europe
Lift System:	Hydraulic System
Structure:	Scissor Lift
Item:	Scissor Car Lift
Type:	Double Cylinder Hydraulic Lift
Lifting Capacity:	3T
Certification:	ISO
Design:	Scissor
Brand:	Sdlift

Product Description

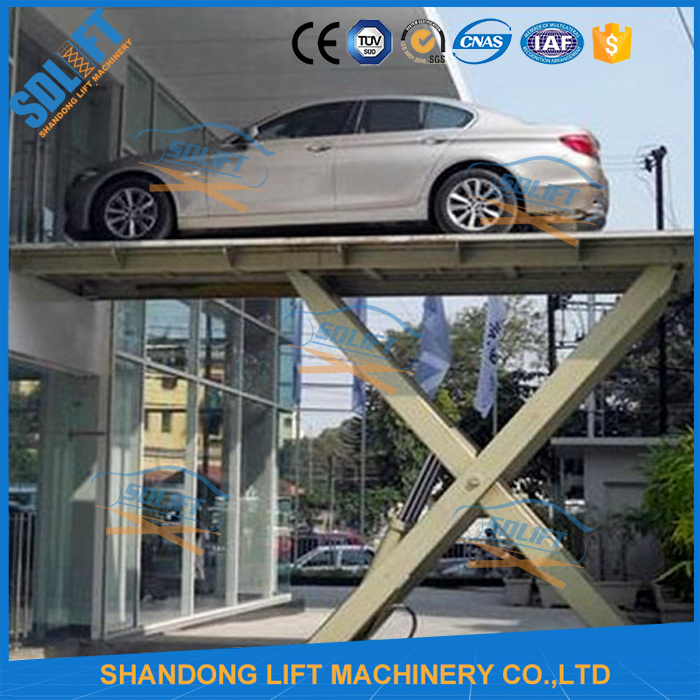

Hydraulic Auto parking systems

Product parameters:
1. Load capacity: 3000kgs
2. Table size: 5.2m*2.7m
3. Travel height: 3m
4. Structure: High-strength Mn steel material
5. Control system: 1 control box, 1 control panel
6. Power: 380v / or 220v / or 240v / or 400v
7. Safety device: Explosion-proof lock valve
8. Standard: CE, ISO9001

Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safe rails to guarantee safety of the car above platform
3) The limit switch system helps the car lift to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the Hydraulic Auto parking systems are passed 1.2 times loading test before leaving factory.

Application:
The Hydraulic Auto parking systems can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, or to second floor.
Custom-made product are made according to detailed request, please tell us load weight, lift height, and platform size, our engineer will design a suitable Hydraulic Auto parking systems for you soon.

The frequent models we supplied for our clients:

	LOAD CAPACITY	PLATFORM SIZE	LIFT HEIGHT	PIT DEPTH	POWER
SJG2.5-3	2.5T	5.2m x 2.6m	3m	750mm	220V, 240V, 380V or 400V
SJG2-6.5	2T	5.2m x 2.8m	6.5m	800mm	220V, 240V, 380V or 400V
SJG2.5-3.5	2.5T	5.2m x 2.6m	3.5m	800mm	220V, 240V, 380V or 400V
SJG2.5-5	2.5T	5.6m x 3m	5m	800mm	220V, 240V, 380V or 400V
SJG3-2.5	3T	5m x 2.3m	2.5m	750mm	220V, 240V, 380V or 400V
SJG3-3	3T	5.2m x 2.6m	3m	800mm	220V, 240V, 380V or 400V
SJG3-3.5	3T	5.6m x 2.7m	3.5m	800mm	220V, 240V, 380V or 400V
SJG5-10	5T	4.5m x 2.5m	10m	1150mm	220V, 240V, 380V or 400V
SJG8-2.5	8T	6.5m x 4.5m	2.5m	850mm	220V, 240V, 380V or 400V
SJG12-3	12T	5.5m x 2.8m	3m	950mm	220V, 240V, 380V or 400V
SJG15-4.5	15T	8m x 2.2m	4.5m	1150mm	220V, 240V, 380V or 400V
SJG20-5	20T	6m x 3m	5m	1200mm	220V, 240V, 380V or 400V
The hydraulic car lift can be customized as your detailed size.
