Prod Model: |
HY55V |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Turbine Shaft Material: |
K18 |
Gross Weight: |
30kg |
Bearing Housing: |
Water Cooled |
Engine Code: |
Cursor 13 |
Chra No.: |
4034048 |
Certification: |
ISO9001 |
Body Material: |
Iron |
Brand: |
Refone |
Application: |
Iveco |
Type: |
Turbocharger |
Product Description

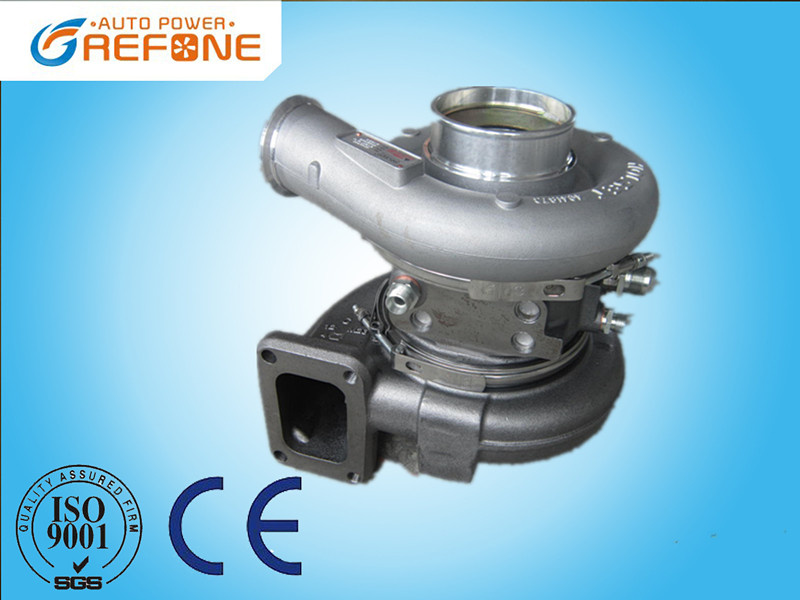

Δ HY55V 4046945 turbocharger specs
Part Number | 4046945 |
Previous Version | 3594712, 3594931, 3594932, 3595671, 3598515, 4036282, 4038389, 4042547, 4043267, 4043324, 4043325, 4046946, 4046947 |
OE number | 504252142, 504252144, 4031404 |
CHRA | 4034048 |
Turbo Model | HY55V |
Engine | CURSOR 13, Cursor 13 F3B Euro-3 |
KW | 338/460 |
Displacement | 12.90L, 12900 ccm |
Fuel | Diesel |
Angle α (compressor housing) | 55 |
Angle β (turbine housing) | 270 |
Turbine Wheel | 3590433 |
Comp. Wheel | 3592938 |
Valve Kit/Actuator | 4034014/3772495 |
Nozzle Ring Assembly) | 4046830 |
CHRA (Nozzle Ring) | 3537326 |
Repair Kit | 4031455 |
Turbine Housing | 4034017 |
Compressor Cover | 4034022/4038491 |
Turbine Housing AR | VGT |
Gasket | 4031455 |
Control speed sensor | 3596456 |
Speed Sensor | 4027556 |
Δ Application
2007- Iveco Truck with Cursor 13 Engine
2007- Iveco Truck Astra Engine with Cursor 13 F3B Euro-3 Engine
Δ What we do
Refone Auto Power Co., ltd is professional manufacturer and exporter of auto spare parts turbochargers, turbo parts&accessories and other engine pars.
Our team are excellent technical engineers and experienced sales. We work as designers, researchers, quality controllers and sales service
We are looking forward to build long business relationship with international friends.
Δ Why choose us
1.We have been in turbochager business for many years to meet the customer various reuqest of turbocharger and parts ,with the most competitive price & quality.
2.All turbocharger and cartridges balance tested by the "TURBO TECHNICS" imported from the UK.
3.Developing new turbo or parts according to customer's samples
4.Sample order accepted and we have warranty for official orders.
Model | Part number & Oem number | Application |
TD04 | 49135-05000 500321800 99450703 1S7Q6KK682BH | Iveco-Sofim Daily 2.8L TD 8140.43.3700 Euro 2 |
HX55 | 4041262 4044953 4044481 4043649 504179011 504213442 504198900 | 2006- Iveco Truck Cursor 9 |
HX35W | 3597180 3595279 4035408 504040250 | Iveco Eurocargo 150E28 EURO 3 |
K24 | 53249886405 4848601 99446021 2992392 | Iveco Truck Euro Cargo Ford Truck Euro Cargo Engine : 8040.45.4300 |
GT2256V | 751758-5001S 751758-0001 | Iveco Commercial Daily Engine : 8140.43K.4000 |
HX50W | 3596693 3594505 2836658 500390351 | 2001 Iveco Truck Eurotrakker (Cursor 13) |
GT1752H | 454061-5014S 454061-0014 500385898 | Iveco Daily / Naveco Daily Engine : 8140.23.3700 Euro-2 SOFIM |
K14 | 53149886445 53149886446 500321799 4500939 99450704 | Iveco-Sofim Commercial Daily 2.8TD Opel Movano 2.8L
Engine: 8140.23.3700 Euro2 |
TD04 | 49189-02912 49189-02911 504092197 8120179 | Iveco DAILY 3.0 16V ,engine:F1C Euro 3 |
HY55V | 4046943 3597277 4046944 504044516 504255233 504003367 2992105 | Iveco Truck CURSOR 10 |
HY55V | 4046945 4046946 3594712 3594931 | Iveco truck Cursor 13 |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
