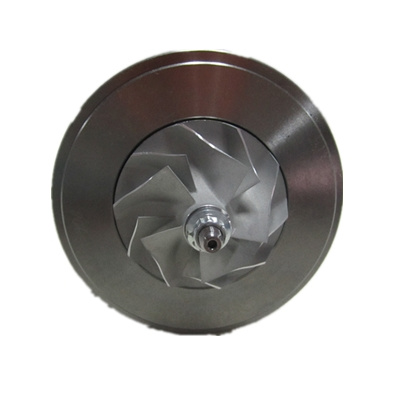

Ht12-7/Ht12-7A/Tb25 452162-5001s Turbocharger Cartridge for Td27tdi Engine

Prod Model:	HT12-7/HT12-7A/TB25
Fuel:	Diesel
Chra:	431876-0100 (431876-5100s)
Turbo OE Number:	144117f400, 14411-7f400
Displacement:	2.7L, 2664 CCM, 4 Cylinders
Engine:	Td27tdi
Kw:	129 HP
Type:	ETS Exhaust-Gas-Turbo-Super-Charger
Body Material:	Iron
Certification:	ISO9001
Brand:	Refone

Product Description

ΔHT12-7/HT12-7A/TB25 452162-5001S turbocharger cartridge for TD27TDI engine


Part Number	452162-5001S
Previous Version	452162-0001, 452162-1, 452162-0002, 452162-0007, 452162-5007S, 047-096, 047-271
OE Number	144117F400, 14411-7F400
Year	1993-07
Description	Terrano II TDIC
CHRA	431876-0100 (431876-5100S)
Turbo Model	HT12-7, HT12-7A, TB25
Engine	TD27TDI
Engine Manufacturer	Nissan
Displacement	2.7L, 2664 ccm , 4 Cylinders
RPM Max	3600
Fuel	Diesel
KW	129 HP
Angle α (compressor housing)	173
Angle β (turbine housing)	90
Bearing Housing	432351-0024/444360-0012
Turbine Wheel	431126-0002/435922-0001/432620-0002/435257-0002/435737-0005 (1100025436) (Ind. 52.8 mm, Exd. 41.9 mm, 11 Blades)
Comp. Wheel	446335-0012 (Ind. 54. mm, Exd. 35.9 mm, Trm 45, 5 Blades)
Back plate	432280-0001/430735-0001 (1100025300)
Heat shield Number	443594-0001 (1100025341)
Repair Kit	709143-0001 (1100025761)
Turbine Housing	436070-0001
Compressor Cover	436069-0002
Turbine Housing AR	0.49
Actuator	433143-0004
Settings Waste gate (pressure)	0.890-0.940 bar
Settings Waste gate (lift shaft)	0.38 mm
Gasket (turbine inlet)	210218
Gasket (turbine outlet)	210270
Gasket (oil outlet)	413709-0001
Manufacturer	Honeywell-Garrett

Applications
1993-07 Nissan Terrano II TDIC with TD27TDI Engine
1997- Ford Maverick with TD27TDI Engine

Δ Why choose us

1) The products have passed the balancing test and the high speed GHRA balancing test

2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.

3) The clients can have their own forwarders to ship the products to the destination

4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable

5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive



Δ Our service

1. Quality Warranty: 12 months for official orders

2. Developing all turbo or turbo parts according to customer's samples

3. Quick delievery and reliable aftersale support
