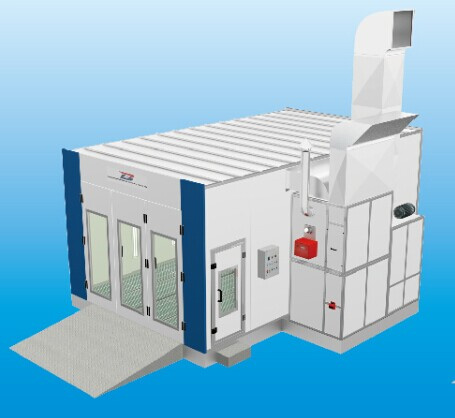

BZB-8200C Spray Booth(Poland Standard)
Name: Spray Booth
Model: BZB-8200C
Specification:
Inside Size(mm): 6900×4000×2650
Outside Size(mm): 7000×5360×3430
Front Door(mm): 3000(W)×2600(H)
Total Power(kw): 10kw
Cabin System

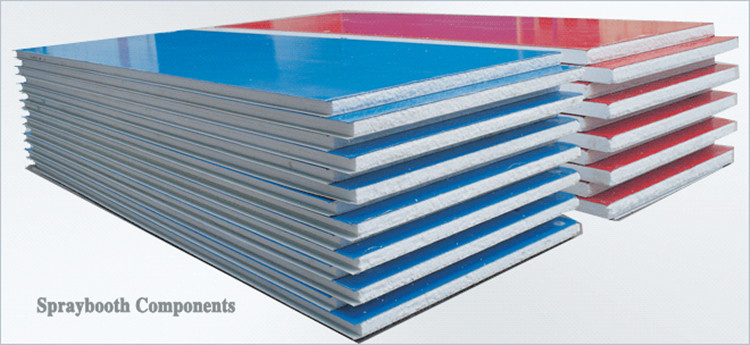

1) Wall panel: EPS colorful 0.426mm steel skin panel, 50mm thick, tongue & groove style, compound construction, aluminum-alloy frame, anti-flame and heat-insulation.
2) Roof panel: galvanized steel.
3) Basement: Galvanized steel sheet and square steel pipe assembling, Full grid, Three Ramps made of embossed plate, 2000(L)*900(W)mm.
4) Front Door: 3 folded glass door.
5) Glass: Main door and emergency door glasses are toughened glass.
Air Circulation System
1) Inlet Fan Model: YDW Series Fan; 3kw, Capacity: 21400m3/h, 2 sets.
2) Outlet Fan Model: DKF Series Fan; 5.5kw, Capacity: 20576m3/h, 1 set.
3) Load Air Speed: 0.35m/s; Air recycling times: 280 times/h. All motors are CE motor.
4) The circulation system covers a set of automatic damper and 1 set of manual damper, Manual adjustment valves are placed in inhaling and exhaust duct to control airflow volume and adjust pressure.
Air Purification system

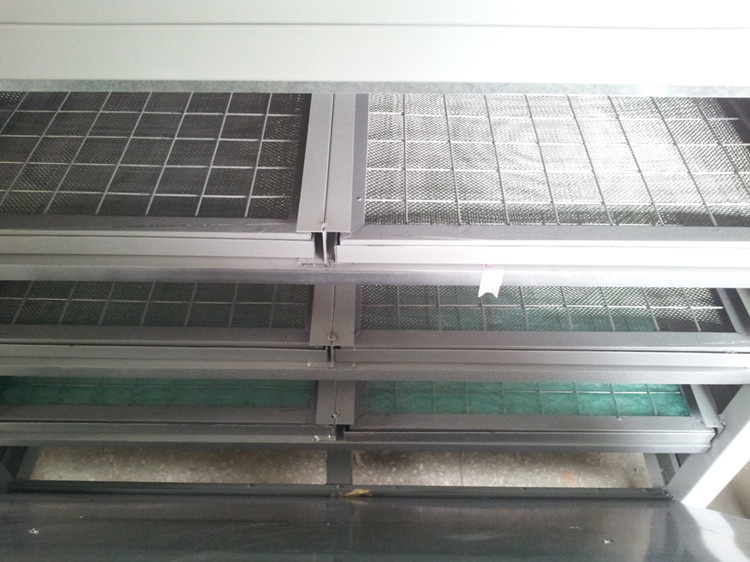

Dual filtering structure, the primary filter can capture granules larger than 10 μm. ceiling filter can capture granules bigger than 4μm. the whole purification system has capacity of large volume of dust. Its filtering rate reaches 98%. air pressure balance gauge, TSP≤1.4mg/m3.
Heating System
Italy Riello G20 diesel burner, heating capacity 180000Kcal/h, 10N Switzerland original electric damper motor can automatically achieve from spraying to baking cycle.
SUS304 stainless steel 1.5mm thick heat exchanger, argon arc welding, matching explosion-proof vent.
Max temp: 80°C, heating time: 6-8min(20-60°C), fuel consumption: 6-8kg/vehicle.
Lighting System
Ceiling Light: 8sets*4pcs=32pcs 36w Philips Lamp; bottom light: 16 pcs 36w Philips lamp, 1000 Lux. Ballasts Professional and durable.
Controlling System
Micro-Computer Programme Controlling, main circuit has multi-protection. Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, temperature limit controller, emergency stop, breakdown alarm.(All electrical are suitable for CE Standard.)
Environmental System
Multi-layers fiberglass filter and active carbon.
Jingzhongjing Industrial Painting Equipment. Co., Ltd is a professional painting equipment manufacturer. We manufacture coating equipments for cars, buses, trucks, plane and other vehicles.
For more detailed information, please feel free to send us inquiries.
We can manufacture the good quality car baking oven according to your detailed requirements. Please feel free to send us inquiries, from BZB spray booth factory.
Cheap paint booth with solid structure and long life span, meeting your requirements of good painting work.

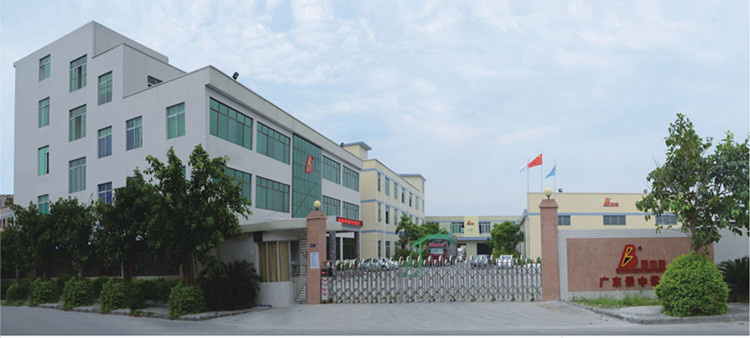

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.
Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.
It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
