| Prod Model: |
SY-299E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
as Require |
| Type: |
Flatbed-type |
| Max. Lifting Capacity: |
3.5T |
| Certification: |
CE |
| Condition: |
New |
Product Description

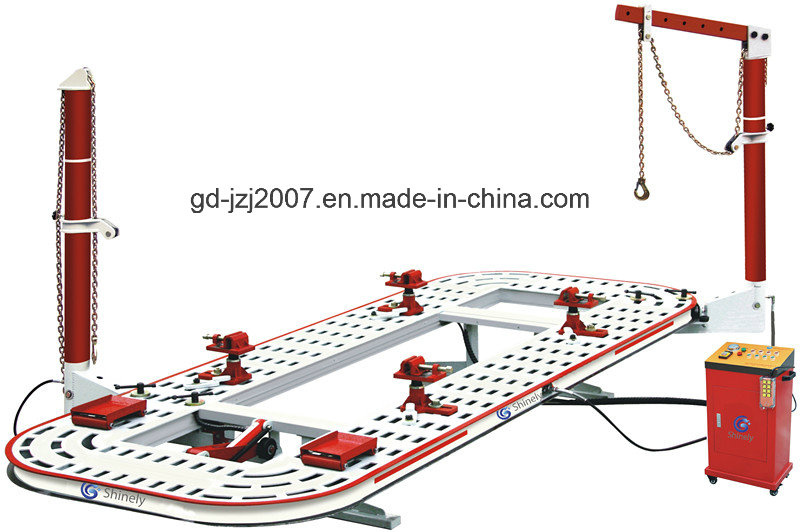

SY-299E is flat plate and square hole working platform designed as per repair requirement of a variety of models at home and abroad, which improved in welding technology, choosing material, equipment parameters and stress intensity, etc. Precise, faster, non-working blind, be in accord with the technician habit, high grade configuration and more convenience for operation. It is particularly suitable for all kinds of import cars, commercial vehicle and SUV which need intensive stretching.
| SPECIFICATION | SY-299E |
| Length | 5600MM |
| WIDTH | 2112MM |
| HEIGHT | 520MM |
| PULLING CAPACITY | 95KN |
| RATED VOLTAGE | 220/380V |
| AIR SUPPLY REQUIRED | 0.8MPA |
| RADIUS OF PULLING | 360° |
| MAX LOAD | 3500KG |
UL-299E auto collision repair equipment, referenced and absorbed North American's advanced technology, integrated many experiences in auto collision repairing, mixed a number of patented technologies, the newest car type design technique and safety design technique of European and American several big automotive companies. It is an innovated product in the current market. With an integrated computer electronic cabinet control system, tilt lifting platform is operated by a remote control device. Three triple output oil system makes lifting, unlocking, dropping and locking possible through a key. Full automation, technological innovation, humanized design, practical working philosophy. Main functions as flowing:
·The platform is flat plate and square hole working platform which is firstly designed and researched in domestic by ourselves. It conforms to operating requirement, usage and security of technician at home and abroad. Working platform adopts excellent quality 14# GB I-beam, CNC plasma cutting, Panasonic CO2 welding, shot-blasting machine to descale and welding slag and electrostatic painting which ensured the requirement of using intensity, rusting prevention and appearance and so on.
·Tilt hydraulic lifting platform makes the accidental vehicle loaded and unloaded more convenient(even drive the car onto the platform directly).
·The pulling towers can work along the track for 360° rotation, operated more convenient. The pulling towers pull strong each other and highly active, and the material is made of the 10mm wall thickness seamless pipe.
·The jaw of main clamps, spiral movements, in the jaw to maintain the level of state, the upper and lower pole vertically movements, fine-tuning the level of all kinds of different vehicle chassis height of rapid adjustment.
· The function of leading arm: provide stretching for any point and any directions during the collision repair process, provide powerful up stretching.
·High Precision alloy measuring system, it is made of special aluminum. It can make three-dimensional coordinate measure, so that make the car body size is same as the original car.
·Allocate one centralized electric control cabinet. Remote control: A key in hand, operate freely.
·Remote controller: Make the platform lift, please press "up" key; make the platform down, please press the "down" key. When you need the tower up and down stretching, please press "tower one" key or "tower two" key.
·The global data synchronization by Mitchell and the major automotive companies provide and maintain the latest data models.
·Perfect service system, completely relieve your worries
.
| SY-299E Configuration list |
| No. | Model No. | Quantity(set) | Remark |
| I | SY-299E | 1 | |
| |
| 1) | Fix leg | 1 |
| 2) | Flexible leg | 1 |
| 3) | Tilt lifting holder(oil cylinder included) | 1 |
| 4) | ramps | 2 |
| II | 360° rotation Pulling towers | 2 |
| 1) | Push rod of cylinder | 2 |
| 2) | Bolts for fixing towers | 4 |
| 3) | Bolt plates for fixing towers | 4 |
| 4) | Nut for fixing towers | 4 |
| 5) | in-built adjustable collars | 2 |
| 6) | 3.5m Main chain(with chain hook) | 2 |
| 7) | Protective wire | 2 |
| 8) | 10T high pressure cylinder | 2 |
| 9) | Leading arm,U-shape shelf,chain wheel | 1 |
| III | Tiger style main clamp | 4 |
| 1) | Clamp basement(M12 bolts) | 4 |
| 2) | Clamp Screws | 4 |
| 3) | Bolts, plates, nuts for fixing jaws main clamp | 4 |
| IV | Wheel dolly | 2 |
| V | Two-dimensional measurement system | 1 |
| VI | Centralized control cabinet(oil pipe included) | 1 |
| VII | Tools board(Pothook) | 1 |
| 1) | Pothooks | 20 |
| VIII | Pulling Clamping Accessories | |
| 1) | Chains (1.2m) | 2 |
| 2) | Small clamp | 1 |
| 3) | Mini clamp | 1 |
| 4) | wide clamp | 1 |
| 5) | C-clamp | 1 |
| 6) | right angle clamp | 1 |
| 7) | Scissor clamp | 1 |
| 8) | Hand clamp | 1 |
| 9) | strut puller kit | 1 |
| 10) | Big hook(1-3) | 1 |
| 11) | Deep hook | 1 |
| 12) | Slotted Chain Anchor | 2 |
| 13) | Multi hole pull plates | 1 |
| 14) | nylon sling | 1 |
| 15) | Steel wire | 1 |
| 16) | Handy link | 1 |
| 17) | Crescent spanner | 1 |
| 18) | Double Chain Hook | 1 |
| 19) | Down-pulling Device | 1 |
| 20) | Use of winch | 1 |
| 21) | Wheel bracket | 2 |
| IX | Operating manual | 1 |
| | | | | |
Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.
Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.
It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
