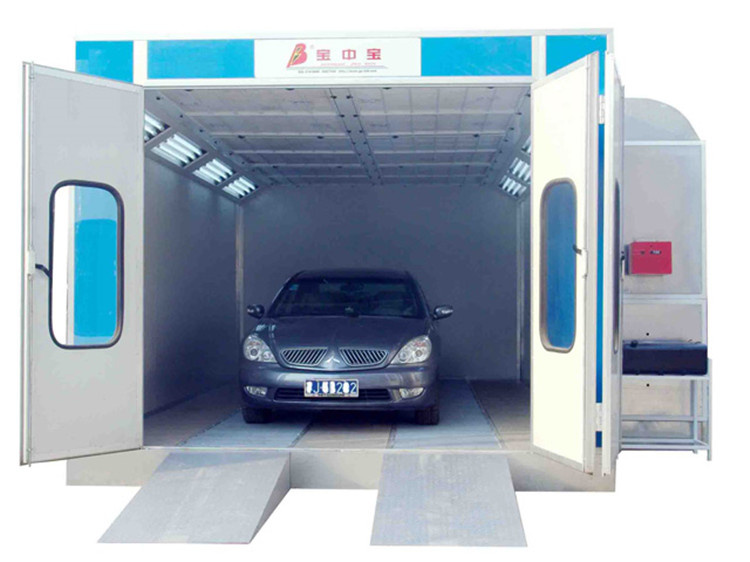

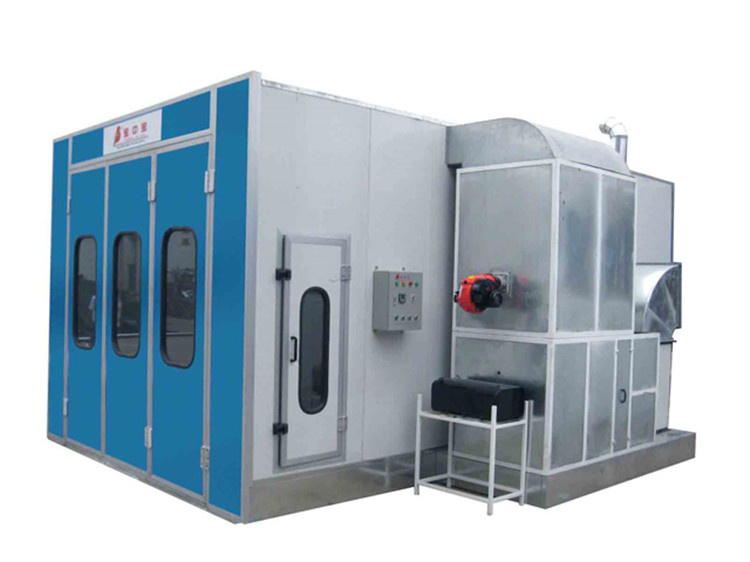

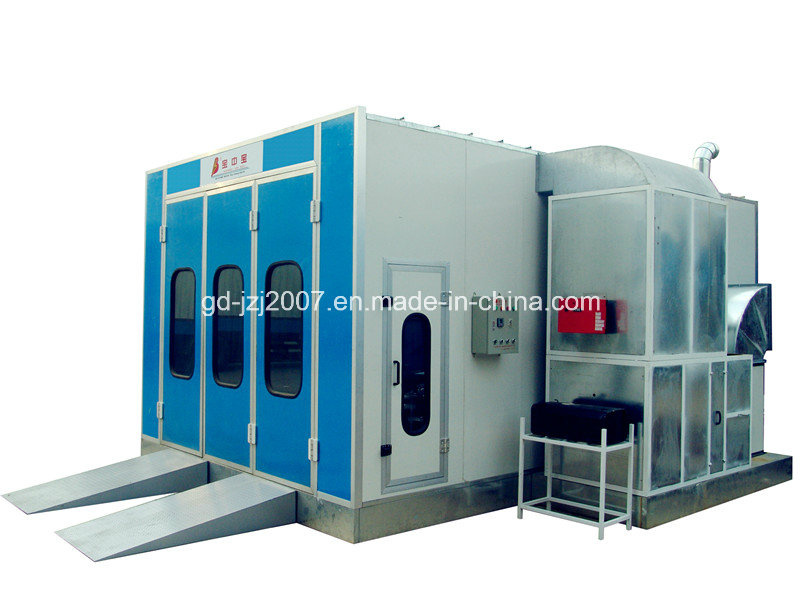

Hot Sale Economical Car Paint Booth

Name: Hot Sale Economical Car Paint Booth
Brand: ibuyautoparts.com
SKU: 699144315
Availability: InStock
Rating: 4.5 (58 reviews)

Price:	US $ 5500-6500/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZB-8100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

Economical car paint booth, BZB spray booth factory is professional in manufacturing all types of car spray booth, car paint ovens. The below is a cheap spray booth suitable for all kinds of garage shops.
Please do not hesitate to contact with us for more information.

Model	BZB-8100
Outside Size(mm):	700053503430
Inside Size(mm):	690040002650
Front Door(mm):	3000(W)*2600(H)
Total Power:	7.5kw

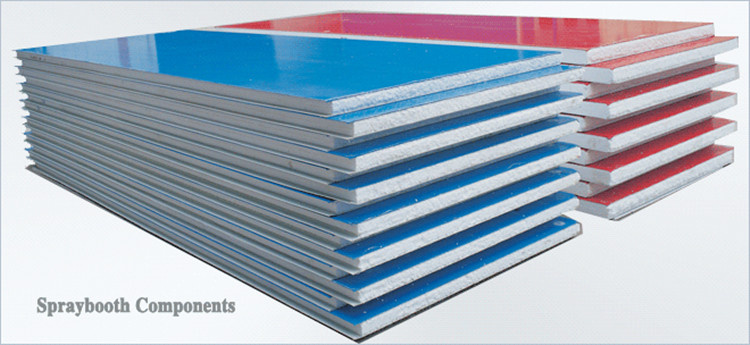

Cabin System	Wallboard	EPS colorful steel skin board, wall panel: 50mm thick, tongue & groove style compound construction, anti-flame and heat- insulation, galvanized steel roof panel
	Basement:	galvanized steel sheet and square steel pipe assembling, grid & embossed plate
Circulation System	Inlet fan	Capacity: 22000m 3 /h
		Pressure: 815 Pa
		Power: 5.5kw
		Quantity: 1 sets
	Air volume: 24000m 3 /h; air speed: 0.35m/s, air recycling times: 280times/hour
Purification System	dual filtering structure, the primary filter can capture granules larger than 10 μ m. ceiling filter can capture granules bigger than 4μ m. the whole purification system has capacity of large volume of dust. Its filtering rate reaches 98%. air pressure balance gauge, TSP≤ 1.2mg/m 3
Lighting System	ceiling Light: 32pcs 36w Philips lamp; 800 Lux
Controlling System	spray switch, light switch, emergency stop, breakdown alarm

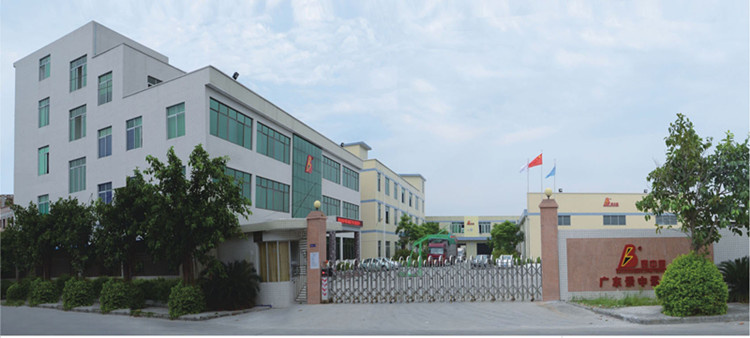

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
