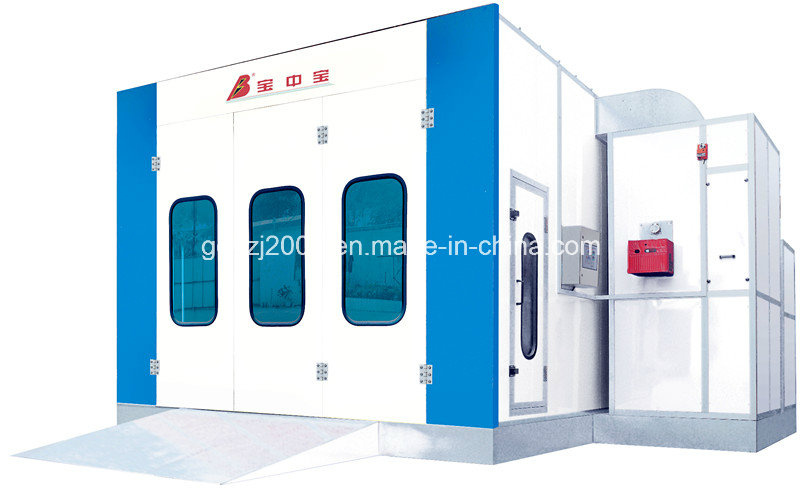

BZB-8300 car paint BOOTH
Outside Size: (mm) 7000x5560x3430
Front Door: (mm) 3000(w)x2700(h)
Inside Size: (mm) 6900x4000x2800
Total Power: (km) 10.5
Cabin System
Wallboard EPS (epispastics polystyrene)Colorful Steel Skin Boards, 50mm Thick, Compound Construction, Anti-flame and Heat-Insulation, Handiwork Door, Galvanized Steel Roof Panel
Basement: Two Grid& Three Embossed Plate, Galvanized Steel Sheet Construction, Two Ramps, Air Circulation System
Inlet Fan Capacity: 12000m³ /h
Power: 4kw/set
Quantity: 2set Air Volume: 24000m³ /h; Air Speed: 0.35m/s
Air Purification system, Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. TSP≤1.4mg/m³
Heating System
Burner Italy Riello Brand, G20 Diesel Burner, 180000Kcal/h.
Heat Energy Converter Stainless Steel, Argon Arc Welding. The Heat Exchange Rate 85%
Max Temp: 80º C, Heating Time: 5-7min, Fuel Consumption: 4-6kg/vehicle, 10N Damp Motor Lighting System
Ceiling Light: 24 PCS 36w Philips Lamp; Bottom Light: 16 PCS 36w Philips Lamp, 900 Lux Electric Controlling System
Micro Computer Programe Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
| Outside Size:(mm) | 7000χ5560χ3430 | Front Door:(mm) | 3000(w)χ2700(h) |
| Inside Size:(mm) | 6900χ4000χ2800 | Total Power:(km) | 10.5 |
| Cabin System | Wallboard | EPS (epispastics polystyrene)Colorful Steel Skin Boards, 50mm Thick, Compound Construction, Anti-flame and Heat-Insulation,Handiwork Door,Galvanized Steel Roof Panel |
| Basement: | Two Grid& Three Embossed Plate, Galvanized Steel Sheet Construction, Two Ramps, |
| Air Circulation System | Inlet Fan | Capacity: 12000m³/h | Power: 4kw/set | Quantity: 2set |
| Air Volume: 24000m³/h; Air Speed: 0.35m /s |
| Air Purification system | Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μ m. Ceiling Filter Capture Granules Bigger than 5 μ m. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. TSP ≤ 1.4mg/m³ |
| Heating System | Burner | Italy Riello Brand, G20 Diesel Burner, 180000Kcal/h. |
| Heat Energy Converter | Stainless Steel, Argon Arc Welding. The Heat Exchange Rate 85% |
| Max Temp: 80 °C , Heating Time: 5-7min, Fuel Consumption: 4 -6kg /vehicle,10N Damp Motor |
| Lighting System | Ceiling Light: 24 pcs 36w Philips Lamp; Bottom Light: 16 pcs 36w Philips Lamp, 900 Lux |
| Electric Controlling System | Micro Computer Programe Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm |
Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.
Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.
It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
