Name: Hot Sale Auto Car Trcuk Lifter
Brand: ibuyautoparts.com
SKU: 690418922
Availability: InStock
Rating: 4.7 (37 reviews)

Price:	Negotiableset
Trade Terms:	FOB
Min Order:	1set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

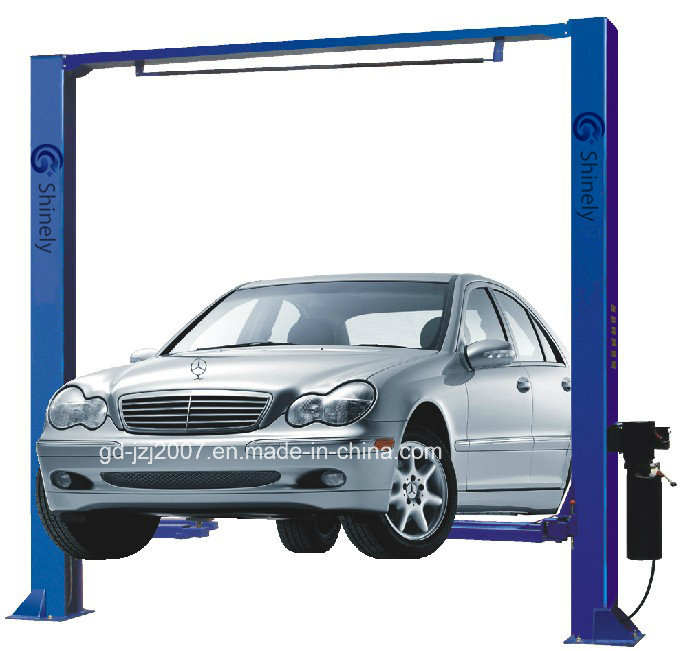

G235D two post gantry lift
Features:
Clear floor design makes under-vehicle service more convenient

Two sides manual safety lock release system

Multi-voltage power supply is available for convenient use

Japanese and American hydraulic seals ensured the tightness of oil cylinder

Asymmetric design, the width of 2850mm allows much wider vehicles

Economical but reliable cast-iron cover motor, Optional aluminum motor

Optional imported pumping device
Technical data

Lifting capacity	7714lbs/3500kg
Lifting height	71"/1800mm
Lifting time	50seconds
Overall height	146"/3716mm
Overall width	138"/3500mm
Width between columns	112"/2850mm
Motor voltage	220V or 380V
Frequency	50Hz or 60Hz
Phase	1ph or 3ph
Net weight	1439lbs/653kg

Prod Model:	G235D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Type:	Double Cylinder Hydraulic Lift
Lifting Capacity:	3.5T
Certification:	CE
Design:	Two Post
Brand:	Bzb

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
