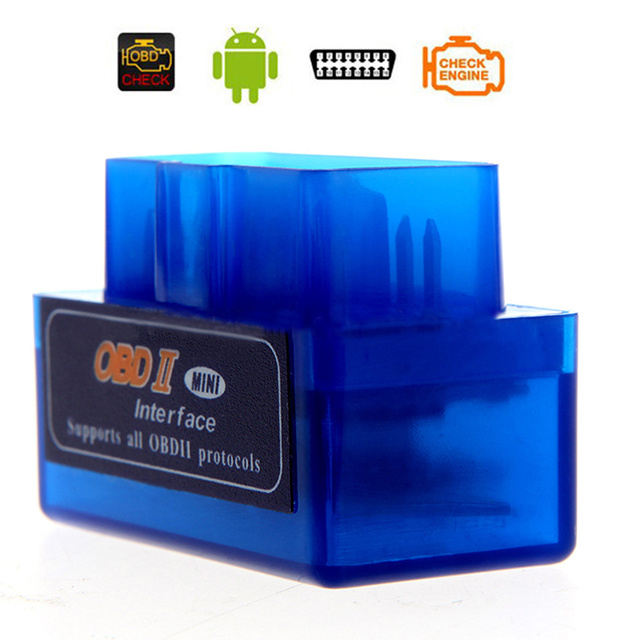

Hongjun Diagnostic Tool Mini OBD2 Bluetooth Elm 327 Auto Car Scanner
Product Function:
1) Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2) Clear trouble codes and turn off the MIL ("Check Engine" light)
3) Display current sensor data, including:
4) Engine RPM
5) Calculated Load Value
6) Coolant Temperature
7) Fuel System Status
8) Vehicle Speed
9) Short Term Fuel Trim
10) Long Term Fuel Trim
11) Intake Manifold Pressure
12) Timing Advance
13) Intake Air Temperature
14) Air Flow Rate
15) Absolute Throttle Position
16) Oxygen sensor voltages/associated short term fuel trims
17) Fuel System status
18) Fuel Pressure
Specifications:
Type: code readers & scan tools
Output protocol: bluetooth
Color: blue
Material : plastic
Voltage: 12V
Current: 45mA
Wave frequency: 38400Hz
Applicable scope: 5-10m/ 16.4-32.8ft
Item size: 4.7 * 2.3 * 3.1cm/ 1.8 * 0.9 * 1.2in
Item weight: 21g/ 0.7oz
Total weight: 34g/ 1.2oz
Packing List:
1 * OBD2 bluetooth scanner interface
1 * CD-ROM
Protocols Supported:
1) ISO9141-2(5 baud init,10.4Kbaud)
2) ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
3) ISO14230-4 KWP (fast init, 10.4 Kbaud)
4) ISO15765-4 CAN (11bit ID, 500 Kbaud)
5) ISO15765-4 CAN (29bit ID, 500 Kbaud)
6) ISO15765-4 CAN (11bit ID, 250 Kbaud)
7) ISO15765-4 CAN (29bit ID, 250 Kbaud)
-SAE J1939 CAN (29bit ID, 250*Kbaud)
-USER1 CAN (11*bit ID, 125*Kbaud)
-USER2 CAN (11*bit ID, 50*kbaud)
* *default settings (user adjustable)
1) Works with all OBD-II compliant vehicles
2) Wireless (Bluetooth) 5~10meters
3) Software included for Palm, PDA, Mobile
4) Software included for Windows PC
5) Software included for Windows Smartphone
