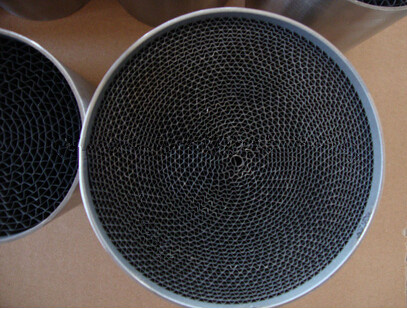

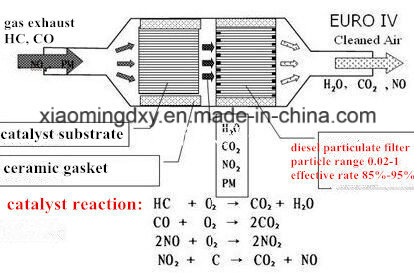

Metal Honeycomb Substrate Introduction:Metallic substrate is with the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike. Automobile exhaust gases are conventionally purified with a catalyst supported on a ceramic body able to withstand high temperatures. The preferred catalyst support structure is a honeycomb configuration which includes a multiplicity of unobstructed parallel channels sized to permit gas flow and bounded by thin ceramic walls. The walls of these channels provide the surface for precious-metal catalysts that convert noxious emissions into carbon dioxide, nitrogen and water vapor. We can provide honeycomb ceramic substrate has been coated and non-coated precious-metal.
Catalyst Type: Complex catalyst of noble metal (Pt, Pd, Rh) plus rare earth complex catalyst
Catalytic Substrate: Metal substrate and honeycomb ceramic substrate
Fantastic coating fastness and stably and long-term catalyst ability
Advanced technic of substrates making and canning, ensuring depandable resistance heat shocks and stability of equipment
Various kinds of specifications and types, customized products as per clients specific requirement and technology data
Major technical parameters:Substrate: Metal honeycomb substrate (Fe-Cr-Al alloy)
Light-off temperature: CO≤ 200° C, HC≤ 200° C, NOX≤ 200° C
Coating losing rate: ≤ 3%
Conversion rate: CO≥ 90%, HC≥ 90%, NOX≥ 80%
Applications:*Round & Ovel metallic substrate for On-road vehicle
*Metallic substrate for small engine
*Metallic substrate for Off-road vehicle
*Metallic substrate for industrial catalyst
*Specific structure metallic substrate for other application
Features:*High quality of 409 stainless steel shell(ss304 is also avaialbe)
*400cell/sqt(300cells, 600cells, 800 cells are also available)
*Inside catalyst (Pt, Pd, Rh+rare earth) coating on honey combed metal substrate
*Reduce hamful emmision( CO, CH, NOx) from motor vehcle more than 97%
*Meet Euro3 emmision standard, and warranty life is 3year/80000 kms
Parameters | Unit | standard | typical data |
Cordierite crystal phase | wt% | ≥ 90 | 94 |
Coefficient of Thermal Expansion20-800 ° C | cm/cm/ ° C | ≤ 1.8 × 10 -6 | ≤ 1.5 × 10 -6 |
Thermal Stability20-650 ° C | times | ≥ 1 | 3 |
Soften Temperature | ° C | ≥ 1420 | 1440 |
Compression Strength | Lengthways | MPa | 16 | 16.9 |
Horizontal | MPa | 5 | 6.2 |
Specific Weight | Kg/L | 0.45-0.55 | 0.45-0.5 |
Porosity | % | 40-45 | 41 |
Water-absorbing rate | % | 23-25 | 23.8 |

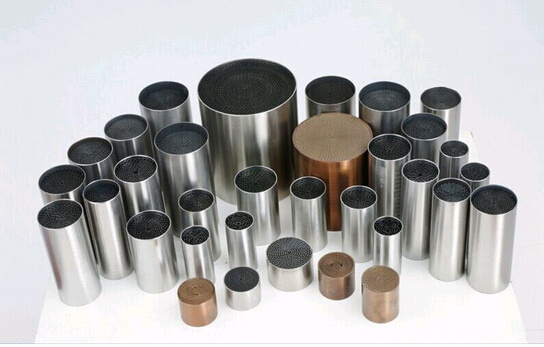

Shape | Hole density (hole/in 2 ) | Size (mm) | Size (inch) |
Round | 300 CPSI | Φ 101.6 x152.4 | 4 × 6 |
Round | 300 CPSI | Φ 118.4 x100 | 4.66 × 3.94 |
Round | 300 CPSI | Φ 118.4 x152.4 | 4.66 × 6 |
Round | 300 CPSI | Φ 150 x100 | 5.9 × 3.94 |
Round | 300 CPSI | Φ 170 x100 | 6.69 × 3.94 |
Round | 300 CPSI | Φ 190 x100 | 7.48 × 3.94 |
Round | 300 CPSI | Φ 210 x130 | 8.26 × 5.12 |
Round | 300 CPSI | Φ 240 x76.2 | 9.45 × 3 |
Round | 300 CPSI | Φ 240 x100 | 9.45 × 3.94 |
Oval | 300 CPSI | Φ 120.6 x 80 x 152.4 | 4.75 × 3.15 × 6 |
Oval | 300 CPSI | Φ 144.8 x 81.3 x 152.4 | 5.7 × 3.2 × 6 |
Oval | 300 CPSI | Φ 169.7 x 80.8 x 115 | 6.68 × 3.18 × 4.52 |
Round | 400 CPSI | Φ 150 x100 | 5.9 × 3.94 |
Round | 400 CPSI | Φ 144 x 152.4 | 5.66 × 6 |
Round | 400 CPSI | Φ 118.4 x 152.4 | 4.66 × 6 |
Round | 400 CPSI | Φ 115.4 x 152.4 | 4.54 × 6 |
Round | 400 CPSI | Φ 106 x 100 | 4.17 × 3.94 |
Round | 400 CPSI | Φ 103 x 100 | 4.05 × 3.94 |
Round | 400 CPSI | Φ 101.6 x 152.4 | 4 × 6 |
Round | 400 CPSI | Φ 100 x 100 | 3.94 × 3.94 |
Round | 400 CPSI | Φ 93 x 152.4 | 3.66 × 6 |
Round | 400 CPSI | Φ 83 x 152.4 | 3.26 × 6 |
Round | 400 CPSI | Φ 80 x 100 | 3.15 × 3.94 |
Round | 400 CPSI | Φ 76.2 × 50 | 3 × 1.97 |
Round | 400 CPSI | Φ 60 × 85 | 2.36 × 3.34 |
Oval | 400 CPSI | Φ 169 x 85.7 x 115 | 6.65 x 3.37 x 4.52 |
Oval | 400 CPSI | Φ 169 x 80.8 x 115 | 6.65 x 3.18 x 4.52 |
Oval | 400 CPSI | Φ 148 x 84 x 152.4 | 5.82 x 3.3 x 6 |
Oval | 400 CPSI | Φ 144.8 x 81.3 x 152.4 | 5.7 x 3.2 x 6 |
Oval | 400 CPSI | Φ 127 x 63.5 x 152.4 | 5 x 2.5 x 6 |
Oval | 400 CPSI | Φ 93 x 61 x 90 | 3.66 x2.4 x 3.54 |
Oval | 400 CPSI | Φ 120.6 x 80 x 152.4 | 4.75 x 3.15 x6 |
Oval | 400 CPSI | Φ 143 x 98 x 152.4 | 5.63 x 3.86 x 6 |
Oval | 400 CPSI | Φ 147 x 95 x 152.4 | 5.78 x 3.74 x 6 |
Oval | 400 CPSI | Φ 177.8 x 114.3 x 170 | 7 x 4.5 x 6.7 |
