| Prod Model: |
HX35 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Refone |
| Engine: |
F4a |
| Turbo Spare Parts: |
All Available |
| Sample Order: |
Acceptable |
| Shipping Ways: |
DHL, FedEx, TNT, UPS, by Sea, by Air and So on |
| Delivery Time: |
1-20 Days According to The Order Amount |
| Quality Warranty: |
12 Months |
| Hot Selling Area: |
Europe |
| Payment Ways: |
T/T, West Union or Paypal and So on. |
| Certification: |
CE |
| Body Material: |
Iron |
| Brand: |
Holset |
| Application: |
Iveco |
| Type: |
Turbocharger |
Product Description

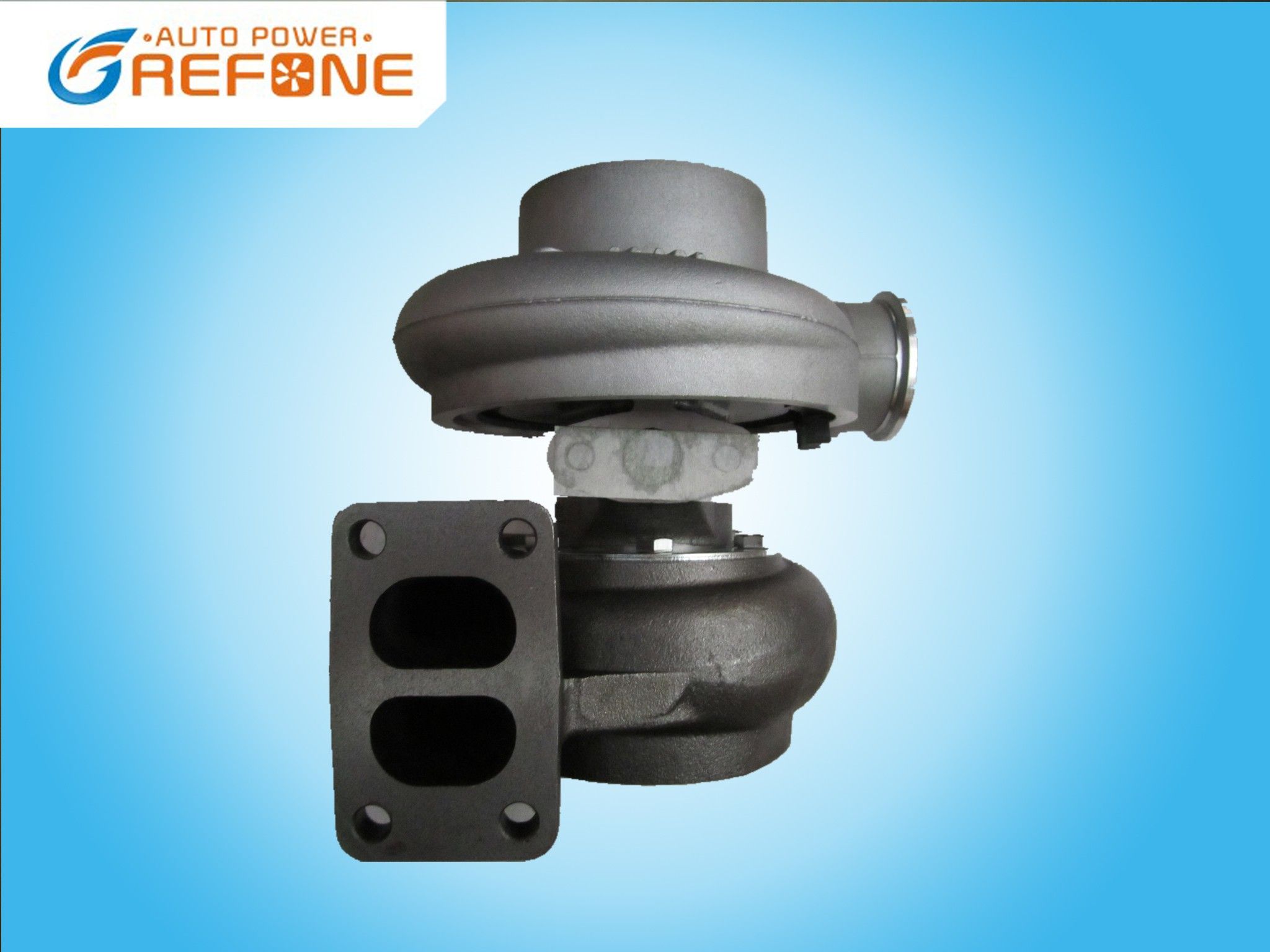

Iveco Truck With F4A Engine Turbocharger Holset HX35 4036531 4036532 504087676
Product Description
Part Number: 4036531
Previous Part Number: 4036532
OE number: 504087676
Description: Truck Euro Cargo LKW
CHRA: 4027331 $862.86
Turbo Model: HX35-E7755L/E16F11A, HX35
Engine Manufacturer: Iveco
Angle α (compressor housing): 305
Angle β (turbine housing): 195
Bearing Housing: 4032032
Turbine Wheel: 3595832
Comp. Wheel: 3599649 $125.00
Back plate: 3596448
Heat shield Number: 3519302
Repair Kit: 4027448
Turbine Housing: 4036501
Compressor Cover: 3598643
Gasket (turbine inlet): 409039-0000
Gasket (turbine outlet): 409196-0002
Gasket (oil outlet): 210060
Manufacturer: Refone
Interchangeable with 53279886747, with the addition of a elbow 504085786 and gasket 504085784
Applications
2003- Iveco Truck Euro Cargo LKW
Sample Order is acceptable and 1 year Quality Warranty!
High speed balancing testing is used by us to ensure our quality!
This model has been sold to France, Poland, Sweden and has a stable quality! Welcome to contact us! We will feedback promptly!
Contact person: Ms. Lillian Wang
Other Hot Selling Turbos:
| GT1852V | 709835-5002S | 6110960399/6110960799 | Mercedes-PKW E-Klasse 220 CDI (W210) |
| GT1852V | 709836-0004 | A6110960899 | Mercedes Sprinter OM611 |
| GT1852V | 717625-5001S/1 | 86005024445061 | Opel Astra G 2.2 DTI |
| GT1852V | 7176265001S/1/2/5002S | 860055-24443096
860051-24445062 | Opel Signum 2.2 DTI |
| GT1852V | 718089-5008S/5/6/5007S | 8200267138/7701475282
8200447624/7711134877
8200447624A | Renault Avantime 2.2 dCi |
| GT1852V | 726698-0001/2/3/5003S
778794-0001
709836-0001/5004S | A6110960899
A6110961699
A6110961599 | Mercedes Sprinter I 211/311/411CDI OM611 109HP 00-06 |
| GT2052V | 7246390002/5002S/5006S 705954-0009/0015/0017 | 14411-2X900 14411-VC100 | Nissan Terrano II 3.0L Di 229 |
| GT2052V | 454135-0001/2//5006S/5009S/5010S | 059145701G/GZ/GV/C/CX/CV | Audi A4 2.5 TDI (B5) |
| GT2052V | 454205-0006 | 074145701DV248 | VW LT II 2.5TDI |
| GT2052V | 710415-0001/5003S | 11657781434/5 7781436
/7780199D | BMW 525 d (E39) |
| GT2052S | 452301-0001 | 2674A326/391 | Perkins 4000 - T4.40(0.0) |
| GT2052S | 703389-0001 | 28230-41450 | Hyundai Mighty Truck |
| GT22 | 709838-5004/5S/3/1 | A6120960399 | Mercedes Sprinter I 216/316/416CDI |
| GT2252 | 452187-0006 | 1441169T00 | BD-30Ti |
| GT2252V | 454192-0001 | 074145703E | V.W. T4 Transporter 2.5L |
| GT2556V | 454191-0001/0003/5012S/5015S | 11652248906/11652248907/11652247691 | BMW 530 d (E39) |
| GT2256V | 704361-0004/5/5006S | 11652249950/11652248834 | 330 d (E46) |
| GT2256V | 709838-0001/3/4/5005S | 05104006AAA6120960399 | BENZ,DODGESprinter |
| GT2256V | 710811-5002S | 55191597 | ALFA ROMEO |
| GT2256V | 751758-0001/5001S 707114-0001 | 5001855042/500379251 | Iveco Daily |
