Hitachi Auto Alternator for Hino, Isuzu Truck (12097 LR170-418)

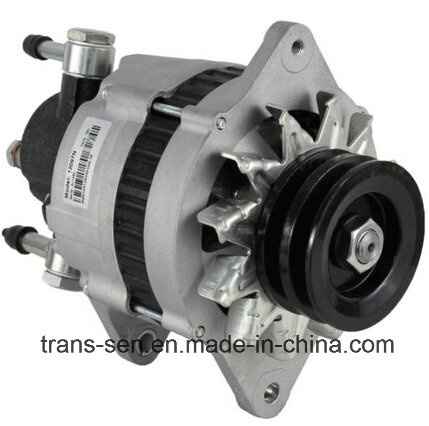

Name: Hitachi Auto Alternator for Hino, Isuzu Truck (12097 LR170-418)
Brand: ibuyautoparts.com
SKU: 749217595
Availability: InStock
Rating: 4.6 (58 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	20/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	TS12097HI LR170-418 LR170-418B 8-97029-226-0
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Parameter:	70 AMP/12 Volt, Cw, 2-Groove Pulley
Pulley Class:	V2
Regulaitor:	IR
Fan Type:	Ef
Manufacture:	Hitachi
Structure:	Integral Alternator
Current Level:	7(',70～79A)
Bonding Type Of Magnetic Field Winding:	Inner Bonding
Brushless Alternator Type:	Permanent Magnet Type
Voltage Adjuster Type:	Electronical
Voltage:	12V
Head Cover Position:	Front
Type:	Alternator
Brand:	Hitachi

Product Description

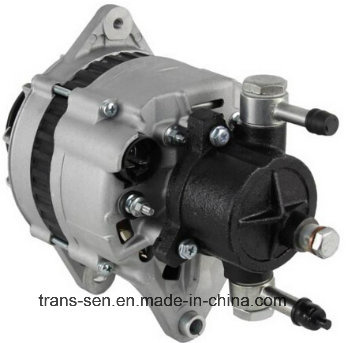

Product Picture:

Brief Introduction:
8 Spline Pump Drive Shaft on Rotor.The 14735 is Virtually the Same Unit Except the Rotor Shaft Out the Rear of the Units is 16 Spline and Shorter and the Rear Housing is Set Up for Different Vacuum Pumps (Mounting May Vary).The Housing for the 12097 Has Relief Cuts to the Inside of the Pump Mounting Holes.The 14735 Can Use Either one.

Model:

TS12097HI	TS NO.
AHI0069	ARROWHEAD
12097	LESTER
204-329	PIC
200-12097	BARSANCO
12097	BBB HD
113413	CARGO
A-8531	DIXIE
912097	DUBOIS
12097N	EMS
10595	EXCEL
10459448	GENERAL MOTORS
94052404	GENERAL MOTORS
LR170-418	HITACHI
LR170-418B	HITACHI
2912760000	ISUZU
8970237331	ISUZU
400-44001R	J & N
400-44001	J & N
47-2873	MINNPAR
X612097	MPA HD
X612097N	MPA NEW HD
12097	NAPA HD
12097N	NAPA NEW HD
AL-12097	RCP
12097	USA INDUSTRIES
1-2271-01HI	WAI
90-25-1089	WILSON
90-25-1089	WILSON HD
50977	WORLDWIDE

Application:
Hino, Isuzu Truck
CHEVROLET / GMC TRUCKS, ISUZU TRUCKS 1990-98
2-V PULLEY
ADDL INFO: 3/8 INCH BELT WIDTH
Dim: 8-Spline Pump Shaft, 191mm OAL
Note: Similar to 1-1940-01HI, however1-1940-01HI has a shorter 16-spline pump shaft.

Trans-sen Industrial (Shanghai) Co., Ltd is a professional manufacturer and exporter specializing in starters and alternators. Our products are widely used in cars, trucks, bus, forklifts and heavy equipment for American, European, Japanese and Korean automobiles.

We can supply BOSCH/ VALEO/ DENSO /MITSUBISHI/ Ford/ MITSUBA/ HITACHI/ DELCO/ LUCAS series, which fit for auto car, truck, agriculture machine, heavy duty, pickup, forklift and so on.

Package: Bulk or customer's package

Quality: Some of our goods would be supplied to OE, 1year quality guarantee

Every one should be tested by DV TEST MACHINE.

IF YOU HAVE ANY ENQUIRY, PLS SEND US MAIL.
