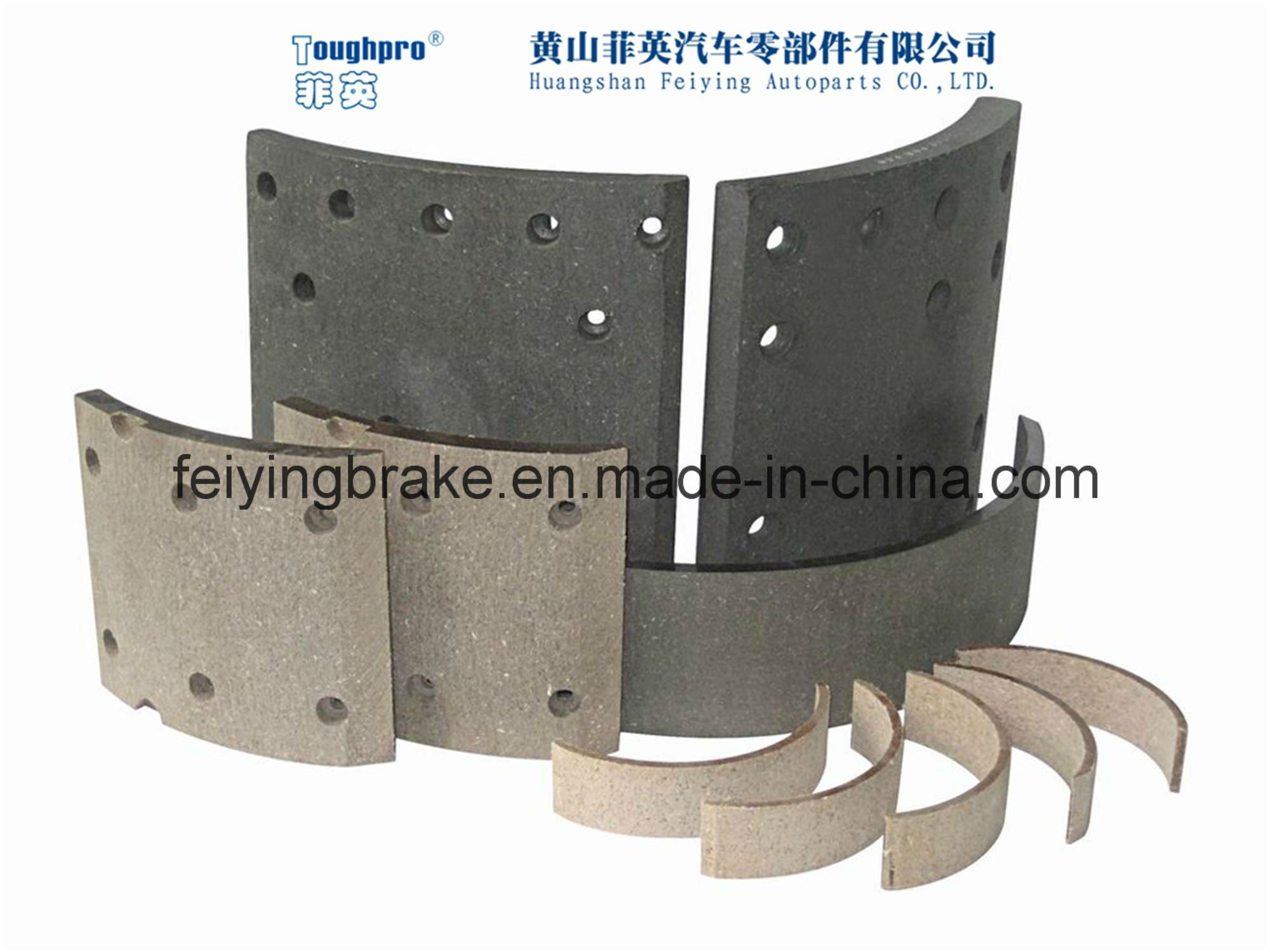

Hino Truck Brake Lining with Asbestos Free
Price: |
US $ 1.28-1.36/Piece |
Min Order: |
500/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
19931 |
Product Name: |
Brake Lining |
Color: |
Black |
Size: |
260*178*19mm |
Cerfication: |
ISO/Ts16949 |
Raw Material: |
Semi-Metallic |
Packing Detail: |
Netural Packing |
MOQ: |
500PCS |
Application: |
Scania |
Type: |
Brake Lining |
Material: |
Non-Asbestos |
Position: |
Front |
Certification: |
ISO9001 |
Classification: |
Brake Lining |
Product Description
Product Type: | Brake Linings |
Material: | Asbestos; Semi-metallic; Non-asbestos; Ceramic etc. |
Model: | 19931 |
:Specification: | Outer Arc:260mm Width: 178mm Thickness:19mm |
Material span life: | Asbestos: 30000 to 40000 kilometers Non asbestos: 70000 to 80000 kilometers Ceramic: 100000 kilometers up |
Packing: | 4 pieces per sealed ploybag, 2 sets per inner box, 2boxes per export carton . Can be packed as per your requirement. |
Sample: | Free of charge |
MOQ: | 2000 pcs |
Delivery time: | 25 -60 days as per order quantity |
Delivery port: | Ningbo Port |
Production capacity: | 300000 pieces per month |
applicatation | SCANIA |
2. Featurers:1) Good heat dissipation
2) Do not damage the drum
3) Low noise
4) High temperature resistant
5) Environment-friendly
3. Testing ResultInspection Item | Test Result |
NormalTemperature Friction Coefficient(100-150ºC) | 0.42±0.02 |
Hot Friction Coefficient(250ºC-300ºC) | 0.42±0.01 |
Wear Rate(×10-7m3/Nm150ºC) | 0.26-0.53 |
Density(g/cm3) | 2.22 |
Impact Force(J/cm2) | 0.46 |
Los's strength(HRM) | 51 |
Shear strength in(MPa) | 20.52 |
Compression strength(N/mm2) | 84.49 |
Thermal Expansivity/% | 0.89 |
4.Company introduceAdhere the quality of scientific and technological innovation
Technology innovation is the first productive force of enterprise development, with the advanced technology, can make the enterprise quickly occupied the advantage position in the competition, continued to have the ability of innovation, in order to ensure an invincible position in the market competition.
With 20 experience in this area, Feiying is more clear then anyone on this point, we pay more attention on the technology research and development, continue to increase the investment of hardware equipment, also pay attention to staffs training and the introduction, the company have staffs more than 400 people, inside 15 senior engineer , 78 people have university degree, the company plans to annually increase the proportion of funds for scientific research and gradually to information and digital chemical control mode of production enterprises.
Feiying is the first one using the German brake pads Automatic technology production line , Every year will develop more than 10 high-end r R & D formula product and sell worldwhile .the company have passed the ISO / TS16949 quality system certification, for production process control, there are strict requirements, to ensure that the factory's each a product is safe and reliable, excellent qualitified products
Huangshan Feiying Auto Parts Co., Ltd is an enterprise specialized in developing and manufacturing various kinds of drum brake lining and pads for both Chinese and oversea brand heavy duties vehicles.
"Toughpro", as a famous brand, well known in China market for more than 15 years. Now Feiying company owns 58 marketing centers all over the world.

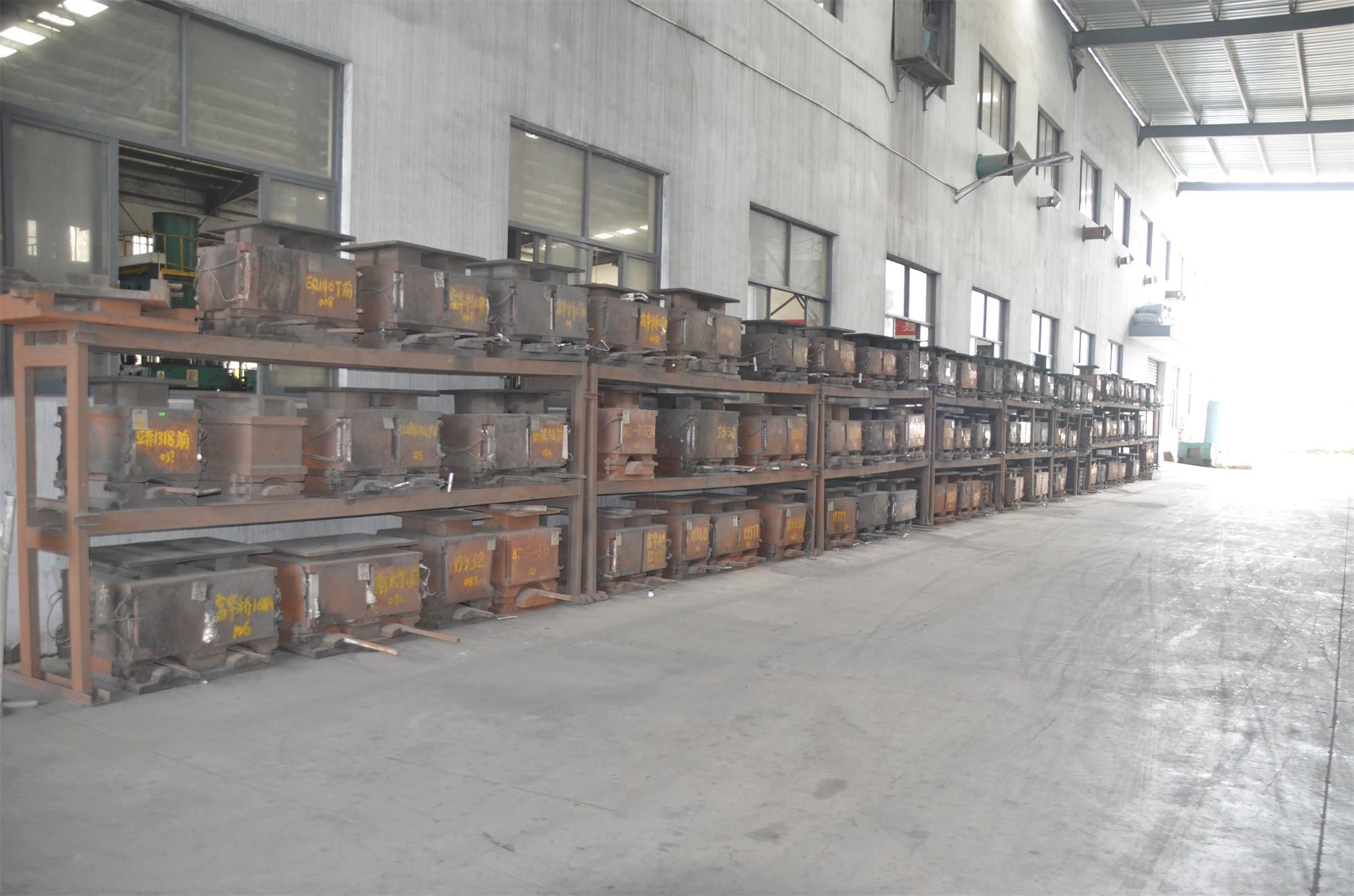

Founded in 1995, ISO/TS 16949: 2009 certified, covering an area of 40, 000 m³ With the daily production capacity 8, 000 sets of brake lining and totally 356 staffs. Already built four sets of automatic production lines and one set of advanced automatic materials distributing and mixing system.
Owning advanced quality management system, very strict quality control process must be carried out during every production process for all of our products to assure every piece of our products can well meet customer's specification requirement.
Our R&D have complete testing equipments and very critical quality test for all raw materials, tested the finished products according to National Standard before each delivery to assure stable quality.
Located in Huangshan Economic Development Zone, near high-speed railway station, express way and high way entrance, convenient transportation.
As one of the bigger and better brake lining manufacturers, we can assure stable quality products, timely delivery, good quality, wish to cooperate with you and increase the business together.
