| Engine | Part No | Cyl.No | Bore | Length | Comp-Dist | Ring Size | Pin Size | Combustion.C | Remark | Applycation |
| W04D | 13216-1460 | 4 | 104 | 106.2 | 60.2-19.1 | 2.5+2+5 | 35*85 | round flat,51mm | alfin | Ranger,Rainbow |
| W04DT | 13211-78120 | 4 | 104 | 106.2 | 60.2-18.5 | 2.5+2+4 | 37*85 | round flat,51mm | alfin | Dutro,Ranger,Liesse |
| H07D | 13216-2260 | 6 | 110 | 100 | 57-20.5 | 3+2+4 | 37*85 | round flat,58mm | alfin | Ranger |
| H07D | 13216-1980 | 6 | 110 | 100 | 57-20.4 | 3+2+4 | 37*85 | round sharp,57mm | alfin | |
| EH700 | 13216-1181 | 6 | 110 | 121.5 | 69.5-24.5 | 3+2.5+2.5+5 | 39*90 | round sharp,54mm | alfin | Ranger 4D,Ranger 5,KLSD,KP6D |
| EH700T | 13211-1740 | 6 | 110 | 121.5 | 69.5-23.5 | 3+2.5+2.5+5 | 39*90 | round sharp,57mm | alfin | |

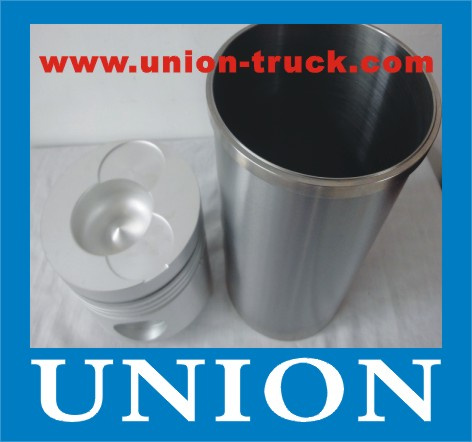

| H07C | 13216-2290 13211-2580 | 6 | 110 | 121.5 | 69.5-27.6 | 3+2.5+2.5+5 | 39*90 | round sharp,51mm | alfin | Ranger 4D,Ranger 5,Truck:KLSD,KP6D |
| H07C | 13216-2300 13216-1771 | 6 | 110 | 121.5 | 69.5-20 | 3+2.5+2.5+5 | 39*90 | round flat,53mm | alfin | |
| H07CT | 13216-2740 | 6 | 110 | 121.5 | 69.5-19.4 | 2.8K+2+2+4 | 39*90 | round sharp,58mm | alfin,oil gallery | Ranger SD |
| H07CT | 13216-2062 | 6 | 110 | 121.5 | 69.5-19.4 | 2.8K+2+2.5+4 | 39*90 | round sharp,58mm | alfin,oil gallery | |
| J08E | S130A E0100 | 6 | 112 | 100 | 57-18.5 | 2.5+2+4 | 37*84.5 | round sharp,63.5mm | alfin,oil gallery,pin bush,moly skirt | Ranger |
| J08C | 13216-3211 | 6 | 114 | 100 | 57-19.6 | 2.5+2+4 | 37*84.5 | round flat,56mm | alfin | Selega,Ranger,Rainbow |
| J08C | 13216-2631 | 6 | 114 | 100 | 57-19.6 | 3+2+4 | 37*84.5 | round flat,56mm | alfin | |
| J08CT | 13306-1012 | 6 | 114 | 100 | 57-21.2 | 3+2+4 | 37*84.5 | round sharp,61mm | alfin,oil gallery,pin bush | |
| J08CT | 13301-1013 | 6 | 114 | 100 | 57-18.5 | 2.5+2+4 | 37*84.5 | round sharp,65mm | alfin,oil gallery,pin bush | |
| PS140 | 13216-2983 | 6 | 114 | 103.5 | 60.5-20 | 2.5+2+4 | 37*84.5 | round sharp,53mm | alfin | |
| P11C | 13211-2700 | 6 | 122 | 96.7 | 63.7-25.1 | 3.3K+2.3K+2+4 | 47*89 | round sharp,75mm | alfin | Blue Ribbon,Super Dolphin,Profia |
| P11C | 13211-2723 | 6 | 122 | 96.7 | 63.7-25.1 | 3.3K+2.3K+2+4 | 47*89 | round sharp,75mm | alfin | |
| M10C | 13216-2411 | 6 | 127 | 144.5 | 85.5-23.9 | 3.3K+2+3+5 | 47*99 | round flat,65mm | alfin | |
| EF550 | 13216-1560 | 8 | 135 | 145.3 | 90.3-30.3 | 3.3K+3.5+3.5+6 | 50*110 | round sharp,71mm | alfin | KB300D,KS320,ZM102,TC541 |
| K13C 12V | 13216-2140 | 6 | 135 | 145.3 | 90.3-27.3 | 3.3K+3.5+3.5+5 | 50*110 | round sharp,80mm | alfin,oil gallery | |
| K13C 24V | 13216-2330 | 6 | 135 | 145.3 | 90.3-24.2 | 3.3K+3.5+3.5+5 | 50*110 | round sharp,84mm | alfin,oil gallery | |
| K13D | 13216-2110 | 6 | 137 | 144.3 | 90.3-26.2 | 3.3k+3.5+3.5+5 | 50*110 | round sharp,74mm | alfin | Super Dolohin |
| EF750-L | 13216-1860(1550) | 8 | 137 | 144.3 | 90.3-30.3 | 3.3K+3.5+3.5+6 | 50*110 | round sharp,73mm | alfin | FN,SS,SH,FS |
| EF750-R | 13226-1170 | 8 | 137 | 144.3 | 90.3-30.3 | 3.3K+3.5+3.5+6 | 50*110 | round sharp,73mm | alfin | |
| EK100 | 13216-1224 | 6 | 137 | 145.4 | 90.3-31.5 | 3.3K+3.5+3.5+6 | 50*110 | round sharp,73mm | alfin | TC303D,KF301D,ZM103D,KB501D |
| EK200 | 13216-1530 | 6 | 137 | 145.3 | 90.3-32 | 3.3K+3.5+3.5+6 | 50*110 | round sharp,73mm | alfin | |
| F17D | 13216-2050/1200 | 8 | 137 | 144.3 | 90.3-24.2 | 3.3K+3.5+3.5+5 | 50*110 | round sharp,73mm | alfin | Selega,Super Dolphin |
| F17C | 13216-1910/1180 | 8 | 137 | 144.3 | 90.3-26.3 | 3.3K+3.5+3.5+5 | 50*110 | round sharp,74mm | alfin | |
| V22C | 13216-1642/1162 | 10 | 139 | 144.3 | 90.3-30 | 3.3K+3.5+3.5+6 | 50*110 | round sharp,75mm | alfin | Super Dolphin |
| F20C | 13216-2671/1321 | 8 | 146 | 138.3 | 84.3-27.8 | 3.3K+3.5+3.5+5 | 50*110 | round sharp,75mm | alfin | Ranger Truck Super Dolohin,Profia:Fs |
1. Piston for Chinese, European and American model, Japanese and Korea model, Russian model etc.
2. Goods will prepared in 3 working days if in stock,will cost 30-45 days by order for Aluminum piston,60 days for cast iron piston
3. 6 pcs piston in 1 box,1 cartons have 2 boxex,12 pcs piston in total(the exact number will decide on the diameter)
4. Will deliver goods after your full payment if need our stock;If by order produce,30% deposit before production,will deliver the goods after your full balance
5.Mitsubishi,Mazda,Nissan,Toyota,Isuzu,Doosan,Komatsu,Kubota,Hyundai,Kia,Cummins,Catpilliar,Perkins etc diesel engine parts are within our business scope,Toyota,Peugeot gasoline engine parts are avaliable,especially for Africa and Middle-East market.
Guangzhou Union Auto Parts Co., Ltd established in 2000, invested two factories: One is piston ring factory, the other is piston factory, was one of the biggest engine parts manufacturers and suppliers in Guangzhou. And we supplied piston and ring to these truck engine assembly factories. (JAC, JMC, ISUZU, FOTON, DFAC, FAW etc) Meanwhile, we attached great importance to after-sale service and got distributors among 15 provinces in China. In 2007, the export department in Guangzhou was established with an efficient and united team. Export staff aimed at providing professional solution to engine parts repairing for customers domestic and abroad through exhibition and online service. In 2009, the second largest liner factory of China chose Union team developing oversea market. We are committed to our customers supplying high quality engine parts to meet customer's needs. We do believe that quality means the life of enterprise. And we are striving to be the best manufacturer and supplier of engine parts from a global view.
Our main products are diesel engine pistons, piston rings and cylinder liners which are mainly applied to light trucks, heavy-duty trucks, buses and construction machines engines like YUCHAI, WEICHAI, DACHAI, XICHAI, CHAOCHAI, YANGCHAI, YUNNEI, YANGDONG, XINCHANG, JIANGHUAI, DONGFENG CUMMINS etc. Adopting advanced technique and high quality management system with special laboratory, our products get international approval, such as ISO9001, TS16949 etc. And enjoy a very good reputation among customers in domestic and overseas market. In addition, we can provide OEM service according to customer's technical drawings and requirements for engine parts. (ISUZU, HINO, Nissan, MITSUBISHI, KOMATSU, YANMAR, DAEWOO, HYUNDAI, KIA, CUMMINS, CATERPILLAR etc)
OUR ADVANTAGES (Factory Background)
The first piston ring factory of China for diesel engine started in 1943 with annual production of 40 million pieces rings diameter range from 65mm to 400mm.
The largest piston factory in Asia with annual production of 6 million pieces piston diameter range from 65 mm to 400mm.
The second largest liner factory in China with annual production of 10 million pieces liner diameter range from 65mm to 250mm.
Advanced technology and scientific administration for quality guarantee, professional sales team to avoid misunderstanding and mistakes, quick production and fast delivery for target market share and protection. The best strategic partner of one-stop cylinder liner kit purchase solution for customers domestic and abroad.
