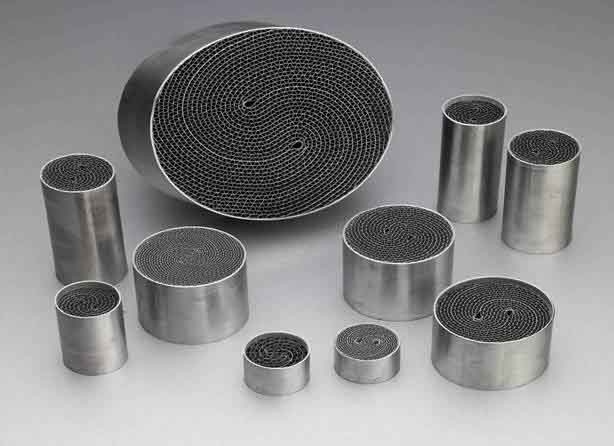

High temperature metallic substrate for motocycle
Product Description:
WISDOM is one the leading manufacturer and supplier of advanced metal honeycomb products in China since 2006. By using heavy-duty, high-efficiency coatings and high-quality materials, we produce and offer catalytic converters of the very highest quality.
Our metallic substrates are specifically designed and manufactured to deliver optimum performance for each application with minimal reduction of horsepower. Advanced methods in honeycomb coupled with our vaccum brazing technology enable us to exceed the requirements of the most demanding applications .Our product:| Brand | WISDOM |
| Body material | SS/FeCrAl |
| Size | more sizes and Spec. Can be customized to your engine |
| Shape | Round/ Racetrack/Oval or can be customized to your requirement
"T" series(one hole)/ "S" series (Two holes) |
| Certification | ISO9001 |
| MOQ | 1 Piece |
| Packaging | all product package can be customized based on your requirements |
| Payment terms | L/C, T/T, Money Gram, Western Union |
| Conversion Rate | CO≥96,HC≥95,NO≥90 |
| Coating losing rate | ≤3 |
| Scope | apply to Auto/Motorcycle, Infrared Gas Stove, etc. |
| Advantage | Low initiation temperature |
| Low pressure drop |
| High mechanical strength |
| Excellent thermal and coking resistance |
| Reliable braze welding intensity |
| Durable heat-resisting impact performance |
| Perfect catalyst coating binding force |
| Good anti-shock |
| Service life | Above 120,000 KM |
| Usage | For exhaust system of general engine,off-road engine(gasoline engine and diesel engine), like garden machinery: Gasoline Chain Saw, Brush Cutter, Hedge Trimmer, Earth-Auger, |
| Price | The price is different in different specifications between USD1 and USD100. |

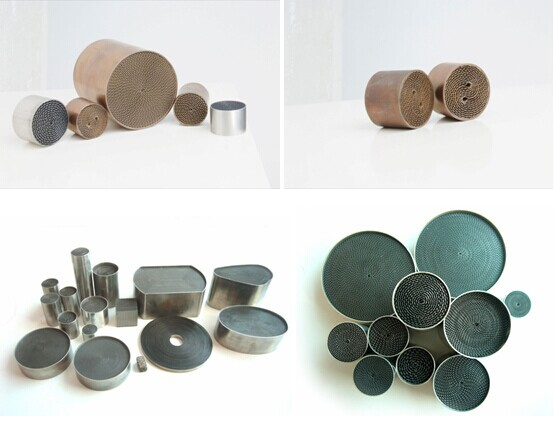

Honeycomb For Motorcycle- Honeycomb For Car
- Honeycomb For Infrared Gas Stove
- Un-standard Honeycomb
Why metallic?
Why metallic?
A metal-based monolith substrates offers many advantages in comparison with a ceramic one, for instance : |
| Shorter light off time |
| Less risk of overheating |
| Less back pressure |
| Larger effective area |
| Greater catalytic capacity |
| Smaller and more flexible design |
| Thinner walls |
| Higher mechanical strength |
| Better resistance to thermal shock |
SpecificationMaterial | Mantle | Matrix | Brazing |
| Ferritel (SUS444, SUS441, SUS430) | Fe-Cr-Al with RE, Zr/Ti additions high temperature oxidation resistant special alloy
Domestic FeCrAl(2073/216)
Import FeCrAl(1.4725/1.4767) | Nickel base alloy |
or Austenitic heat resistant stainless steel
(SUS304) |
Dimension and Cell Densitities| Dimensions, mm | Cell densities,CPSI | Foil thickness,mm |
| round shape with diameter more than 10mm, length up to 800mm | 50, 100, 200,250,300,400,500,600, 800,1000 | 0.03,0.04, 0.05,0.06,0.08,0.10 |
| Oval shape |
| Others (Rectangle etc.) |
Mark:We can supply Metallic Substrate coated with noble metals of Pt, Pd and Rh. We also supply Metallic Substrate without noble.Why did you choose us?Quality Assurance. According to international standard, we introduce new techniques and new
processes, so we can keep improving product quality. There are strict processes and quality
manages to make sure the products keep updated, and be well received by users.

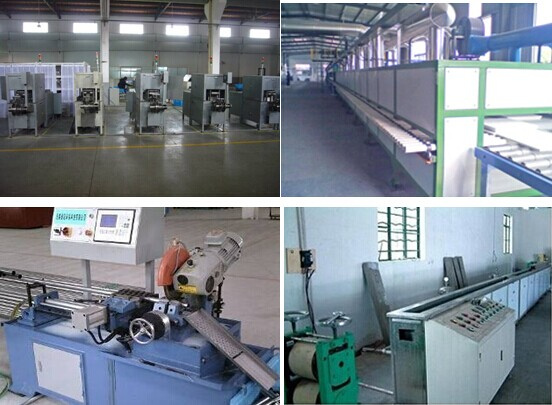

Equipment. Our major equipment, vacuum brazing furnace, tube cutting machine, foil cutting and
corrugated machine, foil wash machine,etc.
Principle. "Quality and credit standing" is the life of our company. "Research and innovation" is the life line for survival of our company.
Welcome. We warmly welcome friends of various circles to come to visit and talk about business with us. We take proud to cooperate with our customers based on our high quality products, competitive price, perfect service and good credit. We look forward to your business negotiation and sincerely hope to be your best trade partner.
Price:The price is different in different specificatons between USD1 and USD100.
