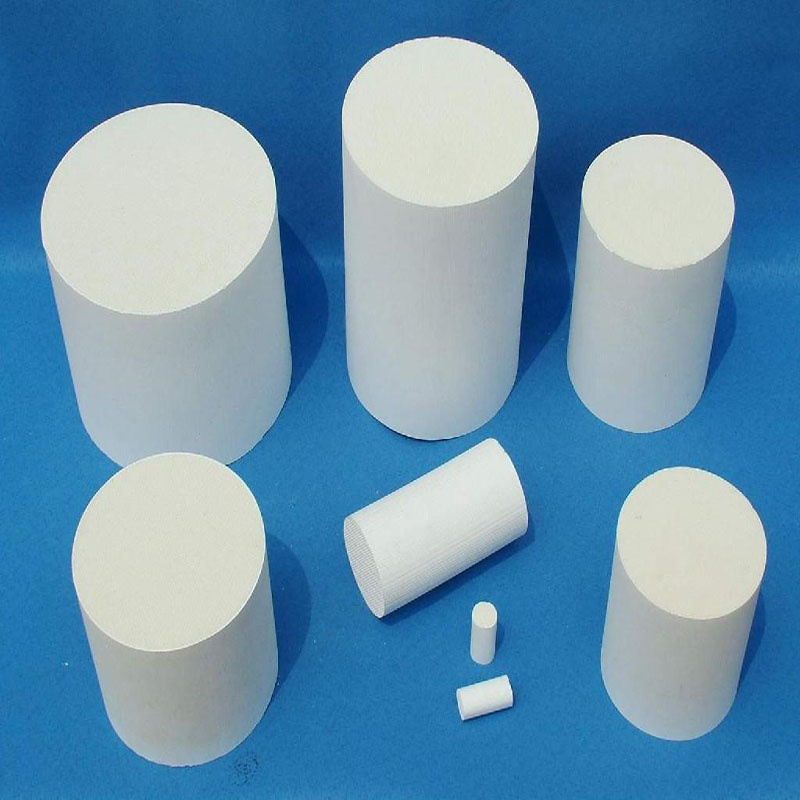

High Temperature Ceram Catalytic Converter for Diesel Truck

Product Description:

What`s Catalytic Converter
A catalytic converter is a device that uses a catalyst to convert three harmful compounds in car exhaust into harmless compounds.The three harmful compounds are:
-Hydrocarbons VOCs (in the form of unburned gasoline, produce smog)
-Carbon monoxide CO (is a poison for any air-breathing anima)
- Nitrogen oxides NOx (lead to smog and acid rain)


How does catalytic converter work
In a catalytic converter, the catalyst (in the form of platinum and palladium) is coated onto a ceramic honeycomb or ceramic beads that are housed in a muffler-like package attached to the exhaust pipe. The catalyst helps to convert carbon monoxide into carbon dioxide(CO to CO2 ). It converts the hydrocarbons into carbon dioxide(CO2 ) and water. It also converts the nitrogen oxides back into nitrogen and oxygen.



Ceramic Catalyst Introduction
Our ceramic catalyst substrate is made of high-quality cordierite with low thermal expansion coefficient. Which make our catalyst substrate can endure thermal shock and owns high mechanical strength.
The special coating technic makes the catalyst well combinded with the substrate and prolong the lifetime of the catalyst substrate.




Technical standard:
Initial Purifying rate : CO/CH >90%; NOx >80%
Purifying rate after 100hrs quick aging test:        CO/CH >75%; NOx >60%
Ceramic catalyst Lifetime:   >80000 KMS for new car ;
                        >50000 KMS for used car;

Items	Parameters
Porosity(%)	80~90
Max. Operating Temperature (Degree ºC)	1350
Bulk Density (g/cm3)	0.7~1.8
Compression Strength(Mpa)	>15
Thermal Shock Resistance (times/1100Degree C)	>6
SiO2(%)	38~42
Al2O3(%)	53~57
Fe2O3(%)	<1.5
TiO2(%)	<1.5


Main advantages of honeycomb ceramic filter:

1.good work strength under high temperature, good thermal shock resistance and      melted metal inflow resistance

2.high strength under room temperature, mechanic push resistance

3.obvious filter effect

4.ease the uneven inflow of casting, smooth the casting process, avoid surface defect

5.have a large and even melted inflow rate

6.good chemical stability, not affected by of melted meta, no change in its chemical        compound

7.precise dimension and can be used in production line automatic filter mounting   equipment

Mark:We can supply Metallic Substrate coated with noble metals of Pt, Pd and Rh. We also supply Metallic Substrate without noble.

Size  (L×W mm)	Cell Shape	Cell Dia (mm)	No. of Cells	Porosity (%)	Pcs/Cubic Meter
100×100×(20)	square	2.2×2.2	33×33=1089	52.7	5000
100×100×(20)	square	2.5×2.5	31×31=961	60.06	5000
100×100×(20)	square	3.0×3.0	24×24=576	51.84	5000
81×81×(12.5)	square	1.46×1.46	44×44=1936	62.89	12193
75×75×(15)	square	2.2×2.2	26×26=676	58.17	11852
75×75×(15)	round	Φ2.5	492	42.94	11852
120×65x(20)	square	2.2×2.2	38×20=760	47.16	6410
100×65×(20)	square	2.2×2.2	33×21=693	51.6	7692
100×60(12.5)	square	2.2×2.2	33×20=660	53.29	13333
100×50×(20)	square	1.6×1.6	50×24=1200	61.44	10000
66×66×(12.5)	square	1.2×1.2	42×42=1764	58.31	18365
66×66×(12.5)	square	1.46×1.46	37×37=1369	66.99	18365
66×66×(12.5)	square	2.2×2.2	26×26=676	75.11	18365
66×66×(12.5)	round	Φ2.4	440	45.7	18365
60×60×(20)	square	1.6×1.6	29×29=841	59.8	13889
60×60×(15)	square	2.2×2.2	20×20=400	53.78	18519
55×55×(12.5)	round	Φ2.3	367	50.41	26446
55×55×(12.5)	square	2.2×2.2	21×21=441	70.56	26446
55×55×(12.5)	square	1.15×1.15	37×37=1369	59.85	26446
50×50×(12)	square	2.2×2.2	19×19=361	69.89	33333
50×50×(12.5)	round	Φ2.3	294	48.86	32000
40×40×(10)	round	Φ2.2	172	40.86	62500
40×40×(10)	square	1.4×1.4	22×22=484	59.29	62500
Φ90×(12.5)	square	2.2×2.2	696	52.95	12582
Φ60×(10)	square	1.44×1.44	502	36.82	35368
Φ52×(7)	square	2×2	234	44.07	67304
Φ52×(7)	square	1.44×1.44	286	27.93	67304
Φ50×(10)	round	Φ2.3	109	23.06	50955


The price is different in different specifications between USD1 and USD100.


More information you may interested:
WISDOM Technologies is a founder and leader in Research and
development,manufacturing of metallic substrate in China.more than 9 years of experience and constant further developments ensure that our products are of the highest quality and always competitive.We can customize according to specification metal honeycomb from you.
Our product lines include honeycomb seal for turbine machines, such as aero engines, steam turbines, gas turbines and industrial turbo machines, metallic honeycomb products including aerospace quality honeycomb core materials, honeycomb flow straightened and honeycomb rolls for nonwoven, products and metallic catalytic converter for automobile, Infrared Gas Stove, etc.

Quality Assurance. According to international standard, we introduce new techniques and new
processes, so we can keep improving product quality. There are strict processes and quality.
manages to make sure the products keep updated, and be well received by users.

Equipment. Our major equipment, vacuum brazing furnace, tube cutting machine, foil cutting and
corrugated machine, foil wash machine,etc.

Principle.  "Quality and credit standing" is the life of our company. "Research and innovation" is the life line for survival of our company.

Welcome.  We warmly welcom friends of various circles to come to visit and talk about business with us. We take proud to cooperate with our customers based on our high quality products, competitive price, perfect service and good credit. We look forward to your business negotiation and sincerely hope to be your best trade partner.
