High Temperature and Chemical Resistant Teflon Hose

Name: High Temperature and Chemical Resistant Teflon Hose
Brand: ibuyautoparts.com
SKU: 724457992
Availability: InStock
Rating: 4.4 (68 reviews)

Price:	US $ 0.46/Meter
Min Order:	300/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

High Temperature Resistant PTFE Lined SS Wire Braid Teflon Hose

Features: PTFE extruded hose reinforced with stainless steel wires braiding, and both sides fitted with metal connectors.
Inner tube: PTFE extruded hose, features as high and low temperature resistant, anti-corrosion, anti-stickness.
Outer Sheath: Stainless Steel SS304 braiding net, improve its pressure resistance, and connected with fast connectors.
Working Temperature range: Constant temperature -80° C~ +490° C

Application of Teflon Hose

1> for hydraulic, steam pressure, steaming feeding purpose in rubber, plastic, garment, auto, machine tools, diesel motor and electric motor.
2> paper manufacturing and shipbuilding industries etc.
3> it has better performance and lifespan in feeding hot/cold liquid and gas, strong corrosive mediums.

Size	ID	OD	Wall thickness	Working pressure	Min. breaking pressure (Kg/cm2)	Min. Bending radius
ID(mm)	(mm)	(mm)	(mm)	(Kg/cm2)	Min. breaking pressure (Kg/cm2)	(mm ± 3mm)
5	4.64-5.17	7.29-8.48	0.75	256	625	76
6	5.96-6.83	8.22-9.46	0.76	232	552	81
8	7.55-8.39	10.31-11.71	0.80	194	540	131
10	9.91-10.67	12.73-14.18	0.89	162	452	182
13	12.54-13.37	15.72-16.73	0.95	139	425	211
16	15.19-16.59	18.57-20.18	1.00	101	385	252
19	18.75-20.78	22.15-23.77	1.20	97	310	342
22	21.39-23.05	24.59-27.03	1.50	93	240	421
25	24.25-25.85	28.45-29.65	1.50	78	200	501

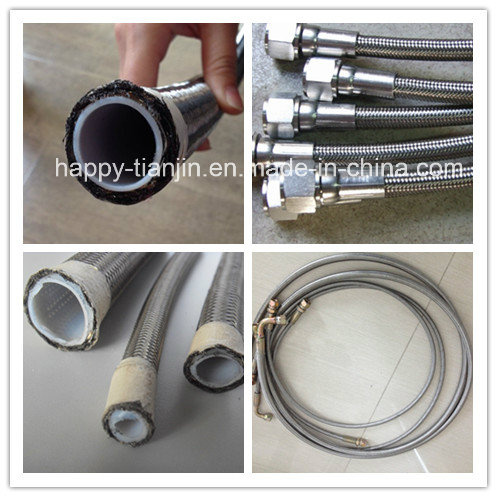

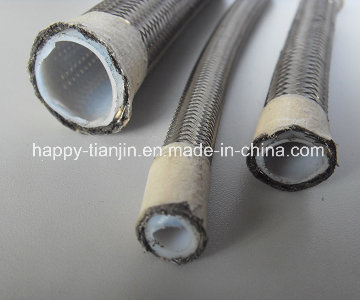

Pictures of Teflon Hose

Prod Model:	1/4" 3/8" 1/2" 3/4" 1" 2"
Name:	PTFE Lined Teflon Hose
Tube:	Corrugate or Smooth PTFE
Characteristic:	High Temperature, Chemical Resistant
Shape:	Round
Color:	White
Application:	Gas, Oil, Acid Alikali, Hot Water Delivery
Temperature:	-80c to +490c
Length:	8m 12m
Warranty:	1 Year
Connectors:	Male Female Fittings
Type:	Brake System
Material:	Steel
Position:	Rear
Certification:	ISO9001

Happy (Tianjin) Technology and Development Co., Ltd. Is based on integrity of Research & Development, Manufacturing & Sales. Our main products include hydraulic hose, drilling hose, concrete hose, oil suction hose, water suction hose, fuel hose, oil delivery hose, water delivery hose, steam hose, sandblast hose, chemical hose, air hose, welding hose, flex metal hose and so on.

Our workshop covers about 128900 meters. We have 23 advanced production lines. Our yearly production of each kind of rubber hose are about 55, 000, 000 meters. Now we have more than 400 workers and 22 authoritative enginners.

Our company offers some famous companies' OEM production for the long term and our main markets are North America, South America, Germany, Russia, Middle East, Africa and so on. At the mean time, we have stable and long term cooperation with Chinese Petroleum, Railway Department, Chinese Mining Group and so on.

Our principle - Excellent Quality, Fast delivery time and Integrity Service.
