High Standard Spray Paint Booth with Best Price

Prod Model:	Customized
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

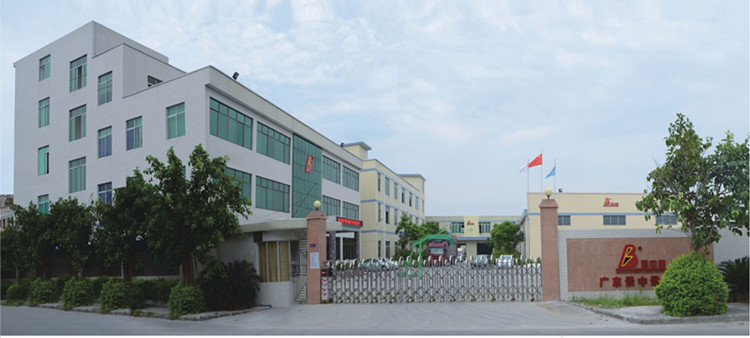

This is BZB paint booth factory established since 1999. We can totally undertake the design, manufacturing of customized spray booth, prep stations, bus booth, painting line, etc.

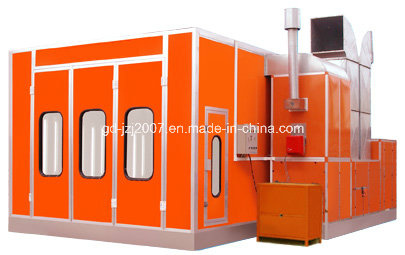

The below is a paint booth specially designed, which is a very popular model among our European customers, with heat-insulation EPS panel for the wall and for the roof.
We provide one year's free after-sales service for our customers. If you have any interest, please do not hesitate to let us know.

Paint booth features:

1. Overall dimension(m): 7.00*5.35*3.43

2. Inner dimension(m): 6.90*4.00*2.80

3. Steel plate thickness(mm): 0.4

4. Air flow volume(m3/h): 24000

5. Air velocity within booth(m/s): 0.3~0.4

6. Ventilation times(times/hr): 280
7. Working max temperature(°C): 80

8. Oil consumption(kg/set): 4~5

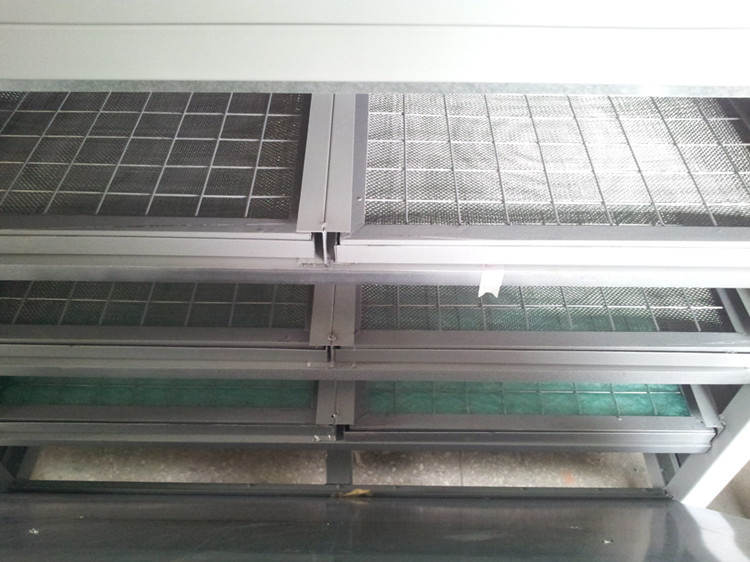

9. Purification System: Dual filtering structure. Filtering rate reaches 98%. TSP≤1.4mg/m3

10. Heating system: Riello Brand diesel burner, 200,000Kcal/h, SUS304 stainless steel heating exchanger

11. Environmental protection device: Multi-lagers fiberglass filter, active carbon
12. Lighting system: Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 16 pcs 36w Philips Lamp, 900 Lux

If interested and want more detailed information about it, please contact us.
