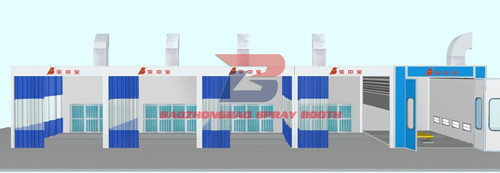

1. Putty station(this station is optional, around can leave a space)
| Specification | Project Photo |
| Inside size | 6900×3450×3100mm(L×W×H) | |
| Outside size | 7000×3550×3100mm(L×W×H) | |
| Basement | Without basement | |
| Cabin system | 1. Ceiling cover frame, front and side are manual PVC curtain, up and down blue, middle transparent, thickness of curtain: 0.5mm; soft curtain two sides inside have magnet, bottom with iron ore; use aluminum alloy track sliding, equip nylon pulley and hook, between two prep areas is two pieces soft curtain.
2. Back wall 50mm thick EPS panel δ=0.426mm colorful steel plate. One pcs personal door at back wall. |
Ceiling cover frame and PVC soft curtain |
| Trolley | Each station equip 4 sets trolley and 6 rows tracking which made of bended 2.0 thick steel plate channel and welded 30×20mm solid square steel. Trolley made of 5.0mm thick embossed plate, road wheel, axle, bearing and limit brake equipment, surface galvanized. |
Trolley |
| Install Way | Stand column installation or steel wire rope suspended ceiling installation. | |
| Voltage | 220V, 3phase, 60Hz | |
2.Grinding station(this station is optional, around can leave a space)
| Specification | Project Photo |
| Inside size | 6900×3450×2650mm(L×W×H) | |
| Outside size | 8150×3550×3100mm(L×W×H) | |
| Basement | No basement, exhaust from back wall panel | |
| Cabin system | 1. Ceiling cover frame, front and side are manual PVC curtain, up and down blue, middle transparent, thickness of curtain: 0.5mm; soft curtain two sides inside have magnet, bottom with iron ore; use aluminum alloy track sliding, equip nylon pulley and hook, between two prep areas is two pieces soft curtain.
2. Back wall 50mm thick EPS panel δ=0.426mm colorful steel plate. One pcs personal door at back wall.
3. Back wall inside equip one tool cabinet and one electrical cabinet which have 3 layers, the control panel install at middle of electrical cabinet. |
Ceiling cover frame and PVC soft curtain |
| Light | Top light: 8 units×4pcs=32pcs 36W light tube, tri-phosphor tube light, with ballast, 5mm light glass. |
Top light |
| Cabinet | Back wall exhaust, square tube frame, intake and exhaust cabin cover plate use double painted cover plate, inside fill Rockwool sound insulation material. | |
| Intake and exhaust system | Intake use one set YDW-5.6S, power: 5.5kw, air capacity: 15500m3/h. |
Centrifugal fan |
| Filter System | Pre-filter, 600G ceiling filter, fiberglass filter. |
|
| Ceiling board | 0.8mm galvanized steel ceiling board. | |
| Exhaust duct | 0.8mm galvanized steel plate, angle iron flange made by professional equipment. | |
| Electrical System | Use switch type control, main components and parts are use Schneider brand product, have light switch, fan switch, emergency stop switch, failure warning, micro electrical damper adjust etc. | |
| Trolley | Each station equip 4 sets trolley and 6 rows tracking which made of bended 2.0 thick steel plate channel and welded 30×20mm solid square steel. Trolley made of 5.0mm thick embossed plate, road wheel, axle, bearing and limit brake equipment, surface galvanized. |
Trolley |
| Install Way | Stand column installation or steel wire rope suspended ceiling installation. | |
| Voltage | 220V, 3phase, 60Hz | |
| Power | About 7KW | |
3.Primer booth
| Specification | Project Photo |
| Inside size | 6900×4000×2650mm(L×W×H) | |
| Outside size | 8300×4100×3400mm(L×W×H) | |
| Basement | Use integral type rust prevention exhaust basement, full grids made of walking deck, track support use 80*40 structural steel. |
|
| Main door | 3 folding door, size 3000×2600mm(W×H), main door frame use aluminum alloy sections, 50mm, inside and outside 0.426mm colorful steel plate, inside fill EPS panel, with tempered glass observation window and pressure lock. | |
| Emergency Door | 650×1800mm(W×H) equip pressure lock and glass observation window. | |
| Cabin system | 1. Back wall use 50mm, wide 1150mm, inside and outside 0.426mm colorful steel plate, inside fill EPS panel.
2. Two sides are powdered ceiling cover and manual PVC curtain, up and down blue, middle transparent, thickness of curtain: 0.5mm; soft curtain two sides inside have magnet, bottom with iron ore; use aluminum alloy track sliding, equip nylon pulley and hook, between two prep areas is two pieces soft curtain. |
Ceiling cover frame and PVC soft curtain |
| Light | Top light: 8 units×4pcs=32pcs 36W light tube, tri-phosphor tube light, with ballast, 5mm light glass. |
|
| Cabinet | Basement exhaust, square frame, intake and exhaust cover use double painted cover, inside fill Rockwool insulation material. |
|
| Intake and exhaust system | 1. Intake fan use one set YDW-4.5L, power: 4kw, air capacity: 12500m3/h.
2. Exhaust fan use one set YDW-4.5L, power: 4kw, air capacity: 12500m3/h, equip exhaust manual damper. |
Centrifugal fan
exhaust manual damper |
| Filter System | Pre-filter, 600G ceiling filter, fiberglass filter, active carbon. |
fiberglass filter |
| Ceiling board | 0.8mm galvanized steel ceiling board. | |
| Exhaust duct | 0.8mm galvanized steel plate, angle iron flange made by professional equipment. | |
| Heating system | Equip one set ceiling sliding rail infrared lamp, 6pcs light tube, each one 1kw, total 6kw(customer can choose). | |
| Electrical System | Use switch type control, main components and parts are use Schneider brand product, have light switch, fan switch, emergency stop switch, failure warning, micro electrical damper adjust etc. |
Control box |
| Trolley | Each station equip 4 sets trolley and 6 rows tracking which made of bended 2.0 thick steel plate channel and welded 30×20mm solid square steel. Trolley made of 5.0mm thick embossed plate, road wheel, axle, bearing and limit brake equipment, surface galvanized. |
Trolley |
| Voltage | 220V, 3phase, 60Hz | |
| Power | 15.5KW | |

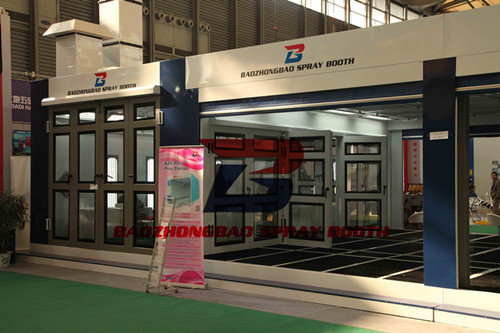

4.Topcoat booth
| Specification | Project Photo |
| Inside size | 6900×4000×2650mm(L×W×H) | |
| Outside size | 8450×4100×3400mm(L×W×H) | |
| Basement | Use integral type rust prevention exhaust basement, full grids made of walking deck, track support use 80*40 structural steel. |
|
| Main door | 3 folding door, size 3000×2600mm(W×H), main door frame use aluminum alloy sections, 50mm, inside and outside 0.426mm colorful steel plate, inside fill EPS panel, with tempered glass observation window and pressure lock. | |
| Cabin system | Back wall and ceiling panel are use 50mm, wide 1150mm, inside and outside 0.426mm colorful steel plate, inside fill EPS panel. Booth two sides use two sets electrical rolling door. Rolling door size 6000×2370mm; brake pad use aluminum alloy sandwich section, inside fill insulation PU, lifting speed is 0.2m/s, power voltage 3×380V, lifting power: 400W. |
electrical rolling door |
| Light | Top light: 4 units×4pcs=16pcs 36W light tube, tri-phosphor tube light, with ballast, 5mm light glass. |
|
| Cabinet | Back wall exhaust, square frame, intake and exhaust cover use double painted cover, inside fill Rockwool insulation material. |
|
| Intake and exhaust system | 1. Cabinet made by painted section and steel plate, galvanized steel plate cover, inside fill Rockwool material.
2. Intake fan use 2 sets YDW-4.5AL1, power: 4kw, air capacity: 12500m3/h.
3. Exhaust fan use one set YDW-5.6M, power: 7.5kw, air capacity: 20000m3/h. | Centrifugal fan
exhaust manual damper |
| Filter System | Pre-filter, 600G ceiling filter, fiberglass filter, active carbon. |
fiberglass filter |
| Ceiling board | 0.8mm galvanized steel ceiling board. | |
| Exhaust duct | 0.8mm galvanized steel plate, angle iron flange made by professional equipment. | |
| Heating System | - One set G20 diesel burner max. heating capacity is 180000Kcal/h.
Heat exchange use SUS304 good quality argon arc welding.
Whole system equip electric damper can automatically achieve from spraying to baking cycle.- Equip one set ceiling sliding rail infrared lamp, 6pcs light tube, each one 1kw, total 6kw(customer can choose).
|
sliding rail infrared lamp |
| Control System | Use switch type control, main components and parts are use Schneider brand product, have light switch, spraying switch, emergency stop switch, failure warning etc. |
Control box |
| Compressed air control box | At back wall equip one compressed air control box. |
|
| Trolley | Each station equip 4 sets trolley and 6 rows tracking which made of bended 2.0 thick steel plate channel and welded 30×20mm solid square steel. Trolley made of 5.0mm thick embossed plate, road wheel, axle, bearing and limit brake equipment, surface galvanized. |
Trolley |
| Voltage | 220V, 3phase,60Hz | |
| Total Power | 23.5KW | |

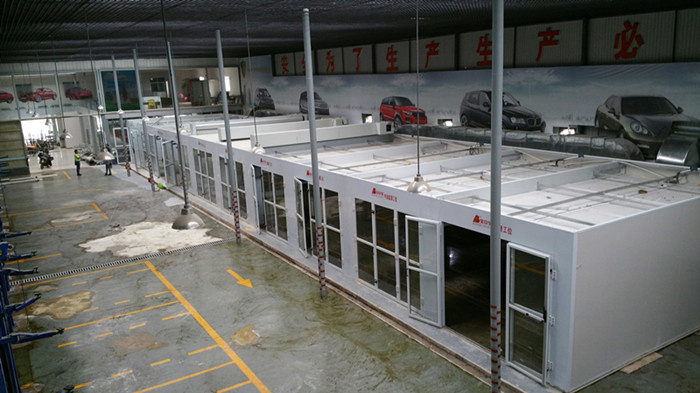

BZB painting line is designed for equipment manufacturing and sauface painting. We have been manufacturing auto painting line for 11 years up to now, please feel free to contact us.
