High Standard Customized Paint Spray Chamber Booth

Prod Model:	Customized
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

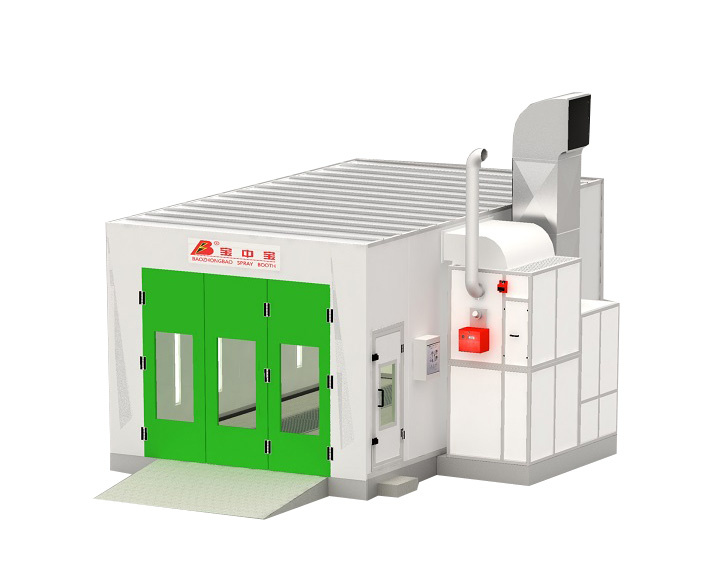

Paint spray chamber
1. CE approved
2. German Technology
3. Suitable for painting big boat, yacht
4. Factory price

Painting System:
This is a painting system suitable for yacht and other big boat for maintenance, we can meet at customer's special requirement.

Specification:
1. Heating System and air intake system:
200KW heating exchanger, Gas burner: RG5S, 260000Kcal
Air volume: 30000M^3/h Power: 11KW

2. Pipe for inlet fan and pipe for outlet fan:
Material thicker or pipe: 0.8MM, European Flange connection
Exhaust straight air pipe, Intake straight air pipe, Intake bent
Anti-rain straight exhaust air pipe

3. Exhaust pressure room and shelf

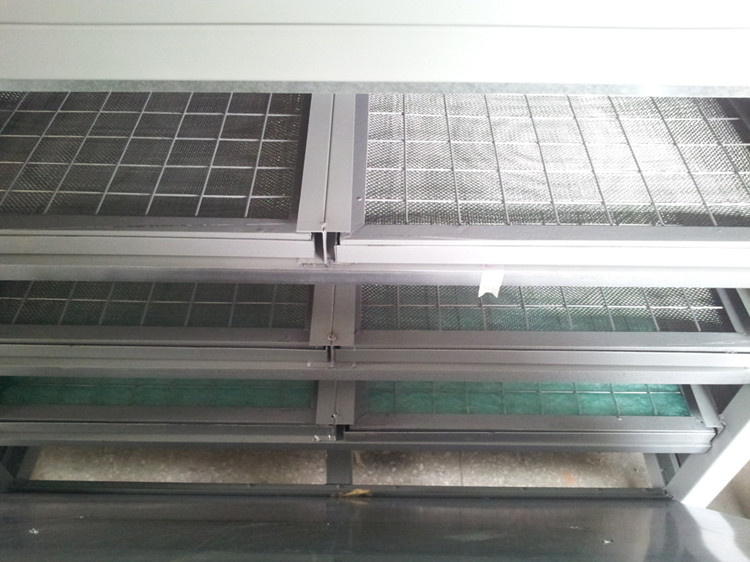

4. Exhaust air box: Molding Framework by bending, activated carbon filter

5. Outlet fan: Air volume: 30000 m3/h, power: 11KW

6. Control System

7. Box with air ven, Galvanized board.
