High Quality Two Post Parking Lift
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
The maximum lifting height can be 2100mm. The maximum lifting weight is 2700kg. This type parking lift is available for sedan and SUV.Dimension:4466*2560*3500mmWeight of parking car:2700kgSize of vehicle loading pallet:4166*2100mmMode of control:PLC control Production DescriptionPTJ201-27 two post parking lift is designed of two spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.It can park SUV or sedans. It can share the column to save space and cost. Product advantageThe maximum lifting height can be 2100mm. The maximum lifting weight is 2700kg. This type parking lift is available for sedan and SUV.The device size is according to customer's requirement.Hydraulic drive, chain balancing device to ensure the balance both ends of rise and fall.Vehicle platform fully enclosed design to avoid oil leakage polluting the bottom car.Structure all adopts laser cutting, attractive appearance, easy installation, less questions, easy maintenance.Column can be N+1 form, two sets parking lift share the same column. Saving land area, full use of space, property rights.It can be widely used in hotels, enterprises and public institutions and residential area. Protective deviceAnti-dropping device: to prevent the vehicle loading pallet from undesired disconnection.Photoelectric switch (device for checking the entrance of people and vehicles): to prevent the people from accident entering into the equipment under operation.Limited switch device: to protect the equipment running.Emergency switch: the emergency switch button is used to cut power off when there is anything abnormal during the equipment process. Specifications| Name | Two Post Parking Lift |
| Model | PTJ 201-27 |

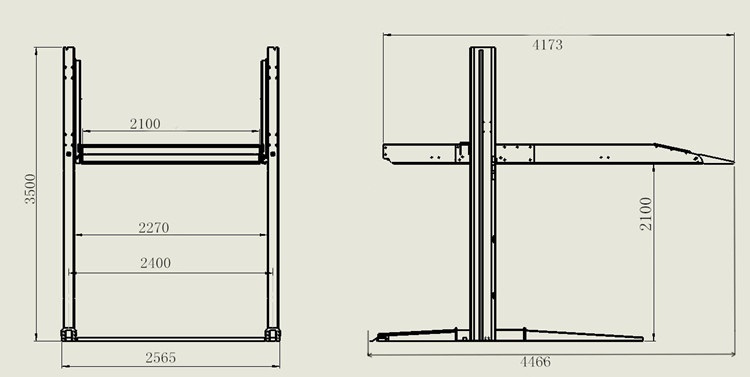

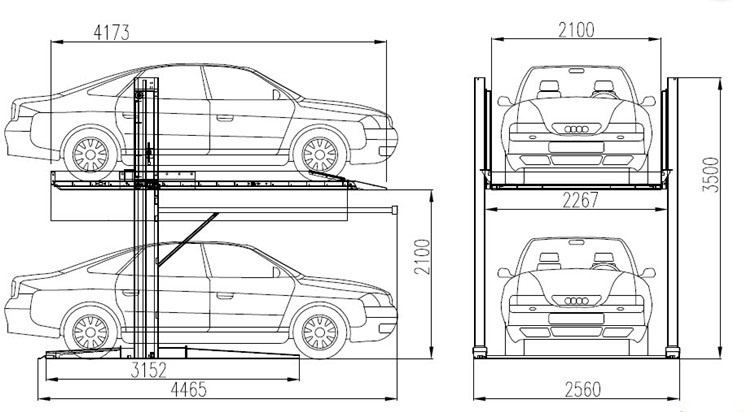

| Dimension | 4466*2560*3500mm |
| Weight of parking car | 2700kg |
| Rated speed | 2m/min |
| Lifting height | 2100mm |
| Total height | 3500mm |
| Size of vehicle loading pallet | 4166*2100mm |
| Motor | 2.2kw |
| Warming devices | Yes |
| Mode of operate | Button /Remote key |
| Mode of control | PLC control |
| Mode of drive | Hydraulic driving, chain balance |
| Electrics motor | 380v,3 phase; 220v single phase |
| Package size | 3850*1000*970mm |
| weight | 1100kg |
| 20' container | 9 sets |
| 40' container | 18 sets |
Production Configuration| | Item | Specifications |
| Steel structure | Stand column | T=5mm |
| Side beam | T=5mm |
| Sliding table | T=6mm |
| Waved plate | T=2mm |
| Power | Power unit | 380v50hz,2.2kw/220v50hz,2.2kw |
| Hydraulic tubing | Outer diameter 14mm |
| Inner diameter 6mm |
| Electrical | Contactor | 220/380V |
| Control button | 24V |
| Travel switch | 24V |
| Photoelectric switch | 24V |
| Weight Of Parking Car: |
2700kg |
| Rated Speed: |
2m/Min |
| Lifting Height: |
2100mm |
| Total Height: |
3500mm |
| Size Of Vehicle Loading Pallet: |
4166*2100mm |
| Motor: |
2.2kw |
| Warming Devices: |
Yes |
| Mode Of Operate: |
Button/Remote Key |
| Model Of Control: |
PLC Control |
| Mode Of Drive: |
Hydraulic Driving , Chain Balance |
| Type: |
Double Cylinder Hydraulic Lift |
| Certification: |
ISO |
| Design: |
Two Post |
| Lifting Capacity: |
2700kg |
