| Size: |
285/75r24.5 |
| Colour: |
Black |
| Power: |
Best |
| Transmission Type: |
Automatic |
| Emission Standard: |
No Emission |
| Tire Certification: |
DOT Smartway |
| Tire Type: |
Tl |
| Diameter: |
21''- 24'' |
| Tire Design: |
Radial Tyre |
| Certification: |
Smartway Certificae |
Product Description

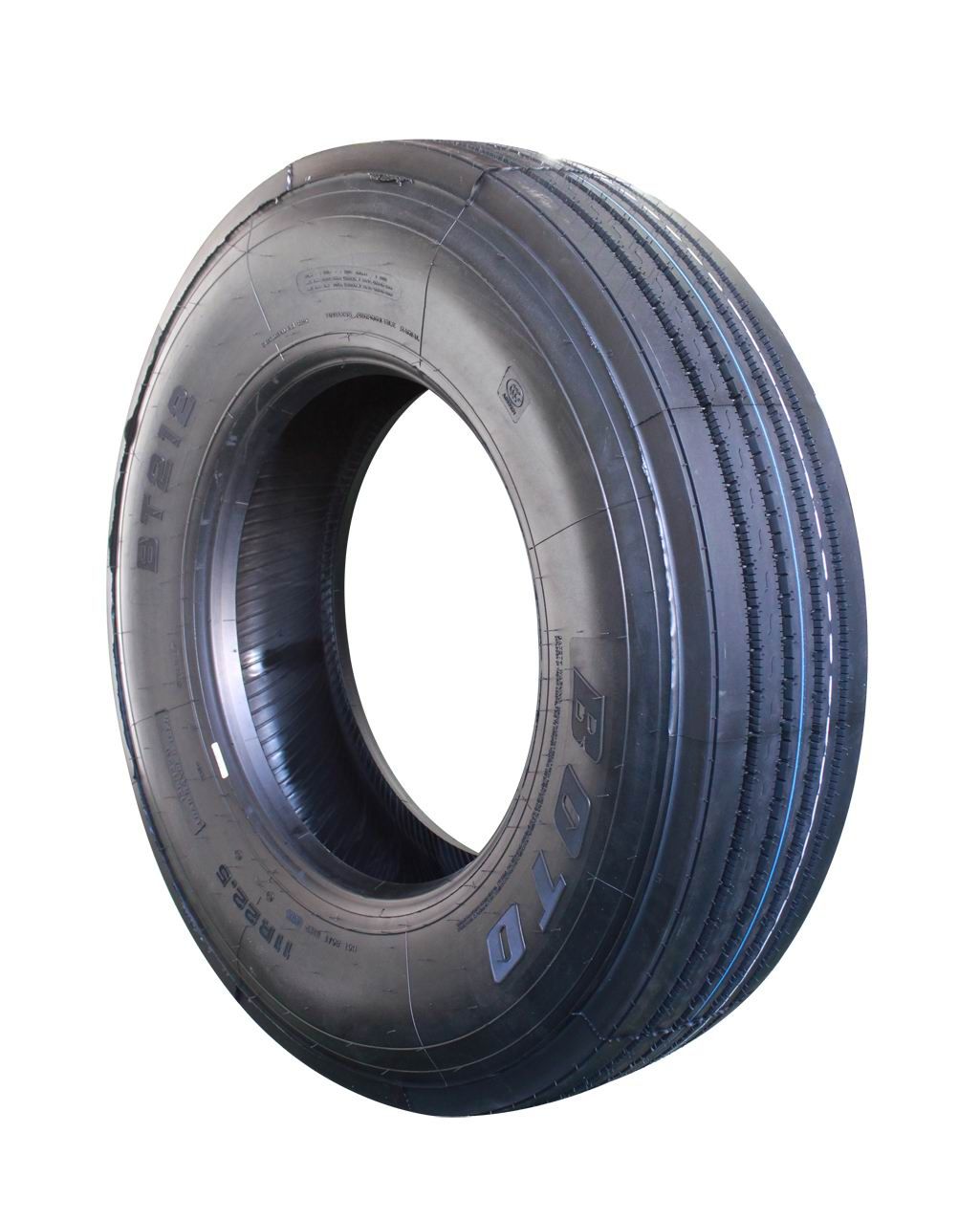

We can supply BOTO BRAND TRUCK TYRE with smartway certifcate.
Product Characters:(1) Mainly for rated load and long haul application of all position wheels, especially for steer and trailer wheels.
(2) Suitable for good road at high speed.
(3) Four straight grooves design offers excellent handling and water drainage performance.
(4) With cross sipe design to generate a good grip and low heating up performance. | 1. Payment term : 30% prepaid and the balance against B/L Copy or L/C at sight. | |
| 2. Delivert term : Within 30 working days after receipt of 30% prepaid or L/C. | |
| 3. Order Quantity : Minimum order 1×20GP. | |
| 4.Packing :exporting standard wrapping for tube tyre . No warpping for tubless tyre . | |
| 212 | rib/steer | |
| Size | Ply
rating | Loading
index | Speed rating | Max load | Pressure | Standard rim | Section Width
(mm) | Overall Diameter
(mm) | Tread Depth (mm) | Tire
Weight (kgs) | 40'HC |
| single/dual | single/dual
(kg) | single/dual
(kpa) |
| 11R22.5 | 14PR | 144/142 | M | 2800/2650 | 720/720 | 8.25 | 279 | 1054 | 14 | 54.00 | 270 |
| 16PR | 146/143 | M | 3000/2725 | 830/830 | 8.25 | 279 | 1054 | 14 | 54.00 | 270 |
| 11R24.5 | 14PR | 146/143 | M | 3000/2725 | 720/720 | 8.25 | 279 | 1104 | 14 | 58.60 | 250 |
| 16PR | 149/146 | L | 3250/3000 | 830/830 | 8.25 | 279 | 1104 | 14 | 58.60 | 250 |
| 295/75R22.5 | 14PR | 144/141 | M | 2800/2575 | 760/760 | 9 | 298 | 1014 | 14 | 52.00 | 270 |
| 16PR | 146/143 | L | 3000/2725 | 830/830 | 9 | 298 | 1014 | 14 | 52.00 | 270 |
| 285/75R24.5 | 14PR | 144/141 | M | 2800/2575 | 760/760 | 8.25 | 283 | 1050 | 14 | 54.60 | 245 |
| 16PR | 147/144 | L | 3075/2800 | 830/830 | 8.25 | 283 | 1050 | 14 | 54.60 | 245 |
| 556 | lug/drive | |
| Size | Ply rating | Loading
index | Speed rating | Max load | Pressure | Standard rim | Section Width
(mm) | Overall Diameter
(mm) | Tread Depth (mm) | Tire Weight (kgs) | 40'HC |
| single/dual | single/dual
(kg) | single/dua
(kpa) |
| 11R22.5 | 14PR | 144/142 | L | 2800/2650 | 720/720 | 8.25 | 279 | 1054 | 20.5 | 58.00 | 270 |
| 16PR | 146/143 | L | 3000/2725 | 830/830 | 8.25 | 279 | 1054 | 20.5 | 58.00 | 270 |
| 11R24.5 | 14PR | 146/143 | L | 3000/2725 | 720/720 | 8.25 | 279 | 1104 | 20.5 | 62.60 | 250 |
| 16PR | 149/146 | L | 3250/3000 | 830/830 | 8.25 | 279 | 1104 | 20.5 | 62.60 | 250 |
| 295/75R22.5 | 14PR | 144/141 | L | 2800/2575 | 760/760 | 9 | 298 | 1014 | 20.5 | 60.00 | 270 |
| 16PR | 146/143 | L | 3000/2725 | 830/830 | 9 | 298 | 1014 | 20.5 | 60.00 | 270 |
| 285/75R24.5 | 14PR | 144/141 | L | 2800/2575 | 760/760 | 8.25 | 283 | 1050 | 20.5 | 58.50 | 245 |
| 16PR | 147/144 | L | 3075/2800 | 830/830 | 8.25 | 283 | 1050 | 20.5 | 58.50 | 245 |
| 669 | trailer | |
| Size | Ply rating | Loading index | Speed rating | Max load | Pressure | Standard rim | Section Width
(mm) | Overall Diameter
(mm) | Tread Depth (mm) | Tire Weight (kgs) | |
| single/dual | single/dual
(kg) | single/dua
(kpa) | 40'HC |
| 11R22.5 | 14PR | 144/142 | M | 2800/2650 | 720/720 | 8.25 | 279 | 1054 | 9.2/10 | 51.00 | 270 |
| 16PR | 146/143 | M | 3000/2725 | 830/830 | 8.25 | 279 | 1054 | 9.2/10 | 51.00 | 270 |
| 11R24.5 | 14PR | 146/143 | M | 3000/2725 | 720/720 | 8.25 | 279 | 1104 | 10 | 55.30 | 250 |
| 16PR | 149/146 | L | 3250/3000 | 830/830 | 8.25 | 279 | 1104 | 10 | 55.30 | 250 |
| 295/75R22.5 | 14PR | 144/141 | M | 2800/2575 | 760/760 | 9 | 298 | 1014 | 10 | 50.00 | 270 |
| 16PR | 146/143 | L | 3000/2725 | 830/830 | 9 | 298 | 1014 | 10 | 50.00 | 270 |
| 285/75R24.5 | 14 | 147/144 | M | 3075/2800 | 760/760 | 8.25 | 283 | 1050 | 10 | | 245 |
| | 16 | 147/144 | L | 3075/2800 | 830/830 | 8.25 | 283 | 1050 | 10 | | 245 |
Golden Pegasus Group are one of the large-sized enterprises in China tire manufac -turing industry, comprising Qingdao Pegasus Rubber Company Limited and Qingdao Gold -en Pegasus Industrial Trading Company Limited, specialize in producing passenger car tir -e, light truck tire, radial truck tire, light-truck tires, OTR tires.
By adopting advanced international technology of radial tires, the company imported main equipments with fir -st class quality and good credit. The project has so many advant -ages such as the concentration of production sca -le, advanced technical plant, the produc -t marketplace looks to increase widely.
We has passed ISO9001: 2000 quality system Certificate and the products have PAS -sed China Compulsory C -ertification (CCC), American DOT certification and European EC -E quality certification.
Our tyres are very popular and well recognized by worldwide customers. We can supply our brand: PEGASUS BRAND TYRES, we still have good cooperation with Triangle, BOTO, ARDENT, CHILONG, FRIDERIC, WHEAL, GINSTIN, Facing competitive markets, we always insist quality first and try to be one of the leading tyre companies and build world famous brand. We're looking forwad to establishing long-term business relationship with our customers. Please visit our website: http://www.goldenpegasus.com
