High Quality Standard Double Hydraulic Cylinders Scissors Auto Lift (DX-4000A)

Name: High Quality Standard Double Hydraulic Cylinders Scissors Auto Lift (DX-4000A)
Brand: ibuyautoparts.com
SKU: 815476585
Availability: InStock
Rating: 4.3 (81 reviews)

Price:	Negotiable/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

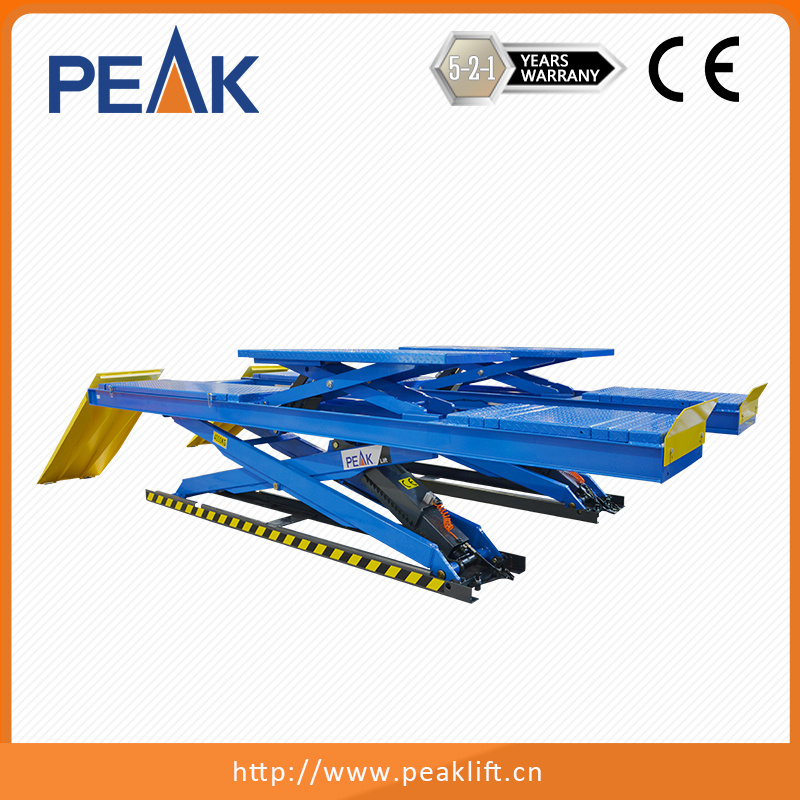

DX-4000A High Quality Standard Double Hydraulic Cylinders Scissors Auto Lift

•Capacity:4000KG
•Safety operating system controlled by 24V voltage.
•Remote control for secondly scissors.
•Double concealed scissors structure, with superior synchronization performance.
•Adjustable turntable positions
•Air released mechanical safety lock is more convenient and safer for automotive chassis maintenance
•Extra long rear slip platewith ball sets, Suitable for all kinds of vehicles.
•Low-level alarm tone brings more secure.
•Self-lubricating UHMW polyethylene sliders and bronze bush.
•Anti-explosion oil circuit device.
• Long warranty:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).

DX-4000A High Quality Standard Double Hydraulic Cylinders Scissors Auto Lift

Model			DX-4000A
Style			Scissors Lift
Lifting Capacity			4.0T (9,000lbs)
Lifting Time			55 Seconds
Lifting Height			1870mm (73 5/8")
Minimum Height			280mm(11")
Runway Length			4800mm(189")
Overall Width			2190mm(86 1/4")
Runway Width			625mm(24 5/8")
Overall Length(With Ramps)			6636mm(261 1/4")
Second Lifting Height			420mm(16 1/2")
Second Scissors Length			1606-1940mm(63 1/5" - 75")
Gross Weight			1797kg(3,961lbs)
Motor			4.0HP
Packing Dimension			4914 X 760 X 1048mm
QTY of Container			6 Units/20'GP
			12 Units/40'GP

EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!

Prod Model:	DX-4000A
Lifting Time:	55 Seconds
Lifting Height:	1870mm (73 5/8")
Motor:	4.0HP
Gross Weight:	Kg(Lbs)
Surface Treatment:	Spray-Paint
Color:	Blue
Type:	Four Cylinder Hydraulic Lift
Lifting Capacity:	4T
Certification:	CE
Design:	Scissor
Brand:	Peak

PEAK corporation is located in Foshan ( near Guangzhou, China) has over 18 years experience in the design, manufacture and global distribution of an extensive line of qualified automotive lifts including 2-post, 4-post, scissors and portable lifts. We are one of the few companies in China which our lifts are passed the CE certification, Australian Safety certification and ETL/ALI certificates.

PEAK designs its products to include features for the market demand today. Some of the technical in no vations include our Super-symmetric® , single-point safety release systems (two locks, one release), 2-dual synchronous cylinders, hydraulic lock scissors lift and many more.

PEAK has many advanced equipment such as imported NC cutting machine, automatic welding machine and CNC machining center etc. In 2014 PEAK establish new Hydraulic Department to research and produce the hydraulic parts ourselves.

At PEAK we pay strict attention to product design, manufacturing, testing and after sales support. The parts we choose and produce are on the principle of the best, such as high quality Cylinders designed and manufactured on ANSI standard, Self-lubricated sliders and Bronze bush, Aero-cables, Powder coating and strictly heat treatment technology, and so on.

PEAK employs certified welders and professional engineers to follow a strict quality control process to meet many of the world's certification requirements.

Each PEAK lift is designed for customers who seek the world-class products!
