| Prod Model: |
YS-30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ventilation: |
Full Downdraft Airflow Way |
| Air Intake: |
2×4kw Double-Intake Centrifugal Fans |
| Air Exhaust: |
1×5.5kw Double-Intake Centrifugal Fan |
| Heating: |
Riello G20 Diesel Burner |
| Voltage: |
1X220V, 3X380V, Your Special Voltages Are Accepted |
| Optional Colour: |
White, Blue, Orange and Red |
| Port: |
Huangpu Port or by Your Order |
| Main Product: |
Spray Booth, Prep Station, Infrared Curing System |
| Certification: |
CE |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Paint Booth |
| Substrate: |
Steel & Aluminum |
| Brand: |
Yokistar |
| Coating: |
Painting & Powder Coating |
| Airflow Direction: |
Full Downdraft Airflow Way |
Product Description
Model:YS-30Inside dimention:6900*3900*2650mm L*W*H
Any Size Requirements Can Be Met.

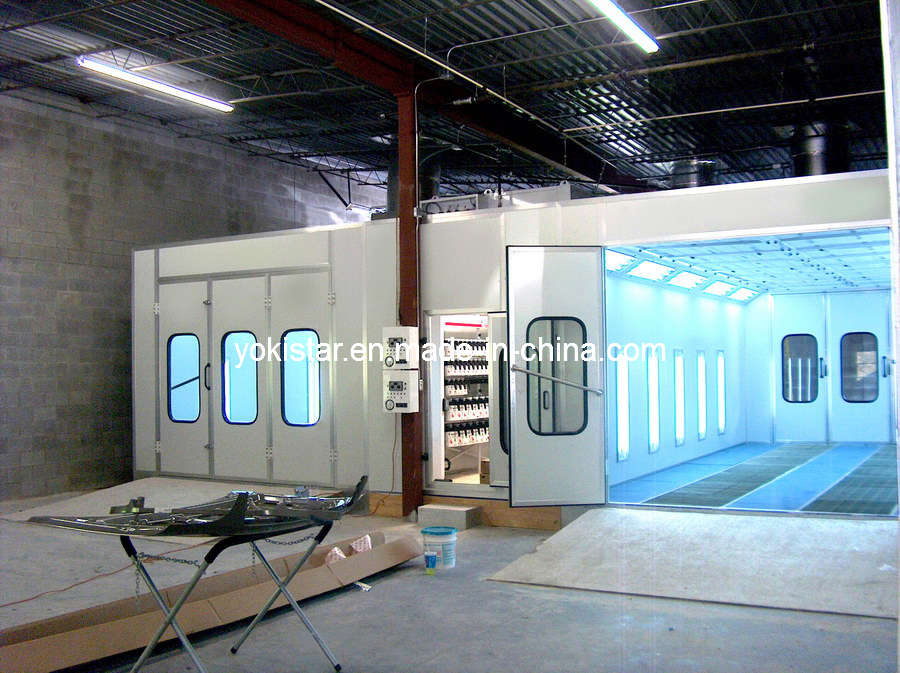

Vulgarized, full-fledged and marketableA. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.WarrantyThe goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine. YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.
| Inside dimension | 6900×3900×2650mmL×W×H |
| Outside dimension | 7000×5350×3400 mmL×W×H |

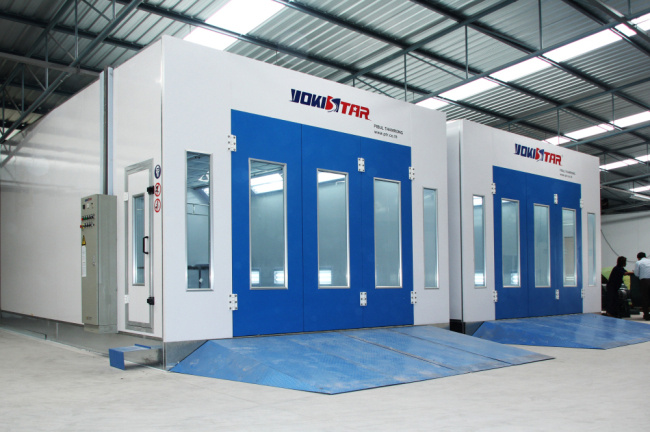

| Main door | Folding door, 3 folds, 3000×2600 mmW×H, with aluminum alloy frame, colour : blue. |
| Escape door | 1 unit, 650×1800mm W×H, colour: white |
| Basement | Galvanized steel assemble, 300mm high, quadrate steel support, 5 rows of grilles made by flat bar and round steel, then galvanized. 2 ramps, external setting, 750×2000mm/pc. |
| Wall Panels | Thickness:70mm, width:1150mm, tongue and groove structure, 0.376mm colour steel with 50mm thick polystyrene (EPS) insulation inside, colour: white. |

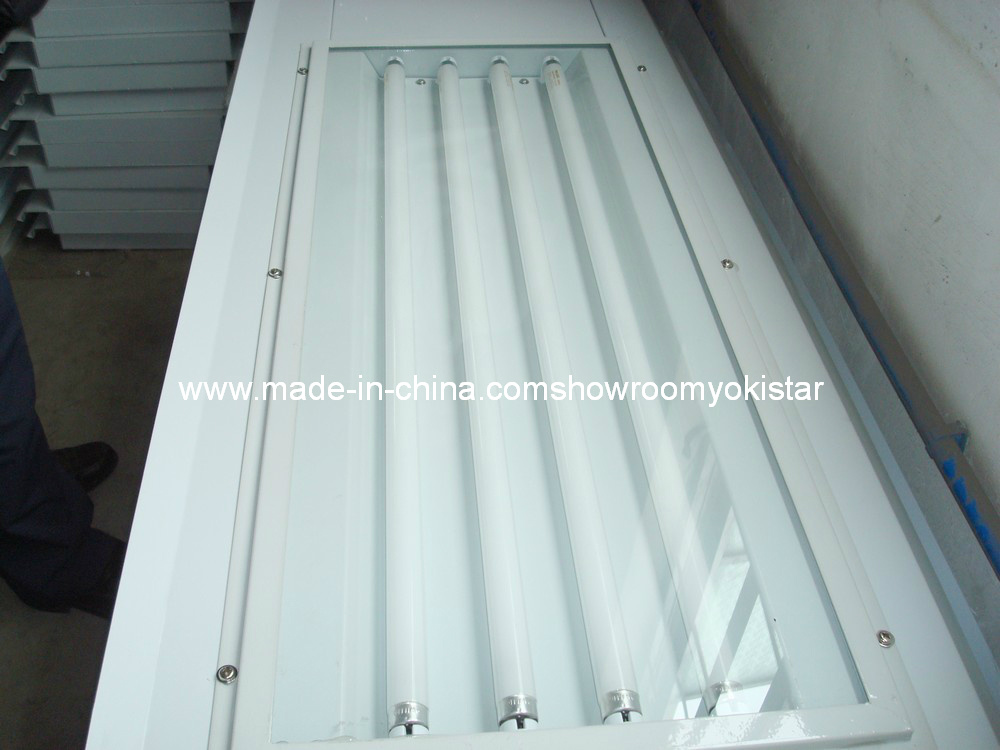

| Lighting | Ceiling Lights: 8Units×4Pcs=32Pcs×36W, with electronic ballasts, lighting boxes are powered coated.
Side Lights: 8Units×2Pcs=16Pcs×36W, with electronic ballasts, vertically set, lighting boxes are powered coated. |
| Generator setting | Intake air from back upper direction, exhaust air from back upper direction galvanized steel molding frame; white coated steel outside, galvanized steel inside, filled with heat preservation material in the middle. |
| Intake and Exhaust air system | 2×4KW double-intake centrifugal fans for intake air, model YDW4.5L1, air capacity for each fan: 12500m3/h. |
| 1×5.5KW double-intake centrifugal fan for exhaust air, model YDW4.5S, air capacity: 16000m3/h, with manual damper for exhaust air. |
| Heating system | RIELLO G20 diesel burner, stainless steel heat exchanger, electric damper actuates from spraying to baking cycle. Max. heating productivity: 20000kcal/h. |
| Filtering system | Pre-filter, ceiling filter, fibreglass filter, activated carbon filter |
| Roof Plates | Galvanized steel plates |
| Control system | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter. All motors are normal start. |
Guangzhou YOKISTAR Co., Ltd. (YOKI STAR for short) is specialized in spray booths, infrared lamps, prep stations, equipments for industrial painting, high temperature drying which can supply design as well as manufacturing service.
Located in BaiYun district of GuangZhou city, YOKI STAR occupies 25000 square meters area, owns around 200 employees which is convenient to the new Baiyun airport (20 minutes by car) and the railway station (30 minutes).
As a professional designer and manufacturer with target in 'To be the best, but not to be the biggest', YOKI star succeeds to international advanced design standards and manufacturing technologies, follows international quality management and control system, produces first-class professional products of the world and shares with friends all over the world.
The products of YOKISTAR can be used widely for automobile maintenance, vehicles manufacturing, machinery manufacturing as well as trains, planes and furniture. Our products are popular in European Union, North America, South America, Middle East, East and South Asia, Africa, and have established completely sales system all around the world. YOKISTAR aims to be the spraying and baking equipments manufacturer with leading brand in the world, and to become modernized enterprise with international competitive advantage.
YOKISTAR is an ideal cooperator who deserves your reliance.
