| Prod Model: |
BZB-8400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
as Require |
| Voltage: |
as Require |
| Certification: |

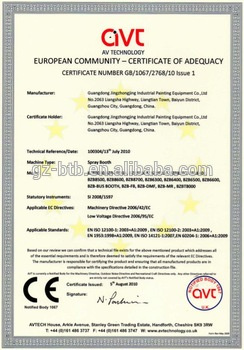

CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Bzb |
Product Description

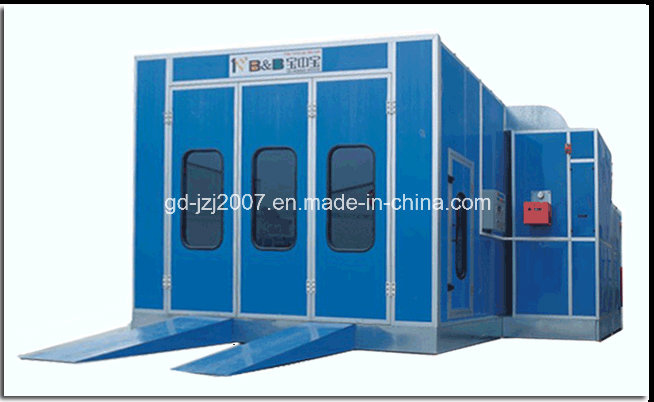

CE approved car paint chamber:
Features:
1. For car paint/baking.
2. With large air circulation.
3. Toughened glass windows on the wall of the cabin.
Below please kindly find the specification of BZB-8400 car paint chamber; This is a very popular model among our customers oversea.
Specification:
Inner Size: 6.9x4× 2.65m
1. 50mm EPS heat-insulated wall panel and galvanized steel plate for roof panel
2. Air-inlet fan: 2x4kw Blowing capability: 24000m3/h
4. Air exhaust fan: 1*5.5KW, blowing capacity: 15000m3/h.
5. Micro computer control system
6. Lighting: 32piecesx36W ceiling lights, 16piecesx36W side lights.
7. Burner: Riello G20, 180000kcal/h.
BZB 8400 for water-based paint | | | | |
| External Size (mm) | 7000x5560x3430 |
| Internal Size (mm) | | | | | | | 6900x4000x2800 | | |
| Front Door | | | | | | | 3000(W)×2700(H) | | |
| Total Power | 21kw |

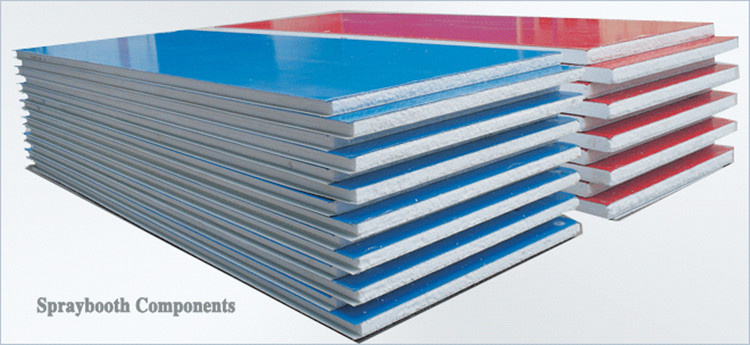

| Cabin System | 1.Wallboard | EPS (epispastics polystyrene)Colorful Steel Skin Boards,50mm Thick, Tongue & Groove Style,Compound Construction.Anti-flame and Heat-Insulation Galvabized Roof Panel |
|
|
| 2.Basement | Galvanized Steel Sheet and Square Steel Pipe assembling, Two Rows Grid & Three Embossed Plate |
|
| 3.Ramp | Three Embossed Steel Plates,each 900mm wide |
| Air Intake and Exhaust System | |
|
| Inhaling Ventilator | Model: YDW 4.5L1 | Exhaust Ventilator | Model: YDW 5.6S |
| Blower capacity: 12000m 3 /h | Blower capacity:15000m 3 /h |
| Pressure: 815Pa | Pressure: 810Pa |
| Rolling speed: 900rpm | Rolling speed: 900rpm |
| Power: 4kw | Power: 5.5kw |
| Quantity: 2 sets | Quantity: 1set |
| |
| Air Volume: 24000m 3 /h; Air Speed: 0.35m/s |
| Air Purification System | Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter imported from Holland can Capture Granules Bigger than 4μm. The floor filter is Multi-Layer Fiberglasss Filter imported from Italy.The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Balance Gauge, TSP≤1.4mg/m 3 |
|
|
|
|
|
|
|
| Heating System | 1.Burner | Italy Riello Brand,G20 Diesel Burner, 180000Kcal/h, 10N Damp Motorner, 180000Kcal/h, 10N Damp Motor |
|
|
| 2.Heat Energy Converters | Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85% |
|
|
| Max Temp:80centi degree, Heating Time: 4-6min(20-60 centi dgree), Fuel Consumption: 4-5kg/vehicle |
|
| Light System | Ceiling Light: 24 pcs 36w Philips Lamp; Bottom Light: 16 pcs 36w Philips Lamp, 900 Lux |
|
|
| Electronic controlling system | Micro-Computer Programme Controlling, Spray & Baking Switch, Light Switch,Emergency Stop, Breakdown Alarm |
|
| Environmental conservation System | active carbon filter,the outlet of exhaust gas comforms to GB16297-1996 National Standard. |

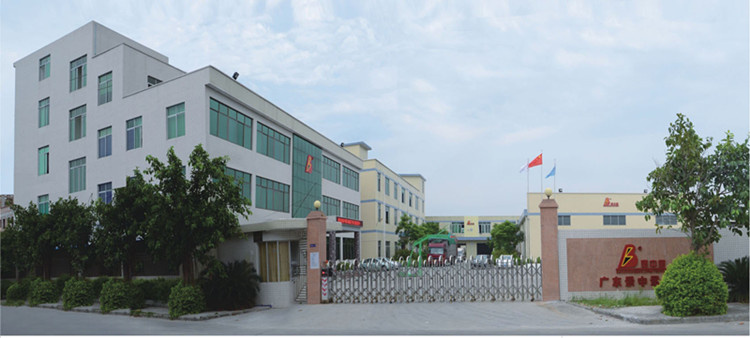

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.
Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.
It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
