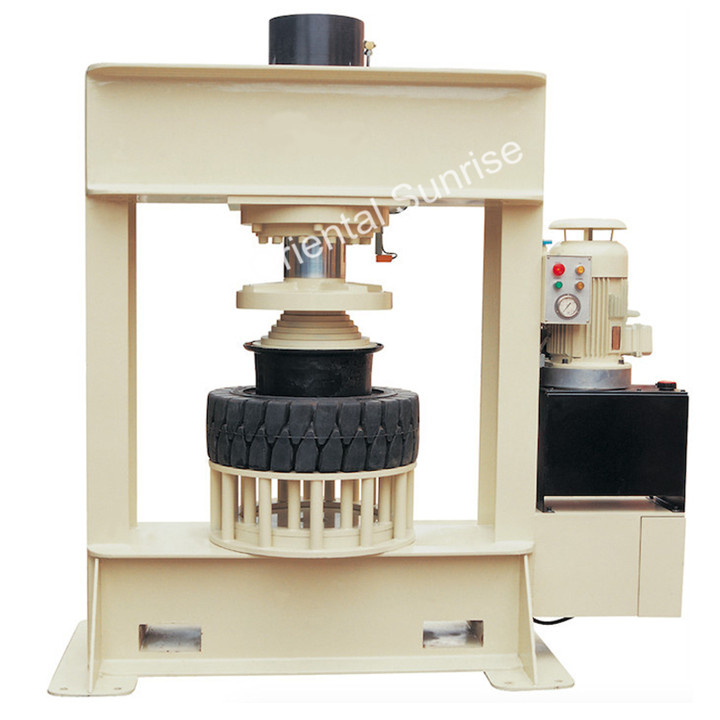

High Quality Hydraulic 100 Ton Solid Tyre Press Machine

Name: High Quality Hydraulic 100 Ton Solid Tyre Press Machine
Brand: ibuyautoparts.com
SKU: 734441082
Availability: InStock
Rating: 4.4 (20 reviews)

Price:	US $ 3000-6000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

We provide tyre presses for all sizes of solid tyres to be fitted to industrial wheels; our presses are manufactured to the highest standard using the finest quality of steel.

All presses are manufactured to CE standards and are supplied with full operating instructions, tools can be supplied for all fitments up to 33 inches for replacement, or original equipment when purchasing a new tyre press.

The Features of our Hydraulic Forklift Tire Press

Large cylinder rod that provides platen stability and longer seal life
It has a Pressure Regulator to limit rim pressure
It has a high capacity Hydraulic oil reservoir
With a low pressure hydraulic system that maintains lower oil temperatures resulting in safety and efficiency
It has a Cylinder activation that is fingertip controlled and the more the hand lever in engaged the more ram movement is accelerated.

Press Specification:

Capacity		100T	125T	160T	200T
Input Voltage	V	380V	380V	380V	380V
Cylinder Stroke	mm	500	500	600	800
Operating Pressure	mpa	20	20	25	28
Motor	kw	5.5	7.5	7.5	11
Working Platform Dimension	mm	1050x600	1250x600	1450x700	1850x800
Press Dimension(LWH)	mm	1400x600x2100	1600x600x2100	1850x700x2300	2300x800x2300
Weight	kg	1340	1400	1600	3000

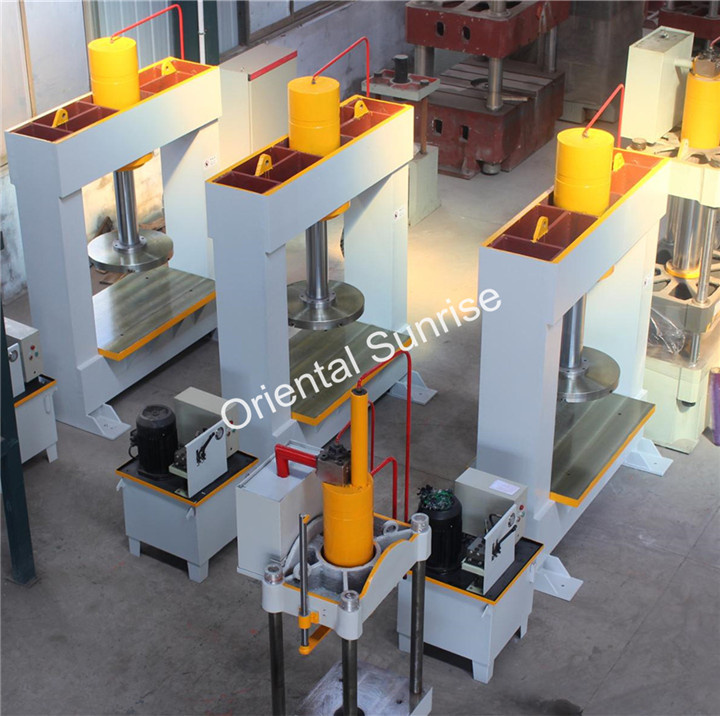

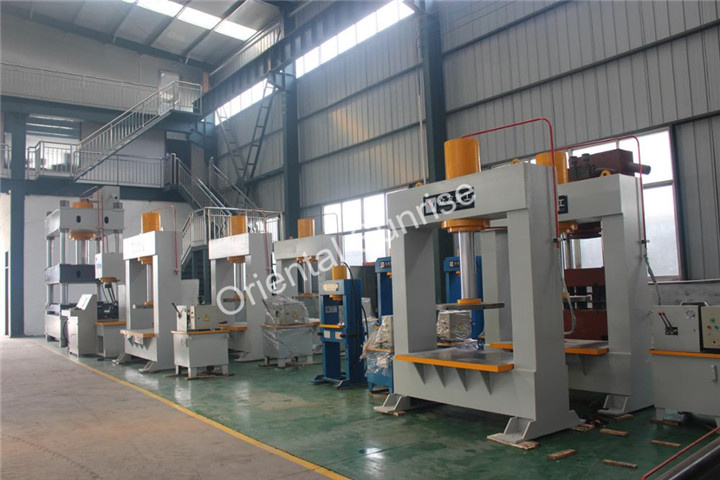

Press Plant:

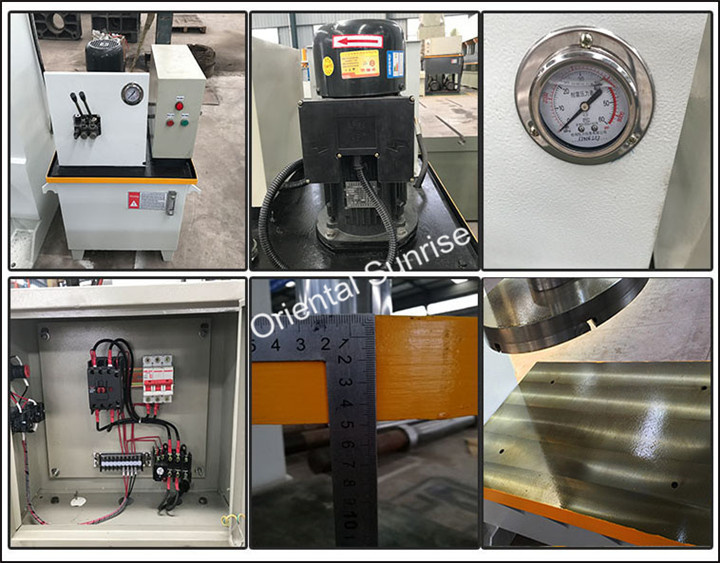

Parts Detail:

Contact:
Jason
Mob: +86 158 0659 6262

Prod Model:	100ton
Voltage:	380V
Stroke:	400-550mm
Capacity:	1000kn/1200kn/1600kn/2000kn
Pressure:	20MPa
Motor:	5.5kw, 7.5kw
Certification:	ISO
Condition:	New
Power Source:	Hydralic

Oriental Sunrise Corporation Limited is a professional tyre manufacturer located in the beautiful seaside city Qingdao of Shandong Province for years.

Specialised in OTR Tyre, Industrial tyre, Solid and Pneumatic forklift tyre, truck tyre, car tyre, not only relying on advanced technology, world class production and testing equipments, but also the spirits to put the best possible tires on the road and the desire to satisfy customer's expectation.

Nowdays, we have got most certifications in the tire industry, including DOT, ECE, CCC, ISO9001, REACH, S-MARK, TS16949, GCC, BIS, SMARTWAY, INMETRO, SNI, SASO, SONCAP, and etc.

Products exported to North America, South America, Europe, Middle East, Australia and South East Asia countries, customers are very satisfy with tire performance. Especially for port tire, quality stable and service is much longer, have advantage technology from Japan and Taiwan and tens of years experience.

Our attitude is quality first, and have long term cooperation with our business partner and grow together.
