High Quality Economical Paint Spray Booth in China

Name: High Quality Economical Paint Spray Booth in China
Brand: ibuyautoparts.com
SKU: 706433175
Availability: InStock
Rating: 4.9 (61 reviews)

Price:	US $ 3500-6850/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZB-8200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

This is BZB spray booth factory established since 1999. We can totally undertake the design, manufacturing of customized spray booth, prep stations, bus booth, painting line, etc.
The below is a spray booth specially designed, with European style turbine fan, with heat-insulation rock wool panel for the wall and for the roof.
We provide one year's free after-sales service for our customers. If you have any interest, please do not hesitate to let us know.

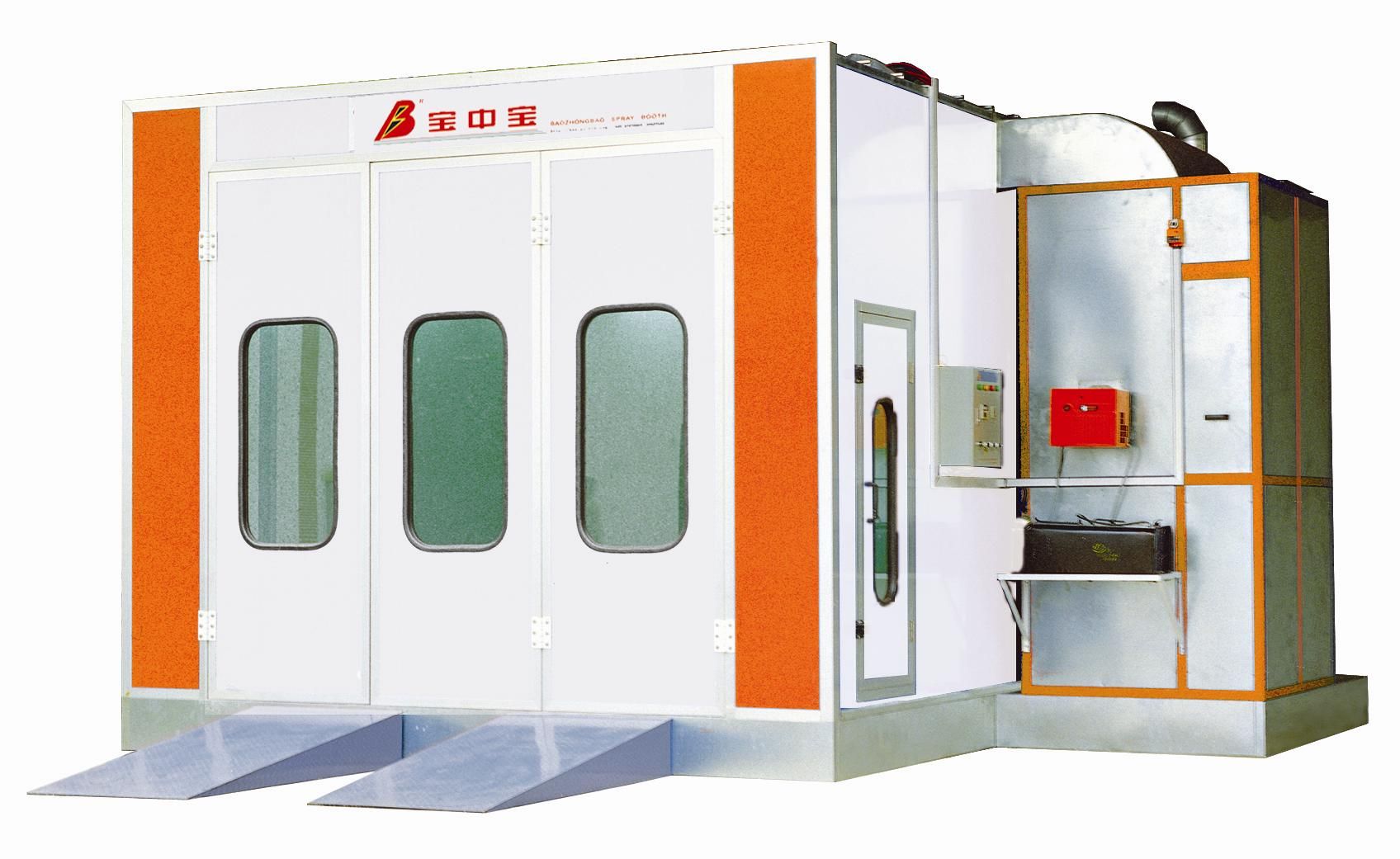

BZB-8200 MODEL economical paint booth
External size(mm)		7000× 5560× 3430
Internal size(mm)		6900× 4000× 2800
Front door		3000(W)× 2700(H)
Total power		10kw
Cabin System	1. Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards, 50mm Thick, Compound Construction, Anti-flame and Heat-Insulation, Handiwork Door, Galvanized Steel Roof Panel
	2. Basement:	Two Grid& Three Embossed Plate, Galvanized Steel Sheet Construction, Two Ramps made of embossed plate, each 600mm wide.
Air Circulation System	Inlet Fan	Capacity: 12000m 3 /h
		Power: 4kw/set
		Quantity: 2sets
	Air Volume: 24000m 3 /h; Air Speed: 0.35m/h
Air Purification system	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μ m. Ceiling Filter Capture Granules Bigger than 5μ m. The floor filter is fiberglass filter. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. TSP≤ 1.4mg/m3
Heating System	1. Burner	Italy Riello Brand, G20 Diesel Burner, 180000Kcal/h.
	2. Heat Energy Converters	Stainless Steel, Argon Arc Welding. The Heat Exchange Rare 85%
	Max Temp: 80 centi degreeHeating Time: 4-6min(20-60 centi degree), Fuel Consumption: 4-6kg/vehicle, 10N Damp Motor
Lighting System	Ceiling Light: 32 pcs 36w Philips Lamp; 800Lux
Electronic Controlling System	Micro Computer Programe Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
Environmental system	optional environmental cabin

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
