| Prod Model: |
4D55 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia |
| Type: |
4D55 |
| Diameter: |
91.1mm |
| Comp Diameter: |
48.8mm |
| Pin: |
29*75mm |
| Surface Treatment: |
Chromeplate/ Nitride/Tinplating |
| Remark: |
Alfin |
| Package: |
Neutral Packing& Customised |
| Delivery: |
3-7 Day After Payment |
| Available: |
4D30 4D31 4D32 4D33 4D34.. |
| Brand Name: |
Upac |
Product Description

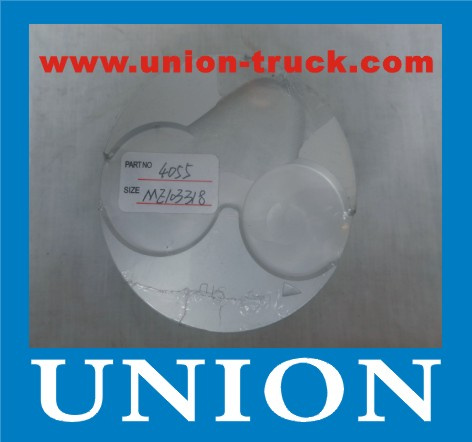

High Quality Diesel Engine Piston Kit 4D55 Diameter 91.1mm for Canter Mitsubishi
MITSUBISHI 4D55 piston kit
MITSUBISHI engine parts 4D55
MITSUBISHI engine spare parts 4D55 pistons
MITSUBISHI truck engine 4D55 piston ring
MITSUBISHI truck engine parts 4D55 piston rings
MITSUBISHI truck spare parts 4D55 piston ring set
MITSUBISHI diesel engines 4D55 Cylinder Liner
MITSUBISHI 4D55 Cylinder Liner Kit
MITSUBISHI 4D55 engine parts
MITSUBISHI 4D55 sleeve
MITSUBISHI 4D55 piston
REMARKS: ALFIN REINFORCED
Specification MITSUBISHI
4D55/4D56
Application: TRUCK
No. CyI: 4
Diameter: 91.1MM |
|
|
| Piston | OEM No. | Compress Height | Total Length | Pin Size | Feature |
MD050021
MD103318 | 48.7 | 88.50 | 29x74 | |
|
| Piston Ring | OEM No. | Size1 | Size2 | | |
| MD050395 | 2.5+2.0+4.0 | | | |
|
| Cylinder Liner | OEM No. | Size | Flange | | |
| MD050430 | 91.1x94.1x165.0 | | | |
|
| Engine Bearing | OEM No. | Main Bearing | Con Rod Bearing | Bush | |
| | MD050360 | MD026430 | MD050009 | |
|
| Engine Valve (IN) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| MD083661 | 40.0 | 8.0 | 136.5 | |
|
| Engine Valve (EX) | OEM No. | Head Diameter | Stem Diameter | Total Length | |
| MD083662 | 34.0 | 8.0 | 136.5 | |
|
| Valve Seat | OEM No. | | | | |
| | | | | |
|
| Valve Guide/Sub Parts | OEM No. | | | | |
| | | | | |
For Mitsubishi engine, we can offer the following models:4D55 4DR5 6DR5 S4E 4M40 4D30 4D31T 6D31T 6D31 S6KT 4D34T 4D32 4D33 4D35 6D14 6dB 6D15 6D16 6D20 6D22 6D24 6D22 8DC6 8DC8 8DC9T 8DC10 8DC11
We also have other brands:
Mazda, Nissan, Mitsubishi, Hino, Isuzu, Toyota, Komatsu
Remarks: 1. Advanced technology, superb quality, reliability and honesty, satisfactory service
2. Reasonable price
3. Considerate after-sales service
4. Safe and fair cooperation with us.
5. We strictly adhere to OEM quality. Same quality and service in domestic and overseas markets.
We also have other brands:Mazda Nissan Mitsubishi Hino
Isuzu Toyota Komatsu
Our main products: Piston, piston ring, cylinder liner
Material:
Piston: ZL109 Aluminum Alloy, Alloy cast iron
Piston Ring: Cast iron, Alloy, Steel
Cylinder Liner Material: Boron-containing Alloy Cast Iron, seamless steel pipe
Structure and surface treatment:
Piston: Top anodic oxidation, Alfin, skirt printed by silk screen, Skirt sprayed graphite, Tin-plated, oil cooling channel or gallery, Invar inserting,
Piston Ring: Chrome-plating, Line-honing, nitridation, phosphating, Tin-plating, Electrophoresis MOS2,
Cylinder Liner: Dry, Wet & Air Cooled Blocks
More information of our companyGuangzhou Union Auto Parts Co., Ltd is dedicated to providing the best products and best service to you. We are energetic and compassionate to make our cooperation flourish and last forever. Our motto is advanced technology, superb quality, reliability and honesty, satisfactory service.
| Engine Model | 4D55 |
OEM No.
PISTON
PISTON RING
LINER | MD103318
MD050395
MD103648 |
| CYL DIA | Φ91.1mm |
| # OF CYL | 4 |
LENGTH
PISTON
LINER |
88.7mm
165mm |
| COMP DIST | 48.7mm |
| COMP RING | 2.4mm-2mm |
| OIL RING | 4mm |
| PIN DIA | 29mm |
| PIN LENGTH | 75mm |
| COMB CHAMBER | --------------------------- |
Guangzhou Union Auto Parts Co., Ltd established in 2000, invested two factories: One is piston ring factory, the other is piston factory, was one of the biggest engine parts manufacturers and suppliers in Guangzhou. And we supplied piston and ring to these truck engine assembly factories. (JAC, JMC, ISUZU, FOTON, DFAC, FAW etc) Meanwhile, we attached great importance to after-sale service and got distributors among 15 provinces in China. In 2007, the export department in Guangzhou was established with an efficient and united team. Export staff aimed at providing professional solution to engine parts repairing for customers domestic and abroad through exhibition and online service. In 2009, the second largest liner factory of China chose Union team developing oversea market. We are committed to our customers supplying high quality engine parts to meet customer's needs. We do believe that quality means the life of enterprise. And we are striving to be the best manufacturer and supplier of engine parts from a global view.
Our main products are diesel engine pistons, piston rings and cylinder liners which are mainly applied to light trucks, heavy-duty trucks, buses and construction machines engines like YUCHAI, WEICHAI, DACHAI, XICHAI, CHAOCHAI, YANGCHAI, YUNNEI, YANGDONG, XINCHANG, JIANGHUAI, DONGFENG CUMMINS etc. Adopting advanced technique and high quality management system with special laboratory, our products get international approval, such as ISO9001, TS16949 etc. And enjoy a very good reputation among customers in domestic and overseas market. In addition, we can provide OEM service according to customer's technical drawings and requirements for engine parts. (ISUZU, HINO, Nissan, MITSUBISHI, KOMATSU, YANMAR, DAEWOO, HYUNDAI, KIA, CUMMINS, CATERPILLAR etc)
OUR ADVANTAGES (Factory Background)
The first piston ring factory of China for diesel engine started in 1943 with annual production of 40 million pieces rings diameter range from 65mm to 400mm.
The largest piston factory in Asia with annual production of 6 million pieces piston diameter range from 65 mm to 400mm.
The second largest liner factory in China with annual production of 10 million pieces liner diameter range from 65mm to 250mm.
Advanced technology and scientific administration for quality guarantee, professional sales team to avoid misunderstanding and mistakes, quick production and fast delivery for target market share and protection. The best strategic partner of one-stop cylinder liner kit purchase solution for customers domestic and abroad.
