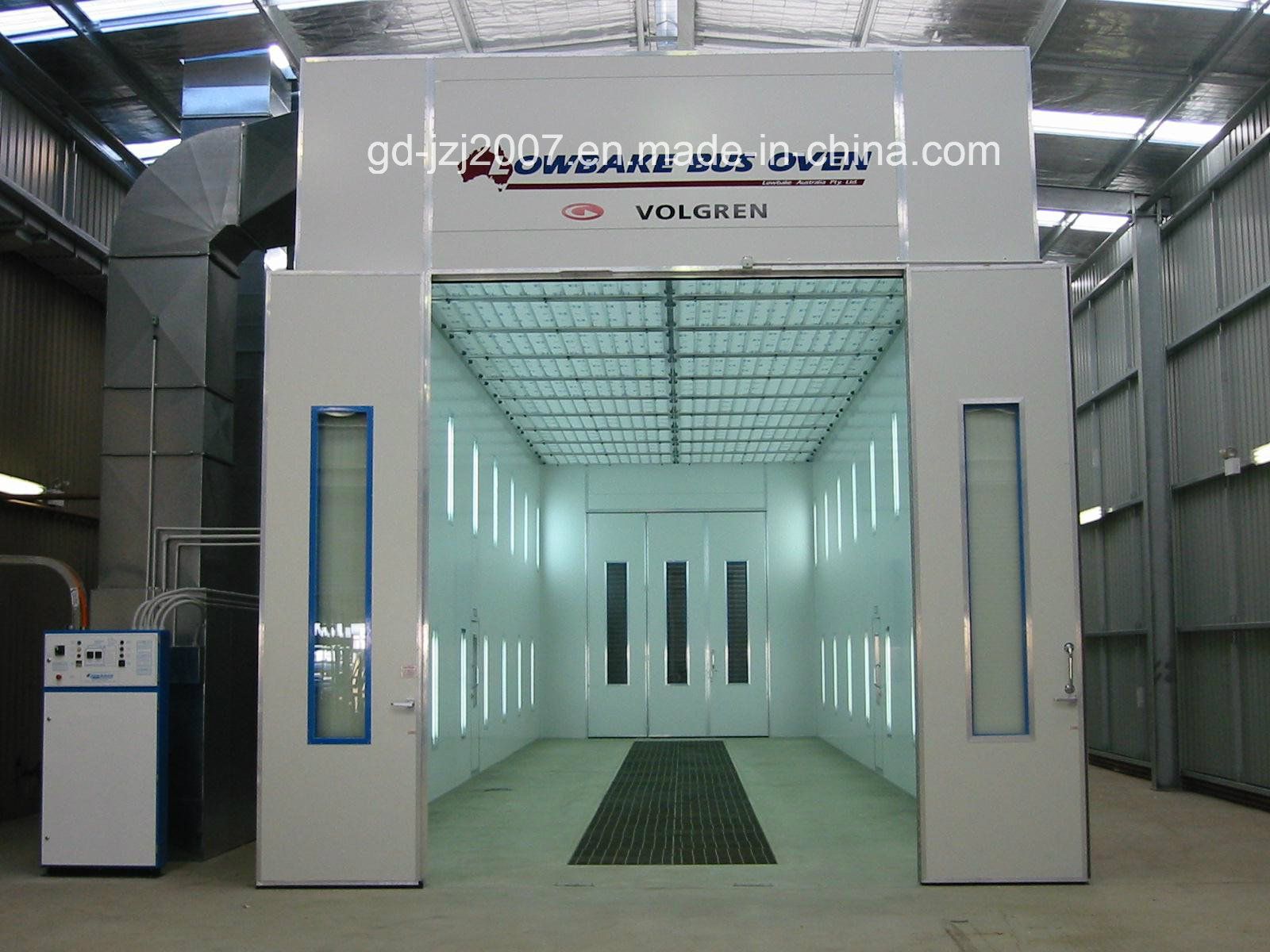

High Quality Customized Bus Bake Oven

Prod Model:	Customized
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

Bus bake oven, also called bus spray booth, BZB spray booth factory is a spray booth manufacturer and can design all kinds of spray booth suitable the customes' requirements. Please do not hesitate to contact us.

Specifications

1. Spray Booth-Truck bus spray booth

2. CE and ISO approved

3.4 sets of Riello RG5S diesel burner

4. Wall panel: 75mm thickness

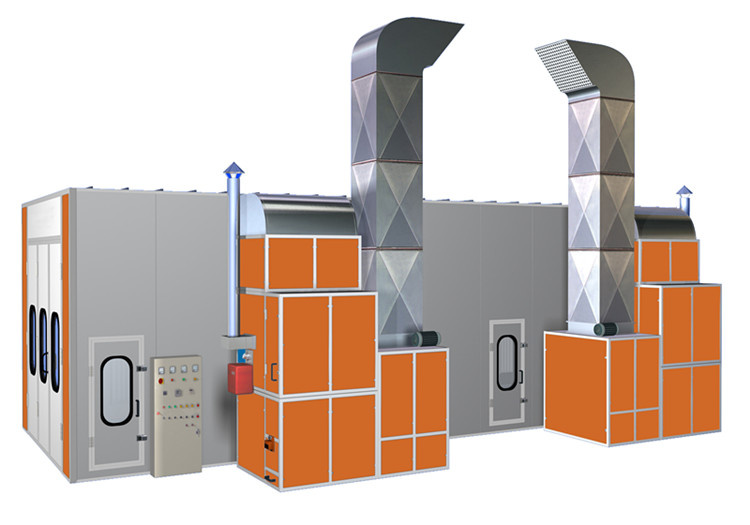

Spray booth /Truck Bus Paint Booth/ Baking booth- BZB-FB20 ( CE )

External Size (mm): (L) 20200 x (W) 8850 x (H) 5600

Internal Size (mm): (L) 20000 x (W) 5000 x (H) 4800

Main Door Size (mm): (W) 4000 x (H) 4800

Air Flow (m3 /h): 24000 x 4

Air Speed (m/s): 0.3-0.5

Operating Temperature (° C): 60 ~ 80

Power (kw): 61

Vehicle Suited: Truck and Bus

Main features:

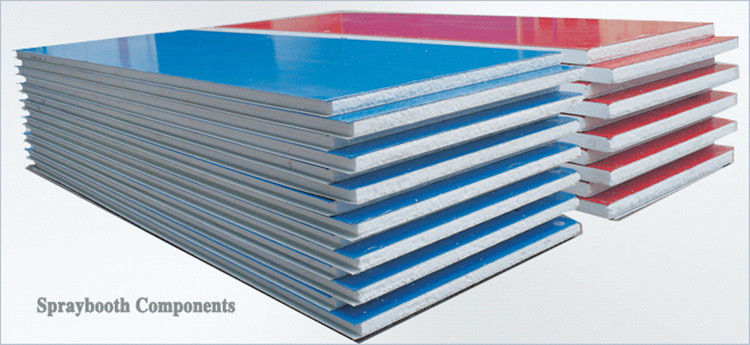

1. Wallboard: Sandwich style EPS (epispastics polystyrene) 75mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.

2. Door: 4 PCS of front doors with special rigid frame. Size: 4000(w) x 4800(h). 2 PCS of emergency doors.

3. Air Intake System (4sets): Each set consists of 2x4kw intake fan. Total 8 units of 4kw intake fan. BELIMO 20N electric damper.

4. Air Exhaust System (4sets): Each set consists of 1x5.5kw exhaust fan. Total 4 units of 5.5kw exhaust fan. Multi-layer fiberglass filter. Exhaust air from basement or two sides of wallboard.

5. Heating System (4sets): Each set consists of 1 unit Italy Riello G20 diesel burner, 200000Kcal/h. Total 4 units of burners, 800000Kcal/h. The heat exchanger is made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency.

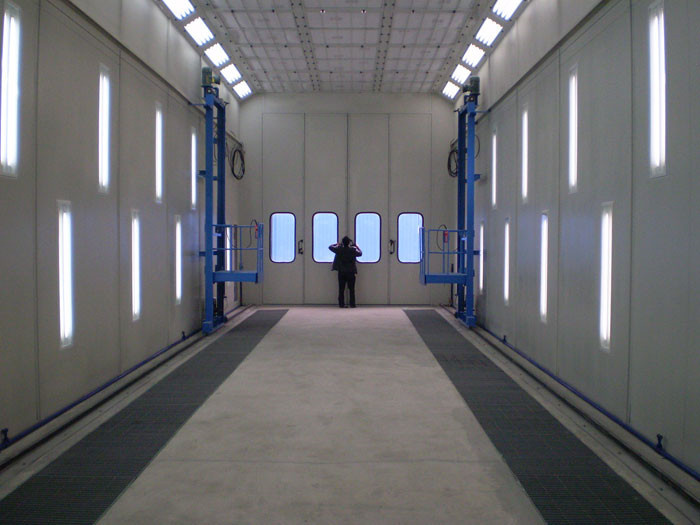

6. Lighting System: Ceiling light has 24 units x 4 PCS of 40W lamps. Side light has 31 units x 2 PCS of 40W lamps. Total 158 PCS of 40W lamps. 900 Lux.

7. Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μ M. Ceiling filter capture granules bigger than 5μ M. The air cleanliness in the working environment can reaches 98%
