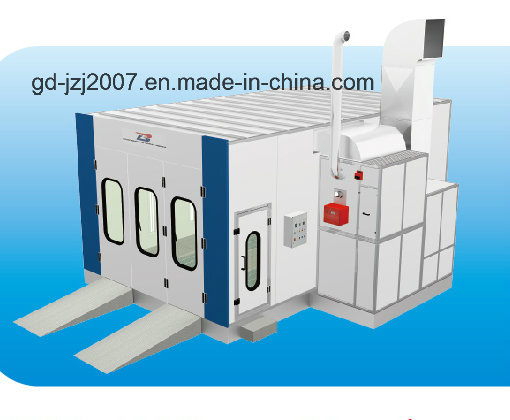

High Quality Car Spray Paint Baking Booth

Name: High Quality Car Spray Paint Baking Booth
Brand: ibuyautoparts.com
SKU: 699522722
Availability: InStock
Rating: 4.9 (57 reviews)

Price:	US $ 4500-7899/Set
Trade Terms:	others
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZB-AF
Markets:	Africa
Color:	White,Red,Orange,Blue.......
Voltage:	as Require
Certification:	CE
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

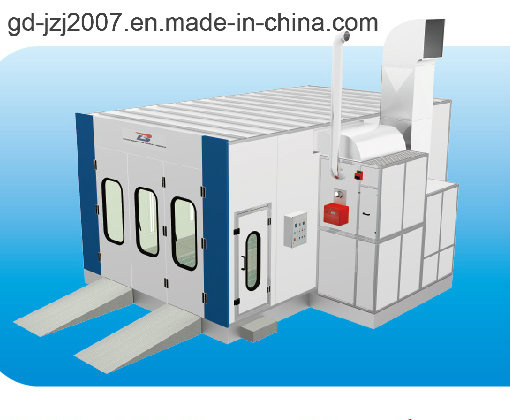

BZB-AF Spray booth 6.9m*4m*2.65m

Outside dimension:7000× 5560×3430mm(L×W×H);
Inside dimension: 6900×4000×2650mm(L×W×H);
Front door dimension: 3000×2600mm(W×H);
Working door dimension: 800×2000mm(W×H);
Cabin system:
1) Wall panel: 50mm thick flame-resistant and heat-preserving EPS board; 0.426 thick colored steel.
Roof panel: galvanized sheet;
2) Basement: steel structure base; two line grilles, three line diamond plates; height is 280mm; 600mm width two ramps;
Air circulation system:

Inhaling Ventilator	Model: YDW-4.5AL	Exhaust Ventilator	Model: YDW-4.5L
	Blower Capacity: 22000m³/h		Blower Capacity: 14000m³/h
	Pressure: 800Pa		Pressure: 800Pa
	Rolling Speed: 900rpm		Rolling Speed: 900rpm
	Power: 3kw		Power: 4kw
	Quantity: 2sets		Quantity: 1sets

One set automatic damper, 10N actuator
Generator: back upper intake air,back up extract air,quadrate steel frame,coated steel;
Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter;
Heat system: stainless steel SUS304 heat exchanger, RIELLO G20 diesel burner one stage, heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle; oil consumption 4~6L/set; the heating time is 5~7 minutes; Max heating temperature:80degree;
Lighting system:≥1000Lux
Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W ; Side lights: 4Groupsx4Pcs=16pcs x 36W
Glass: all glass is clear tempered glass.
Control box: Micro-computer programmed controlling, Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, emergency stop, breakdown alarm;
Total power: 15KW

Drawing:

Spare parts:

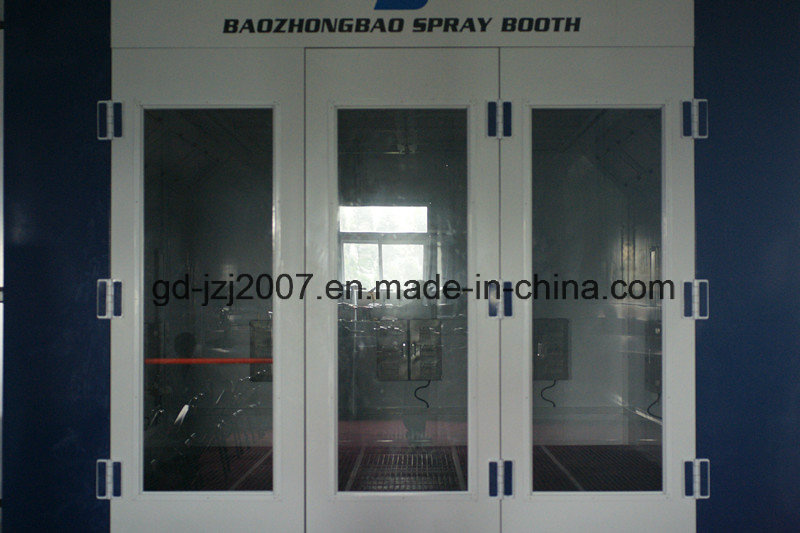

a) Steel metal front door( with tempered glass view indows)

b)     New style aluminum hinge

c)     New door plug

d)     Belimo brand actuator

e)      Heating exchanger ( SUS304 galvanized steel)

f) Centrifuge fans

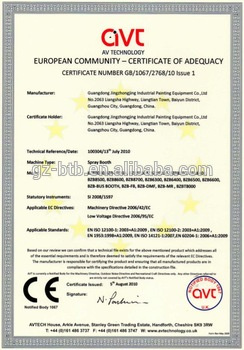

Certification

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
