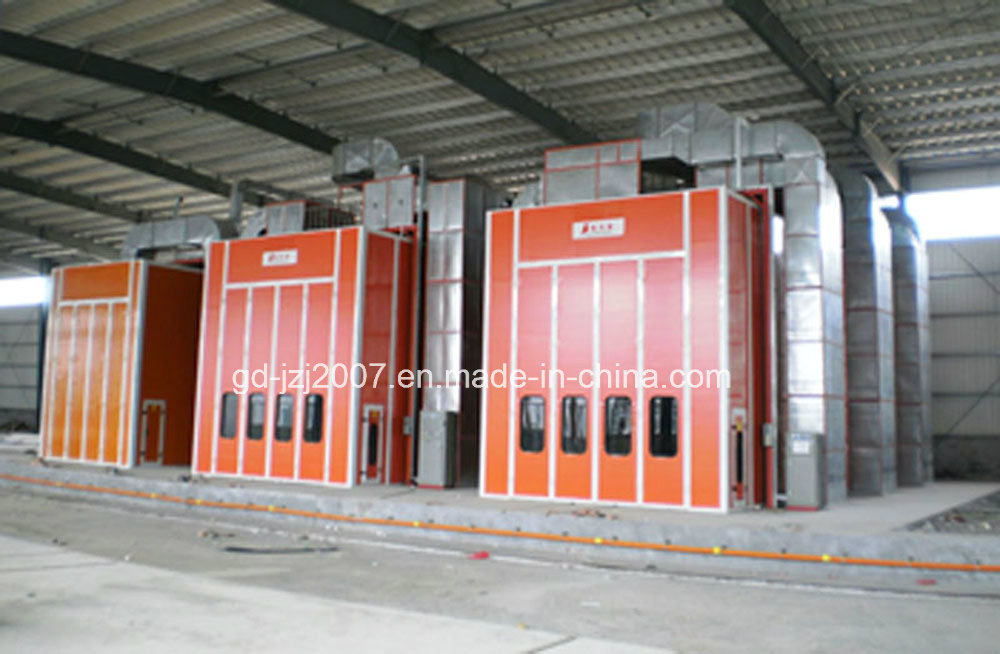

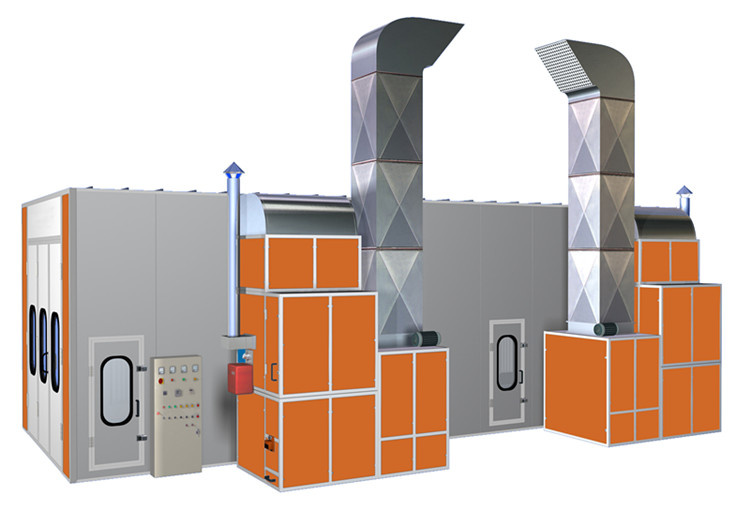

High Quality Bus Drying Spray Booth

Name: High Quality Bus Drying Spray Booth
Brand: ibuyautoparts.com
SKU: 703393665
Availability: InStock
Rating: 4.9 (20 reviews)

Price:	US $ 3500-19780/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Customized
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require

Product Description

Bus drying oven with inside size 15-5-5m, please kindly check the attached paramaters.

Specs	Outside Size(L× W× H)	15150× 6900× 5800	Construction Specs	Panel Thickness(mm)	75
	Inside Size(L× W× H)	15000× 5000× 5000		Panel Skin Thickness(mm)	0.5
	Door Width(mm)	4000		Panel Material	EPS
	Door Height(mm)	4500		Grid	30*4 Plate Steel
	Air Speed (m/s)	≥ 0.25		Room Construction	Square Steel Pipe & Steel Angle Bar
	Noise(dB)	≤ 85		Filter Support Mesh	Square Steel Pipe
	Total Power(kw)	65		Fan Cabin Material	Square Steel Pipe & Galvanized Steel Sheet
	Max Temp(° C)	80	Light Specs	Quantity(pcs)	Ceiling 72
Burner Specs	Burner Model (gas burner for optional)	Baltur BT26		Quantity(pcs)	Bottom 44
	Max Heating(Kcal/h)	260000		Single Power(W)	36
	Oil Consumption(kg/h/set)	15-25		Light Brand	Philips
	Heat Exchanger Material	Stainless Steel		Illuminance(Lux)	≥ 700
	Quantity	2	Exhaust Specs	Exhaust Duct Size(mm)	900× 900
Inlet Fan Specs	Fan Model	YDW-5.6M		Material	Galvanized Steel
	Air Volume(m3/h)	20000		Duct Height	8m
	Single Power(KW)	7.5	Colour	Blue/Orange/Gray White(optional)
	Quantity	4	Colour	Blue/Orange/Gray White(optional)
Outlet Fan Specs	Fan Model	4-82-6.3E	Anti-pollution	Dry-Style Processing, Fiberglass
	Air Volume(m 3 /h)	36037	Anti-pollution	Dry-Style Processing, Fiberglass
	Single Power(KW)	15	Electrical system	Voltage	380V/50HZ/3PH
	Quantity	2	Electrical system	Device	CE standard

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
