WMT CNC INDUSTRIAL CO., LTD. >> High Quality Brake Lathe Ma⪞ hine C9≃ ≃ 5 with Ce Standard

High Quality Brake Lathe Ma⪞ hine C9≃ ≃ 5 with Ce Standard

High Quality Brake Lathe Ma⪞ hine C9≃ ≃ 5 with Ce Standard
Price: US $ 800-900/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Feature:
Easy operation
Useful tool
Repair Brake Drum and disc
Mechanical power feed

Main specification:
SpecificaitonModel C9335
Processing diameterbrake drum dia.: 180-350MM
Brake plate dia. below 400mm
Slide travel100mm
Rotational speed of spindle60, 90r/min
Feed0.15mm/r
Motor Power0.75kw
Overall dimensions (L×W×H)695×565×635mm
Packing dimension (L×W×H)750×710×750mm
NW/GW200/260KG
Machine details:

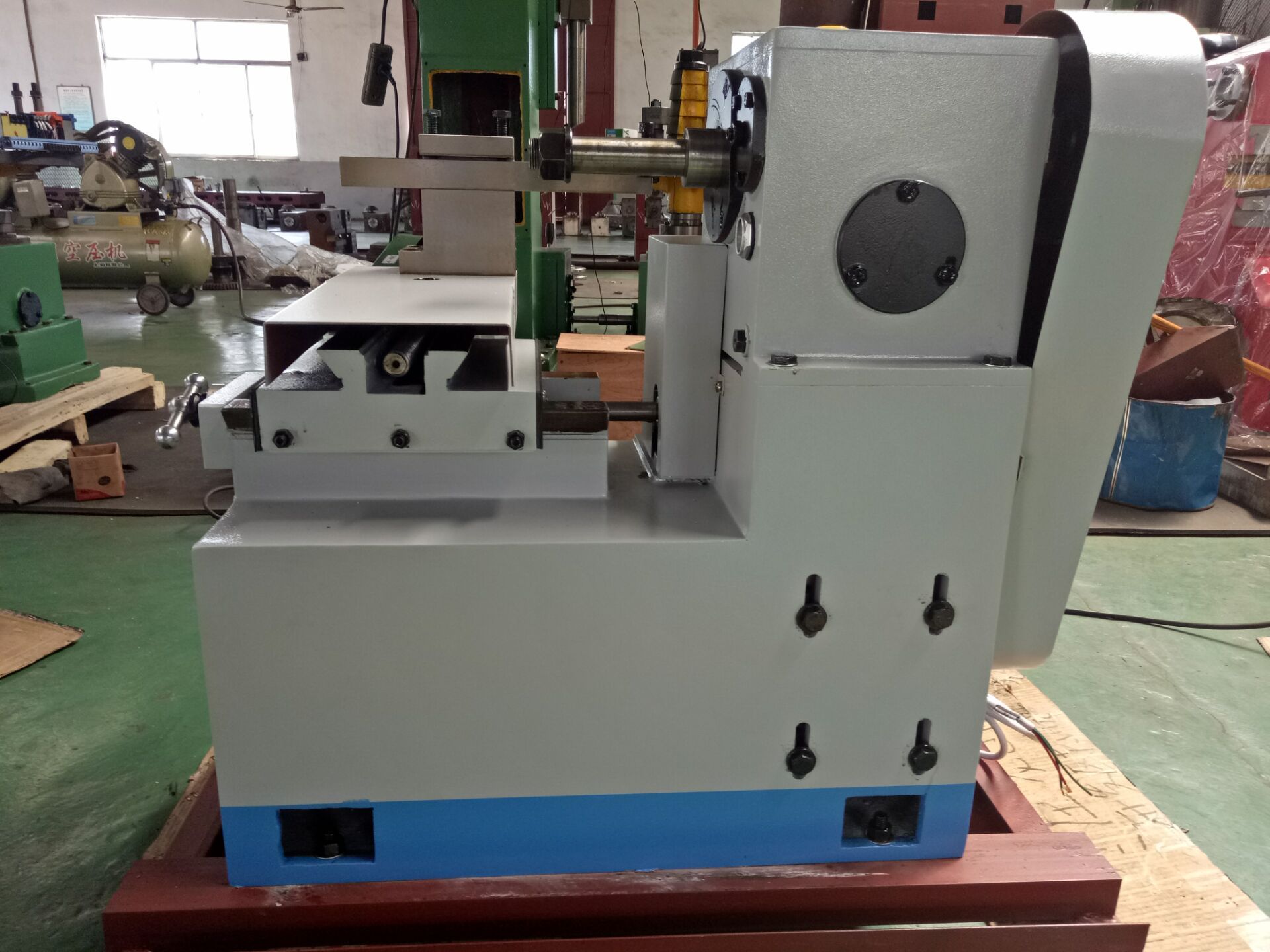

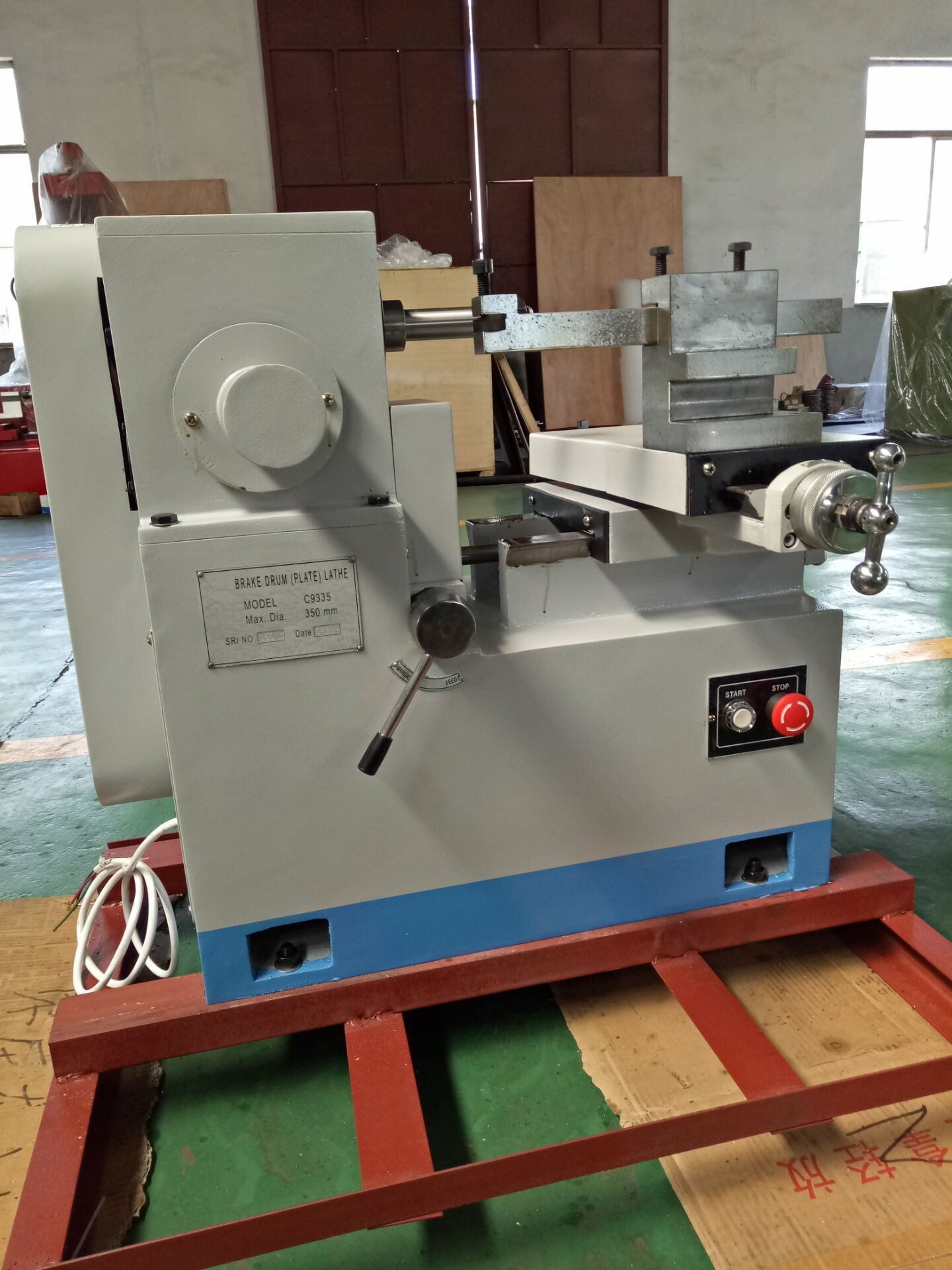

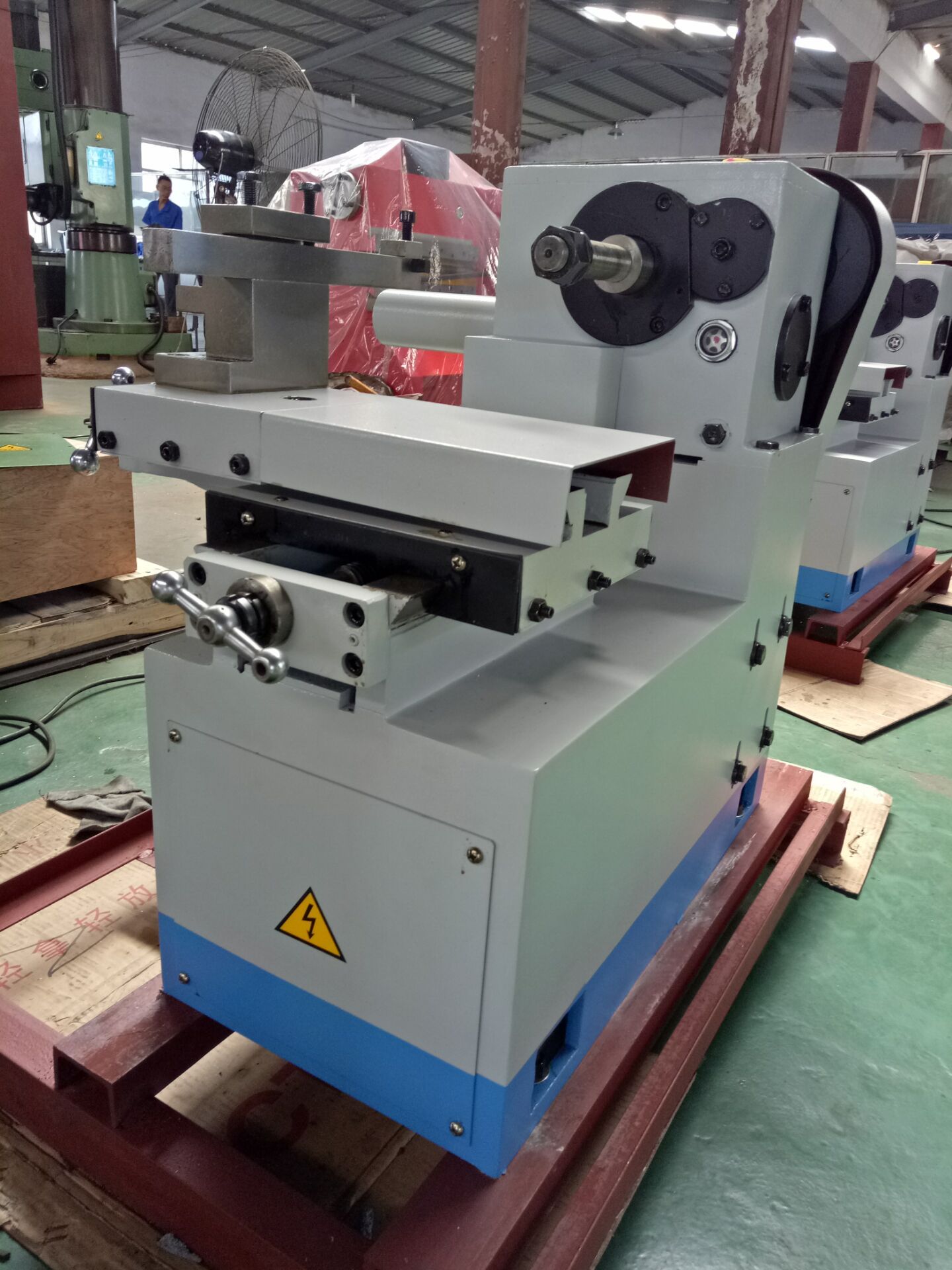

1) machine pic.









Prod Model: C9335
Color: Customer Appoint
Lathe: Drum/Disc Repair
WMT CNC Industrial Co., Ltd. is located in the southwest of the Yangtze River in Anhui Province with famous Buddhist shrine in the north of Jiuhua Mountain. The transportation facilities here are very convenient, directly linked with many metropolis like Shanghai, Beijing and Shenzhen via the highway, international airport, and high-speed railway. As one of the most professional manufacturers in China, WMT company is focused on developing, manufacturing and selling various CNC milling, CNC lathe, milling and drilling machines, drilling machines, lathe machines and multi-purpose machines etc.

Since the company was founded, the concept of combining "artisan spirit" and "smart CNC manufacturing" have always been infiltrated throughout the whole process of R&D, production and sales of various products.

With advanced machining measuring equipment, and scientific management system to ensure our product with high precision, high rigidity and reliability. Our machines have been sold to more than 50 countries and regions successfully and are enjoying a wide and well-known popularity in the European and American market, etc.
