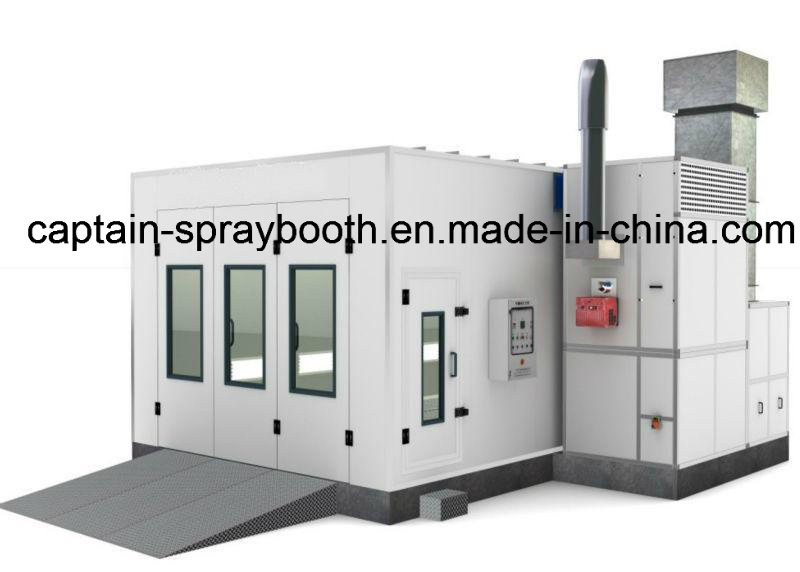

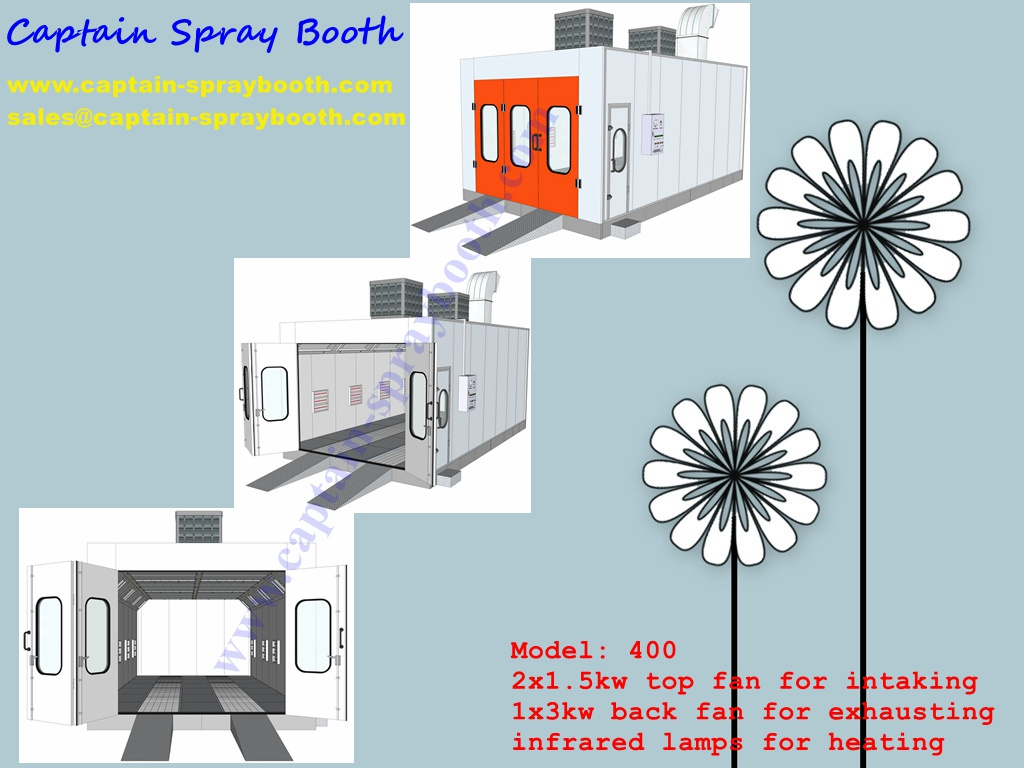

High Quality Automotive Painting Equipment Car Paint Spray Booth
| Price: |
US $ 3000-50000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Spray Booth,Spray Unit,Baking House,Car Bake Oven |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outside Size: |
9344X6396X4100mm(Lxwxh) |
| Inside Size: |
9200X4500X3500mm(Lxwxh) |
| Front Door: |
1 Unit, 3500X3400 Mm(Wxh) |
| Emergency Door: |
1-Fold, 650X1800mm(Wxh) |
| Wall Panel: |
75mm EPS, 0.5 Steel |
| Intake Fan: |
2X5.5kw Double-Intake Centrifugal Fans |
| Exhaust Fan: |
1X7.5kw Double-Intake Centrifugal Fans |
| Heating System: |
Italian Riello Rg5s (260000 Kcal/H)Diesel )1set |
| Lighting System: |
48PCS Ceiling Lights, 24PCS Side Lights |
| Total Power: |
21kw |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Substrate: |
Sandwich Panel |
| Brand: |
Captain |
Product Description

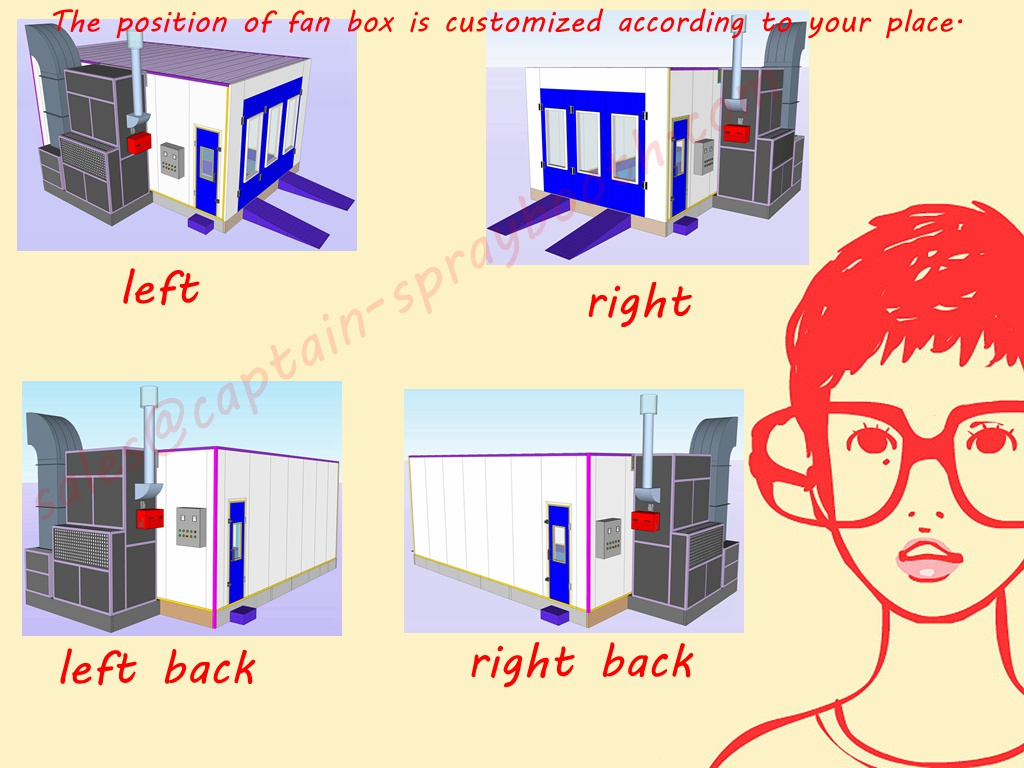

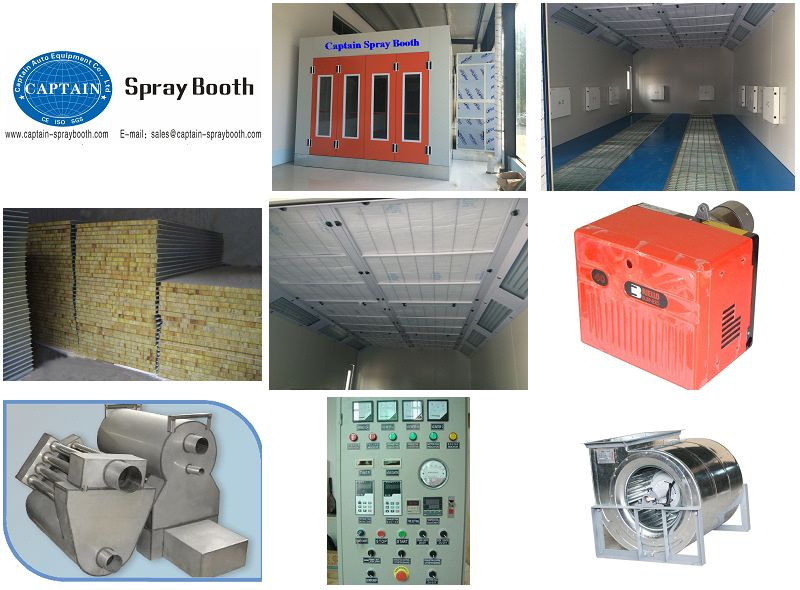

| Items | Spec |
| Sketch | |
| Outside size:(mm) | 9344x6396x4100mm(LXWXH) |
| Inside size:(mm) | 9200x4500x3500mm(LXWXH) |
| Front door:(mm) | 1 Unit, 3500×3400 mm(WxH) , galvanized steel cover frame,with polystyrene(EPS) insulation inside. |
| Emergency door:(mm) | 1-fold, 650×1800mm(W×H) with one step. There is two sets of pressure lock which will automatically open when the pressure inside is over the limit . |
| Cabin system | Wall panel :Double construction with insulations EPS , thickness 75mm, 0.5mm steel thickness ;width:950mm, tongue and groove interlock structure, with Polystyrene(EPS) insulation inside.
Basement and floor : Need to build the base construction , 2 rows of pits in the ground for exhaust air, with galvanized grids made by twisted steel and flat bar above, 2 rows air exhust plenum chamber . |
| Ventilation system | Intake fan:2x5.5KW double-intake centrifugal fans for intake air, model is YDW4.5M,
total air capacity is 30000m3/h
Exhaust fan:1x7.5KW double-intake centrifugal fans for exhaust air, external motor, belt-drive, model TAE-710H, air capacity is 20000m3/h |
| Heating system | Italian RIELLO RG5S (260000 kcal/h)Diesel )1set . |
| Filter system | Pre filter, high efficiency filter (ceiling filter),floor filter, exhaust active carbon filter. |
| Lighting System | Ceiling light: 4Pcs X12units=48PcsX36W,
Side light: 2Pcs X12units=24PCsX30W, |
| Control system | Spraying, risen-temperature spraying, baking temperature, time setting,
lighting switch, emergency stop, failure indicator, limited-temperature device . |
| Total power | 21 KW |
| Container needed | 20 Feet container . |
| UNIT PRICE (FOB QINGDAO) | |
FUNCTION
Provides auto painting and drying operation in accordance with health and security norms. Conformity to TSEK quality factor and conformity values is determined with Quality conformity certificate no. 35 -14.02/1557 of 2001. In accordance with the Law no. 132 and TSE legislation, "Production Compliance Certificate " had been consigned. Analysis result executed by TUBITAK ENERGY SYSTEMS and ENVIRONMENT RESEARCH INSTITUTE ENVIRONMENT DIVISION, approved through the report no. B. 02.1BAK. 5.01.52.00/2015 and Project no. 51H2402, that FIRAT Auto Painting Spray Booths does not constitute any environment pollution.
DESCRIPTION
A Painting and Drying Spraybooth is the place in which the vehicle is painted via a spray gun with air channel working under the low pressure and followed by drying. Air derived outside of the facility through the ceiling filter system. Paint particules holded by paint stop filters and decomposed from air. Spray booth is equiped with diesel burner and fan-motor units. In front of the booth entrance, beside the entrance ramp, a metal basement or excavation work, a channel connection to units for air circulation is executed and installed on the facility floor.
Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
