Specifications
Competitive price & High quality
Delivery in time
Best service
Free sample as your required
Rubber Fuel Hose
We are the professional manufacturer in China,our products have been exported to more than 50 countries such as USA,UK,Austrilia,Brazil,etc. And received favorable response with competitve price,high quality and nice service from our customer in worldwide.So you can rest assured to cooperate with us!
Description of Fuel oil hose
Applications:
Design to transport gasoline,E85 gasoline, diesel, engine oil, kerosene, hydraulic oil and lubricating oil. It's widely used in engineering machinery, automobile, internal combustion engine fuel system.
Tube:Oil resistant synthetic rubber with low permeability
Reinforcement: High tensile braid of synthetic
Cover: weather resistant and aging resistant synthetic rubber
Surface: smooth, cloth wrapped,concave-convex
Color: black/red/blue
Standard: SAE J30R
Specification:
NO. | I.D | Refer to O.D | W.P | B.P | Approximate Weight |
| inch | mm | inch | mm | MPA | PSI | MPA | PSI | Kg/m | Lbs/ft |
1 | 1/8 | 3.2±0.2 | 0.35 | 9±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.078 | 0.12 |
2 | 5/32 | 4±0.2 | 0.4 | 10±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.092 | 0.14 |
3 | 3/16 | 4.8±0.2 | 0.43 | 11±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.108 | 0.16 |
4 | 1/4 | 6.3±0.2 | 0.5 | 12.7±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.134 | 0.20 |
5 | 5/16 | 8.0±0.3 | 0.56 | 14±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.147 | 0.22 |
6 | 3/8 | 9.5±0.4 | 0.63 | 16±0.4 | 2.06 | 300 | 8.27 | 1200 | 0.182 | 0.27 |
7 | 15/32 | 12±0.4 | 0.75 | 19±0.5 | 2.06 | 300 | 8.27 | 1200 | 0.238 | 0.35 |
8 | 1/2 | 12.7±0.5 | 0.78 | 20±0.5 | 2.06 | 300 | 8.27 | 1200 | 0.262 | 0.39 |
9 | 5/8 | 16±0.5 | 0.94 | 24±0.6 | 1.03 | 150 | 4.12 | 600 | 0.351 | 0.52 |
10 | 3/4 | 19±0.6 | 1.13 | 28.8±0.8 | 1.03 | 150 | 4.12 | 600 | 0.515 | 0.77 |
11 | 1 | 25.4±0.6 | 1.38 | 35±0.8 | 1.03 | 150 | 4.12 | 600 | 0.637 | 0.95 |
APPLICATION SELECTION GUIDE |
SAE30R2 | Coupled and Uncoupled Synthetic Rubber Tube and Cover |
SAE30R3 | Lightweight Braided Reinforced Lacquer, Cement ,or Rubber Covered Hose |
SAE30R5 | Wire Inserted Synthetic Rubber Tube and Cover |
SAE30R6 | Low-Pressure Coupled and Uncoupled Synthetic Rubber Tube and Cover |
SAE30R7 | Low-Pressure Coupled and Uncoupled Synthetic Rubber Tube and Cover |
SAE30R8 | Low-Pressure Coupled and Uncoupled Synthetic Rubber Tube and Cover |
SAE30R9 | Fuel Injection Hose Medium-Pressure Coupled&Uncoupled Synthetic Rubber Tube& Cover |
SAE30R10 | In-Tank, Low-Pressure, Uncoupled Fuel Hoses |
SAE30R11 | Low Permeation Fuel Fill, Vent, and Vapor Hose |
SAE30R12 | Low Permeation Fuel Feed and Return Hose |
SAE30R13 | Diesel and Biodiesel Fuel Feed and Return Hose |
SAE30R14 | Low Permeation, Low Pressure Coupled and Uncoupled Synthetic Rubber Tube and Cover Hose for Small Engi |

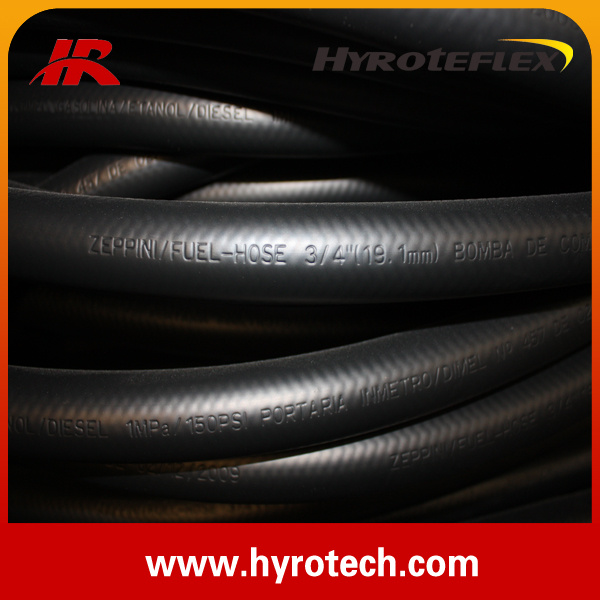

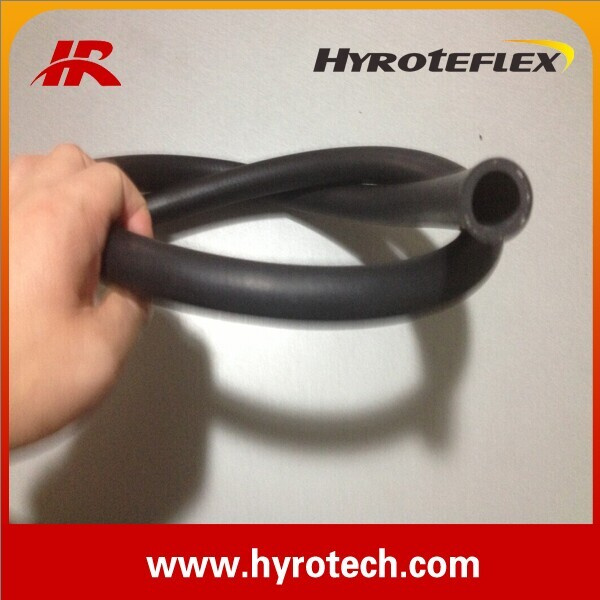

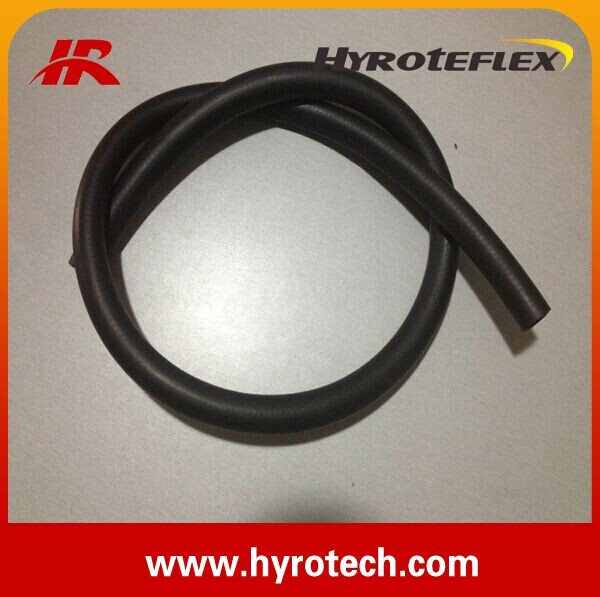

Attached the photos of our products for your reference.
Any comments or anythng i can help,pls do not hesitate to contact me!
Looking forward to receiving your early inquiry soon!!
