| Prod Model: |
WLD-15000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| External Size: |
15150*8850*5600 |
| Internal Size: |
15000*5000*4800 |
| Air Flow: |
24000*3m3/H |
| Air Speed: |
0.3-0.5m/S |
| Paint Mist Treatment: |
Dry-type |
| Heating Mode: |
Electric |
| Airflow Direction: |
Cross-flow Type |
| Certification: |
CE |
| Condition: |
New |
| Brand: |
Weilongda |
| Substrate: |
EPS |
Product Description
Quick Details
Type: Spray Booths
Power: 47kw
External Size: (L) 15150 x (W) 8850 x (H) 5600
Internal Size: (L) 15000 x (W) 5000 x (H) 4800
Voltage: 3Phase 380V/415V/220V 50Hz/60Hz etc...
Certification: CE
Place of Origin: Guangdong, China (Mainland)
Brand Name: Weilongda
Model Number: WLD15000
Electric damper: Infrared Lamp
Packaging & Delivery
Packaging Details: | Polyfoam and carton,1 set in a 20GP container and a 40HQ container. |
|---|
| Delivery Detail: | 20 days after receiving 30% deposit |
|---|
Established in 2000,our factory is one of the earliest and largest spray booth,car lift and other garage equipment manufacturers in Guangzhou,China.Welcome to visit us.

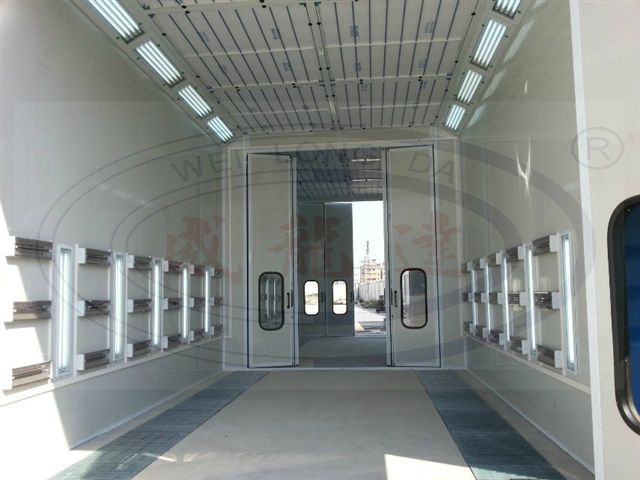

WLD15000 Truck Bus Paint Spray Booth Specifications:
External Size:(mm) |
15150x8850x5600 |
Front Door:(mm)
Aluminum Frame |
4000(w)x4800(h) |
Internal Size:(mm) |
15000x5000x4800 |
Total Power:(kw) |
47 |
Cabin System |
Wallboard |
Sandwich style EPS (epispastics polystyrene) 75mm thickness, Colorful steel skin boards 0.476mm thickness .Galvanized steel roof panel. |
Door |
3 pieces of front door with 4 folders with special rigid frame. |
Air Circulation System |
Air Intake system |
2x4kw intake fan. Total 6 units of 4kw intake fan. BELIMO 20N electric damper. |
Air Exhaust system |
1×5.5kw exhaust fan ,Total 3units of 5.5kw exhaust fan Multi-layer fiberglass filter. Exhaust air from basement or two sides of wallboard |
Air Flow: 24000×3m3/h. Air Speed: 0.3-0.5m/s. |
Air Purification System |
Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%. |
Heating System |
Consist of 28 sets of infrared lamp. each set of infrared lamp have protected net. the electric heating exchange rate reaches 95%. Infrared Heater radiation have a feature of high penetration, efficient, no noise, pollution free etc. Max.temperature at 80ºC. |
Lighting System |
Ceiling light has 18units×4pieces of 36w lamps .Side light has 22units×2pieces of 36w lamps .Total 116pieces of 36w lamps.900 Lux. |
