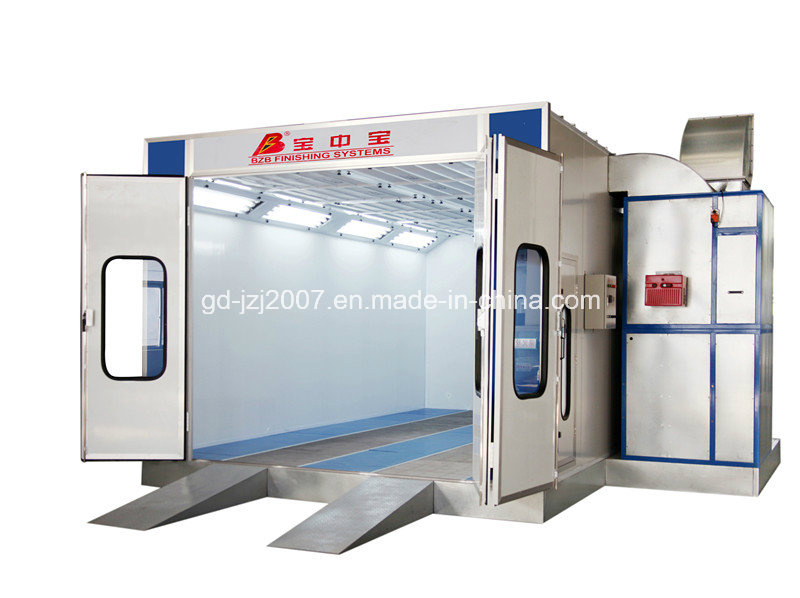

High Quality Automatic Spray Booth Cheap Spray Booth

Prod Model:	Customized
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

15m Spray booth specification, if you need big bus paint booth, please feel free to contact us. We are the most professional spray booth manufacturer in China.

Basical

Parameters Model BZB FB

Structural

Parameters Thickness of Wallboard 75mm

Manufacturer Jingzhongjing Wall thickness of the plate 0.476(mm)

Outside size(L*W*H) 15156*6956*5800 Sandwich panel wall material EPS

Inside size(L*W*H) 15000 *5000* 5000 grid 30*4 Flat iron

Width of door(mm) 400 Housing body skeleton Side angle steel pipe

Height of door(mm) 4500 Material of ceiling surpport Square steel pipe

Indoor no-load speed (m / s) >0.25 Cabinet material Galvanized steel pipe to board

Noise <85dB

Ligting

Parameters Number of Philip lamp Ceiling: 72 piece

Waist: 40 piece

Total power 52 kw Power/ piece 26 kw

The maximum temperature 80 degree Lamp 220V/50Hz

Illumination (Lux) >800

Parameters

Of

Burner Diesel burner RG5S (2 sets)

Exhaust

Parameters Exhaust diameter (mm) 900*900

The most heat (kcal / h) 260000*2 Exhaust chimney materials Galvanized sheet

Material of heat exchanger Stainless Steel

Others Color Gray / blue / orange (optional

Parameters Of Inlet-fan Mode of Inlet-fan YDW-5.6S Heigh exhaust chimney 12 meters standard pipe and 2 piece Elbows

Capacity of wind 17530 per hour Three-dimensional work of the car Optional

Power of Inlet-fan 5.5KW/set (4 sets)

Model of Exhaust-fan 4-82-6.3E

Parameters:

Exhaust-fan Capacity of wind 3400 per hour

Power of Exhaust-fan 11KW/set (2 sets)
