Prod Model:	Bioble-PS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Air Intake (Spray Booth):	1*8kw Inner Motor Double-Intake Centrifugal Fan
Air Exhaust (Prep Station):	1*5.5kw Inner Motor Double-Intake Centrifugal Fan
Air Exhaust (Spray Booth):	1*7.5kw Inner Motor Double-Intake Centrifugal Fan
Heating (Spray Booth):	1 Unit Riello G20 Diesel Burner
Voltage:	1X220V, 3X380V, Your Special Voltages Are Accepted
Optional Color:	Blue, White, Red and Orange
Port:	Huangpu Port or by Your Order
Main Product:	Spray Booth, Prep Station, Infrared Curing System
Certification:	CE
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Type:	Spray Booth
Substrate:	Steel&Aluminum
Brand:	Yokistar
Coating:	Painting&Powder Coating
Airflow Direction:	Full Downdraft Airflow Way

Product Description

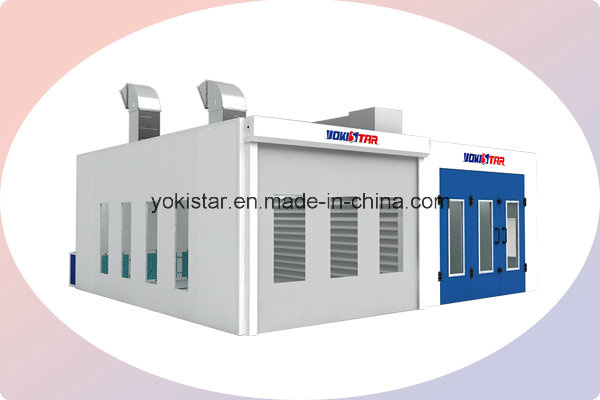

A.Prep stations make it possible for users to prep and perform minor paint work in one area without moving the vehicle

B.Prep stations speed up the drying process and improve the overall quality of your finished product.

C.Two airflow choice, above ground exhaust box and pit style downdraft, allow easy integration into new or existing body shop layouts.

D.Optional heat units are available for high production needs.

Specification for Prep Station Bioble-PS

Prep Station Standard Specification
Air draft way
by the rear cabinet.

Cabin
Inside Size
	6,900x3,900x2,700mm(LxWxH).
Outside Size
	8,150x4,000x3,100mm(LxWxH).
3 sides configuration
	Rear wall: made of 1.0mm thick galvanised steel, painted with white powder.
	Left: made of 50mm thick EPS wall panel, with 4 glass viewing window.
	Front: equiped with fast electric roller curtain.
	Right: please refer to the Connection Part.
Roof Panel
	Made of 0.6mm thick bended galvanised plate.
Ceiling Light
	Left and right upper position have 5 lighting fixtures, total 10fixtures. Each fixture is equipped with
	4 PHILLIP fluorescent tubes of 36 Watt with two in one electronic ballast.
Plenum
	450mm high, all spare parts of plenum are made of galvanised bended steel and treated by white
	powder for long using life.
Ceiling Filter
	Supporting net is made of C shape steel with surface oil painted treatment,sub-high efficiency filter,
	F5 Grade(EN779),type is SP-600G.

Exhaust Air Units
Cabinet Size
	1,300x1,100x1,300mm(LxWxH).
Cabinet
	Made of 50x50mm size galvanised square tube, three way connector made of alluminium alloy.
Filtering
	Fibre glass filter, G3 Grade(EN779),type is PA-50 .
	M' shape filter frame with pre-filter,G3 Grade(EN779),type is C16-300.

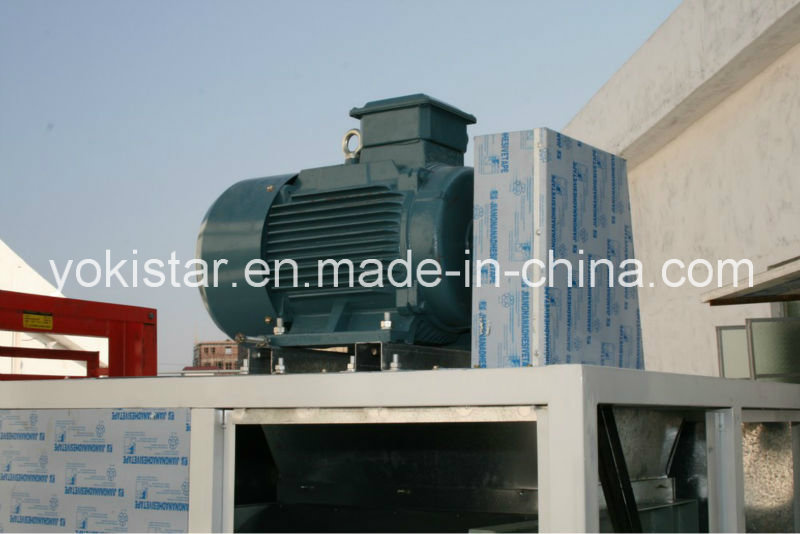

Motor and Fan
	Motor type:inside of the fan; qty.:1pc; single motor power:5.5KW, total power:5.5KW.
	Fan type: double intake centrifual fans,YDW-4.5S, total air capacity: 15,500m³/h.
Makeup Air Control
	by Belimo 10N actuator to control fresh air quantity.
Exhaust Air Duct
	Equppped with 4M straight duct, 1pc 90° elbow duct and 1pc 30° elbow duct.

Control System
	Power Indicator,Fan Running Indicator,Electric Actuator, Emergency Stop,Fan Switch,Light Switch.


Spray Booth Standard Specification
Air draft way
Downdraft.

Basement
Floor
	Underground installation,300mm high.
	Made by full grilles made of 30x4mm flat bar and 10mm trwisted steel, with surface galvanised treatment,
	loading weight is 600KG/wheel.
Covered Plate
	Made of bended galvanised steel, 300mm high.
Supporting Frame
	Made of galvanised square steel tube with 40x80mm(WxL) size.
Floor Filter
	Fiber glass filter,G3 Grade(EN779), type is PA-50.

Cabin
Inside Size
	6,900x3,900x2,650mm(LxWxH).
Outside Size
	7,000x5,350x3,400mm(LxWxH).
Entrance door
	3-leaf,size is 3,000x2,600mm(WxH), made of bended steel without covered edge,with tempered glass
	embedded into square frame made of aluminium alloy, with one set of pressure lock.
Wall Panel
	50mm thick and 1,000mm wide,insulation is EPS and covered by 0.326mm thick of color steel inside
	and outside.Tongue and groove interlock strucutre,two sides covered by steel.
Roof Panel
	Made of 0.6mm thick bended galvanised plate.
Ceiling Light
	Left and right upper position have 5 lighting fixtures, total 10 fixtures. Each fixture is equipped with
	4 PHILLIP fluorescent tubes of 36 Watt with two in one electronic ballast.
Plenum
	450mm high, all spare parts of plenum are made of galvanised bended steel and treated by white
	powder for long using life.
Ceiling Filter
	Supporting net is made of C shape steel with surface oil painted treatment,sub-high efficiency filter,
	F5 Grade(EN779),type is SP-600G.

Makeup Air Units
Frame Size
	1,700x1,250x2,400mm(LxWxH).
Cabinet Frame
	Made of 1.5mm thick bended galvanised steel, three way connector made of alluminium alloy.
Motor and Fan
	Motor: inside of the fan; qty.:2pcs; single motor power:4KW, total power:8KW;
	Fan type: double intake centrifual fans, YDW-4.5L, total air capacity: 25,000m³/h
Makeup Air Control
	Handed Actuator for Controlling fresh air quantity.
Pneumatic Actuator
	To control the air valve openning or closing while the working status is spraying or baking.
Heat Exchanger
	200KW, made of 1.5mm stainless steel 1Gr18Ni9Ti(SUS304), with round type multi-cycle
	radiatorpipe, equipped with safe anti-explosion hole, 1M stainless steel chimney, 3M
	long bended galvanisedsteel chimney and 1 pc of rain shield.
Burner
	Riello G20 diesel burner, heating productivity is 200,000Kcal/H.
Filtering
	M' shape filter frame with pre-filter,G3 Grade(EN779),type is C16-300.
	Fiber glass filter,G3 Grade(EN779), type is PA-50.

Exhaust Air Units
Frame Size
	1,400x1,250x1,600mm(LxWxH)
Cabinet Frame
	Made of 1.5mm thick bended galvanised steel, three way connector made of alluminium alloy.
Motor and Fan
	Motor: inside of the fan; qty.:1pc; single motor power:7.5KW; total power:7.5KW;
	Fan type: double intake centrifual fans, YDW-5.6M, total air capacity: 21,000m³/h
Exhaust Air Control
	Handed Actuator for Controlling VCD Air Valve Openning or Closing.
	Equppped with 4M straight duct, 1M 90° elbow duct and 1M 30 elbow° duct.
Exhaust Air Filtering
	Fibre glass filter, G3 Grade(EN779),type is PA-50 .
	Granular Active Carbon in "M" Shape Filter Frame.
Control System
	Temperature Controller,Hour Meter,Timer,Power Indicator,Spraying Indicator,Baking Indicator,
	Burner Failure Indicator,Spray Switch,Bake Switch,Left Light,Right Light,Emergency Stop.

OVERVIEW

A. YOKISTAR Prep Stations are designed for the preparation of vehicles without moving. Many tasks, including sanding, priming, painting and sealing, all can be completed in the same area by YOKISTAR Prep Stations.

B. Multiple length, width and height options are available in YOKISTAR Prep Stations to accommodate various custom requirements.

C. Your every specific finishing requirement, including filtration, lighting, temperature and air flow, will be taken into consideration in YOKISTAR Prep Stations.

INTAKE AND EXHAUST SYSTEM FEATURES

5.5kw exhausting inner motor centrifugal fan is applied in YOKISTAR Prep Stations. 7.5kw exhausting inner motor centrifugal fan and 8kw intaking inner motor centrifugal fan are applied in Spray Booths providing a quiet and highly productive working environment.

LIGHTING FEATURES

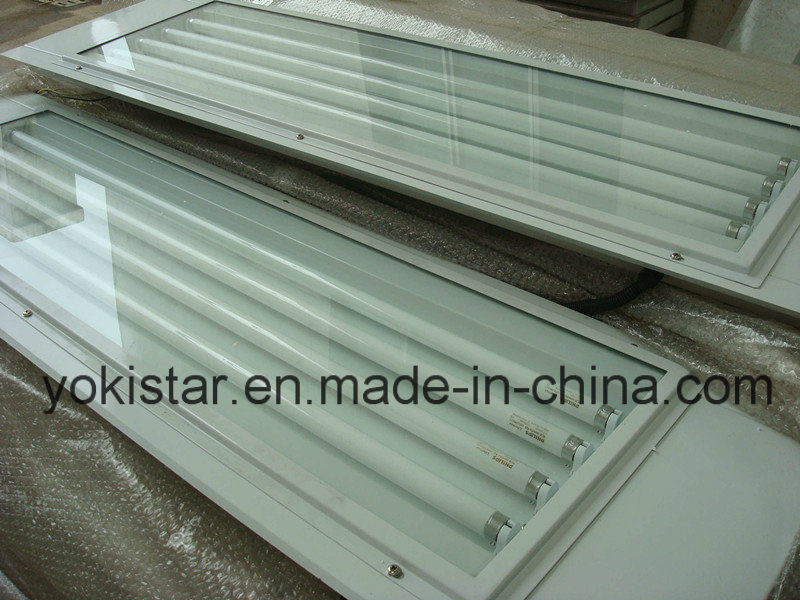

Ample lighting can be reached by PHILIPS fluorescent tubes in the roof or the walls of YOKISTAR Prep Stations behind tempered safety glass, and have optional external access for easy maintenance.Lighting box is made by powder coated color steel, with electric ballast.

Optional

Cupboards in the rear of YOKISTAR Prep Stations to store painting materials and equipments
Roll-Up Curtains(motorized controls/manual operation)

Other features

Overspray and dust control by 95% filter efficiency
PHILIPS lamps, BELIMO damper and RIELLO burner
Main electric components are CE listed
All hardware, fasteners, sealants
24 months warranty
Delivery time of standard prep station can reach 10 business days
Bubble film packaging for sea transportation in bulk, special steel tray packages are accepted

Warranty

The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.

Guangzhou YOKISTAR Co., Ltd. (YOKI STAR for short) is specialized in spray booths, infrared lamps, prep stations, equipments for industrial painting, high temperature drying which can supply design as well as manufacturing service.

Located in BaiYun district of GuangZhou city, YOKI STAR occupies 25000 square meters area, owns around 200 employees which is convenient to the new Baiyun airport (20 minutes by car) and the railway station (30 minutes).

As a professional designer and manufacturer with target in 'To be the best, but not to be the biggest', YOKI star succeeds to international advanced design standards and manufacturing technologies, follows international quality management and control system, produces first-class professional products of the world and shares with friends all over the world.

The products of YOKISTAR can be used widely for automobile maintenance, vehicles manufacturing, machinery manufacturing as well as trains, planes and furniture. Our products are popular in European Union, North America, South America, Middle East, East and South Asia, Africa, and have established completely sales system all around the world. YOKISTAR aims to be the spraying and baking equipments manufacturer with leading brand in the world, and to become modernized enterprise with international competitive advantage.

YOKISTAR is an ideal cooperator who deserves your reliance.
