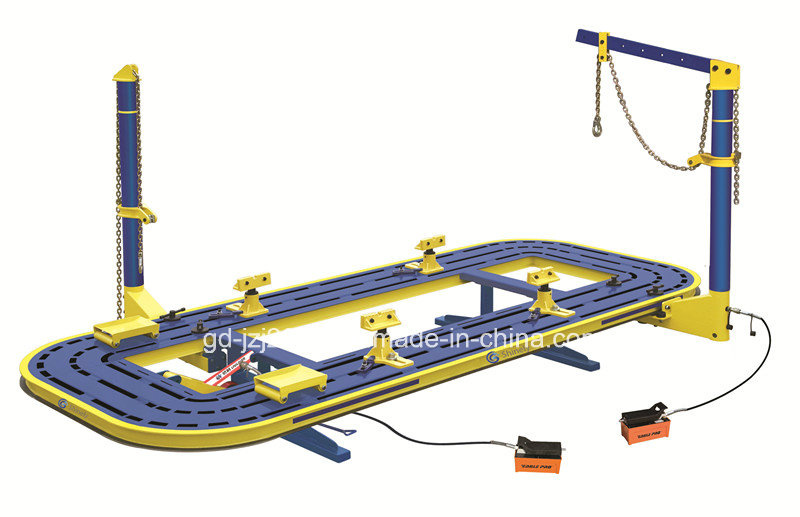

SY-L199 is rectangular tube platform which is researched and designed by ourselves according to the repair requirement of a variety of models at home and abroad, which has many improvement in welding technology, choosing material, equipment parameters and stress intensity and so on. It is very precise, faster, non-working blind, be in accord with the technician habit, high grade configuration and more convenience for operation. It is particularly suitable for all kinds of import cars, commercial vehicle and SUV which need intensive stretching.
SPECIFICATION:
| SPECIFICATION | |
| Length | 5200MM |
| WIDTH | 2140MM |
| HEIGHT | 520MM |
| PULLING CAPACITY | 95KN |
| AIR SUPPLY REQUIRED | 0.8MPA |
| RADIUS OF PULLING | 360° |
| MAX LOAD | 3500KG |
·The platform is rectangular tube platform, and the thickness of rectangular tube is 6mm, welded full board of many positioning holes surround the platform, the tolerance is small for flatness, strength is big, and many station holes is convenient for fixing any tools, no tensile dead zone.
Tilt hydraulic lifting platform makes the accidental vehicle loaded and unloaded more convenient(even drive the car onto the platform directly).
The tower can be rotated 360 degree along the platform which is operated more convenient, more intensity. The material use 10mm seamless pipe.
The unique design of the main clamps spiral movements, in the jaw to maintain the level of state, the upper and lower pole vertically movements, fine-tuning the level of all kinds of different vehicle chassis height of rapid adjustment
The jaws of main clamps unique adjustable design, only two screws, the thimble jaws, a variety of auto models that the rapid clamping firm to improve work efficiency.
The tools mechanical streamline design, after metal, heat treatment process, long service life and high-intensity, almost considered all deformation correction.
The leading arm can supply multi-direction tensile during the collision repair.
Eagle Pro Hydraulic systems.
| SY-L199 Configuration List |
| No. | Model No. | Quantity(set) |
| I | SY-L199 Frame racks | 1 |
| |
| 1) | Fixed support leg | 1 |
| 2) | Movable support leg | 1 |
| 3) | Tilt- lift of platform(include oil cylinder) | 1 |
| 4) | Ramps | 2 |
| II | 360 degree tower (include Top Bar) | 2 |
| 1) | Push rod of cylinder | 2 |
| 2) | Bolts for fixing towers | 4 |
| 3) | Bolt plates for fixing towers | 4 |
| 4) | Nut for fixing towers | 4 |
| 5) | in-built adjustable collars | 2 |
| 6) | 3.5m Main chain(with chain hook) | 2 |
| 7) | Protective wire | 2 |
| 8) | 10T high pressure cylinder | 2 |
| 9) | Leading arm,U-shape shelf,chain wheel | 1 |
| III | The jaws main clamp | 4 |
| 1) | Foot for fixing jaws clamp (M12 bolts) | 4 |
| 2) | Screw clamp of universal main clamp | 4 |
| 3) | Bolts, pressure plate, nut for fixing jaws main clamp | 4 |
| IV | Wheel dolly | 2 |
| V | Pneumatic pump(including oil pump,the quick couplers) | 2 |
| VI | Tools board(Pothook) | 1 |
| 1) | Pothook | 15 |
| VII | Pulling Clamping Accessories | |
| 1) | Chains 1.2m with rake body | 2 |
| 2) | Small clamp | 1 |
| 3) | Mini clamp | 1 |
| 4) | Width clamp | 1 |
| 5) | C-clamp | 1 |
| 6) | Big bending hook(1-3) | 1 |
| 7) | Deep hook | 1 |
| 8) | Slotted Chain Anchor | 2 |
| 9) | Multi hole pull plates | 1 |
| 10) | nylon sling | 1 |
| 11) | Steel wire | 1 |
| 12) | Handy link | 1 |
| 13) | Crescent spanner | 1 |
| 14) | Double Chain Hook | 1 |
| 15) | Down-pulling Device | 1 |
| 16) | Use of winch | 1 |
| 17) | Wheel bracket | 2 |
| VIII | Operating manual | 1 |
