High Quality Australian Standard Spray Painting Booth CE

Name: High Quality Australian Standard Spray Painting Booth CE
Brand: ibuyautoparts.com
SKU: 687445395
Availability: InStock
Rating: 4.5 (137 reviews)

Price:	US $ 8820-9950/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Customized
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

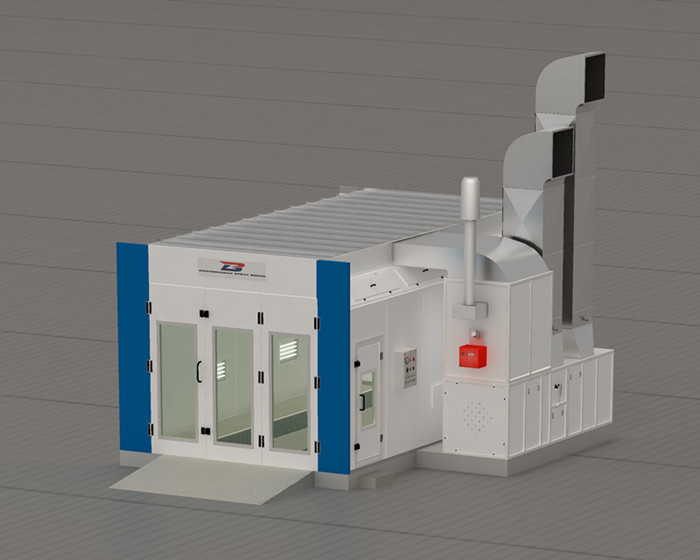

BZB-AU Spray booth 6.9m*4m*2.65m
Outside dimension:7000×5560×3430mm(L×W×H);
Inside dimension: 6900×4000×2650mm(L×W×H);
Front door dimension: 3000×2600mm(W×H);
Working door dimension: 800×2000mm(W×H);
Cabin system:

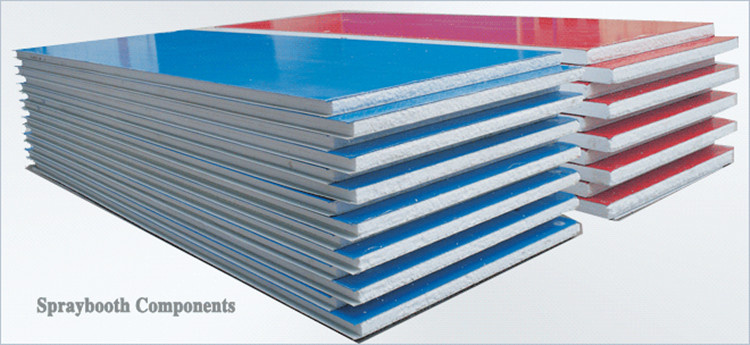

1) Wall panel: 50mm thick flame-resistant and heat-preserving EPS board; 0.6 thick colored steel.
Roof panel: 0.8mm galvanized sheet;
2) Basement: steel structure base; two line grilles, three line diamond plates; height is 300mm; 900mm width three ramps;
Air circulation system:

Inhaling Ventilator	Model: BZB-800	Exhaust Ventilator	Model: BZB-800
	Blower Capacity: 25000m³/h		Blower Capacity: 25000m³/h
	Pressure: 800Pa		Pressure: 800Pa
	Rolling Speed: 900rpm		Rolling Speed: 900rpm
	Power: 7.5kw		Power: 7.5kw
	Quantity: 1sets		Quantity: 1sets

Generator: back upper intake air,back up extract air,quadrate steel frame,coated steel;

Air purification system: G3 grade, Pockets filter Pre-filter, EU5 / F5 high efficiency filter (ceiling filter), green fiber glass filter / G3 grade floor filter; Pocket filter or M green fiber glass filter and active carbon exhaust fan filter.

Heat system: stainless steel SUS304 heat exchanger, RIELLO G20 diesel burner one stage, heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle; oil consumption 4~6L/set; the
Spray to baking switch: Pneumatic Damper
Chimney Duct: 4 meters stainless ducting and one chimney hood
heating time is 5~7 minutes;
Max heating temperature:80degree;

Lighting system:≥1000Lux
Ceiling Lights: 10Groupsx4Pcs=40Pcs x40W ; Side lights: 8Groupsx2Pcs=16pcs x 36W
Glass: all glass is clear tempered glass.

Control box: CE standard control system, Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, emergency stop, breakdown alarm;

Total power: 17KW

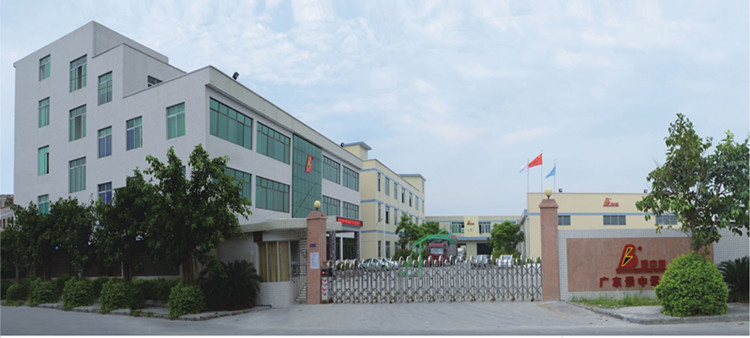

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
