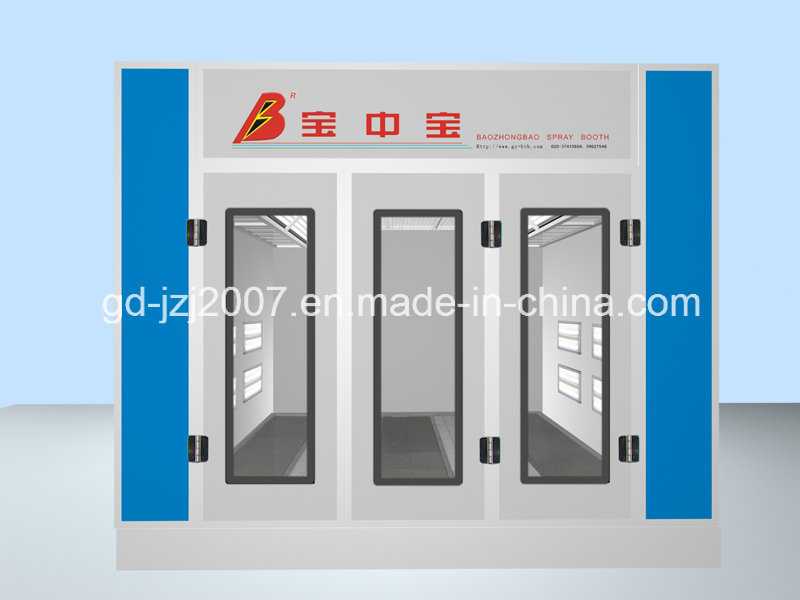

High Quality Australian Standard Paint Spray Booth CE
Price: |
US $ 3599-9999/Set |
Trade Terms: |
FOB |
Min Order: |
1/Set |
Pay Type: |
T/T |
Prod Model: |
BZB-T8000AU |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
White,Red,Orange,Blue....... |
Voltage: |
as Require |
Certification: |
CE |
Heating Mode: |
Diesel |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Brand: |
Bzb |
Product Description
BZB brand paint spray booth:We are the most professional spray booth manufacturer in China. we have been manufacturing spray booth for 12 years.Model: BZB-T8000AU Delivery Time: 10 days after order is placed.
Packing terms: Paper Scrip&Bubble plastic paper
Terms of payment: 30% T/T in advance, another 70% T/T before the delivery from
the factory
BZB-T8000 SPRAY BOOTH |
Outside Size:(mm) | 7000x5360x3430 | Front Door:(mm) | 3000(w)x2700(h) |
Inside Size:(mm) | 6900x4000x2800 | Total Power:(kw) | 17 |
Cabin System | Wallboard | EPS (epispastics polystyrene)Colorful Steel Skin Boards,50mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame ,Anti-flame and Heat-Insulation | |
|
|
Basement | | Galvanized steel sheet and square steel pipe assembling Grid & embossed steel plate, Embossed Steel Ramps. | |
| |
Air Circulation System | Inhaling Ventilator | Model: DDF 610 | Exhaust Ventilator | Model: DDF 610 | |
Blower Capacity: 25000m3/h | Blower Capacity:25000m3/h | |
Pressure: 650Pa | Pressure: 650Pa | |
Rolling Speed: 1750rpm | Rolling Speed: 1750rpm | |
Power: 7.5kw | Power: 7.5kw | |
Quantity: 1 sets | Quantity: 1set | |
Air Volume: 25000m3/h; Air Speed: 0.35m/s | |
Air Purification System | Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 4μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Gauge, TSP≤1.4mg/m3 | |
|
|
Heating System | Burner | ItalyRiello Brand,RG20 Diesel Burner, 180000Kcal/h, 20N Damp Motor | |
Heat Energy Converter | SUS304 Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85% | |
|
|
Max Temp:80 centi degree,Heating Time: 4-5min(20-60centi degree), Fuel Consumption: 4-5kg/vehicle | |
|
Light System | Ceiling Light: 32 pcs 36w Philips Lamp; Side Light: 16 pcs 36w Philips Lamp, 1000 Lux, the light glass is clear and tempered throughout | |
Electric Controlling System | Micro Computer Programme Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm, failure alarm, timer | |
|
Environmental System | Multi-Layer Fiber glasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards | |
Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.
Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.
It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
