| Prod Model: |
BZB-8700 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White, Red, Orange, Blue....... |
| Voltage: |
as Require |
| Function: |
Painting and Baking |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
BZB |
Product Description
We are the most professional spray booth manufacturer in China, please feel free to contact us.
For car painting and baking, maintains a high level of safety and performance together with top quality construction and material
BZB is a high-performance double wall, insulated down draft spray booth designed for automotive refinish body shops that demand high quality of the paint process, minimum running costs, reliability.
Spray booth manufacturer.
| Model | BZB-8700 |
| Outside Size(mm): | 7140*5690*3430 |
| Inside Size(mm): | 7000*4000*2650 |
| Front Door(mm): | 3000(W)*2600(H) |
| Total Power: | 28kw |
| Cabin System | Wallboard | EPS colorful steel skin board, wall panel: 70mm thick, ceiling panel: 50mm thick. The side door with a pressure lock which will automatically open when the pressure inside is over-pressure |
| Basement: | full grids, galvanized steel sheet construction, three embossed steel ramp |
| Circulation | Air Inlet Ventilation System | Model: YDW4.5L | Air Outlet Ventilation | Model:4-82-6.3E |
| System | Capacity: 24000m 3 /h | System | Capacity: 30000m 3 /h |
| | Pressure: 800 Pa | | Pressure: 800 Pa |
| | Power: 4kw | | Power: 15kw |
| | Quantity: 2 sets | | Quantity: 1 set |
| | The circulation system covers a set of automatic valve and two sets of manual valve. Manual adjustment valves are placed in inhaling and exhaust duct to control airflow volume and adjust pressure. A stainless steel trapezoid hood and a stainless cone hood |
| | 40 pcs Ceiling Nozzles with 2 Centrifugal(power 1.5kw/set) fans drying water paint |
| Purification System | dual filtering structure, the primary filter can capture granules larger than 10 μm. ceiling filter can capture granules bigger than 4μm. the whole purification system has capacity of large volume of dust. Its filtering rate reaches 98%. air pressure balance gauge, TSP≤1.2mg/m 3 |
| Heating System | Italy Riello RG5S diesel burner, 260000Kcal/h, 20N damper motor. |
| Heating exchanger, stainless steel, argon arc welding, heating exchange rate 85% |
| max temp:80centi degree, heating time: 4-6min(20-60 centi degree), fuel consumption:6-8kg/vehicle |
| Lighting System | ceiling Light: 32pcs 36w Philips lamp; bottom light: 32pcs 20w Philips lamp, 1100 Lux |
| Controlling System | PLC digital controlling, soft touching button, spray & baking switch, light switch, emergency stop, breakdown alarm |
| Environmental System | No-pump water curtain for mist filtering device can reduce more than 98% of the fog without the trouble of replacing drying-method filter by fully mixing fog, water and air, and ensure a qualified exhaust according to the relevant state standards |

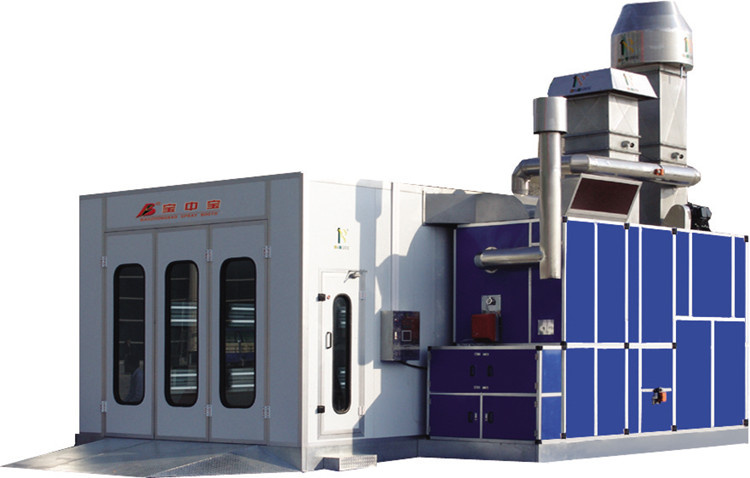

The main picture:

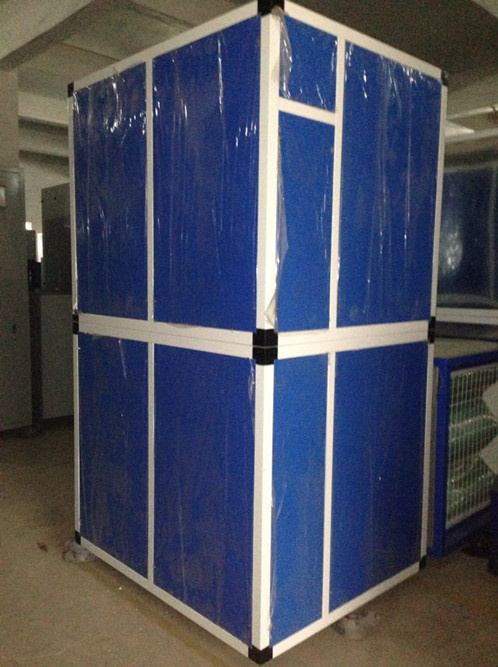

The cabinet:
The heat exchage and damper:

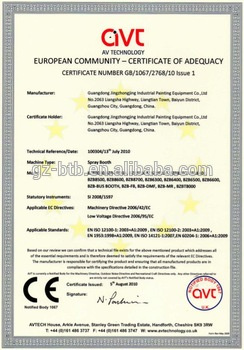

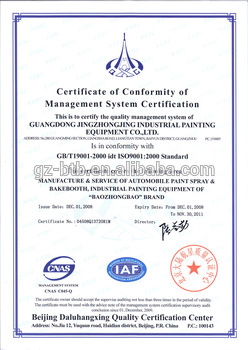

Certification:
Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.
Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.
It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
