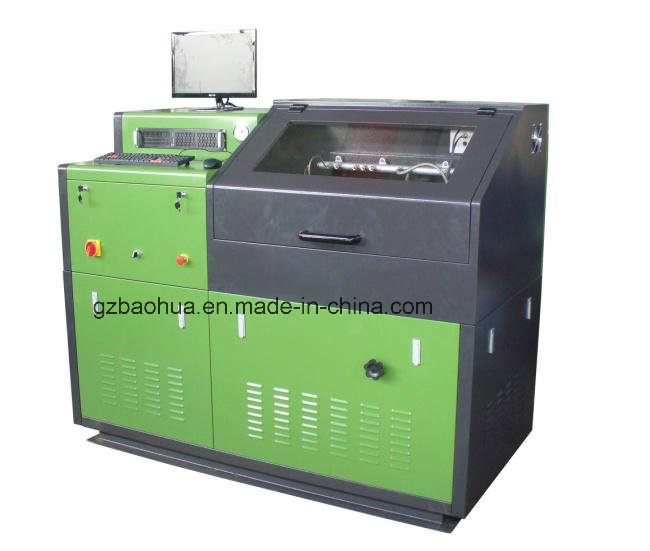

High Pressure Common Rail Diesel Fuel Pump and Injector Test Bench
| Price: |
US $ 5950-8210/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

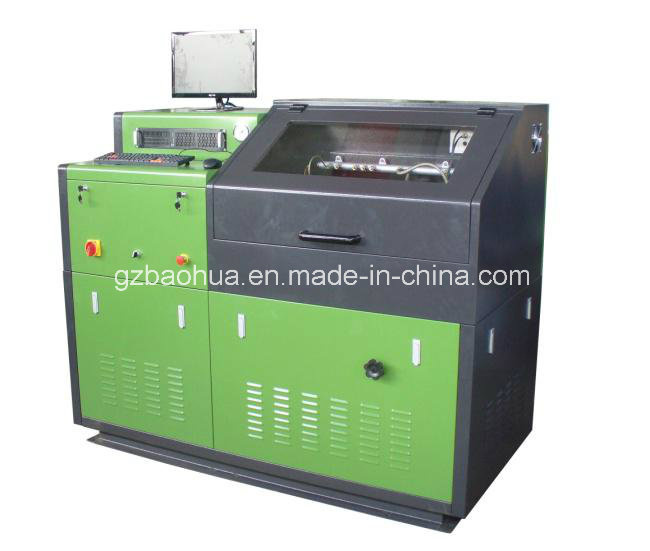

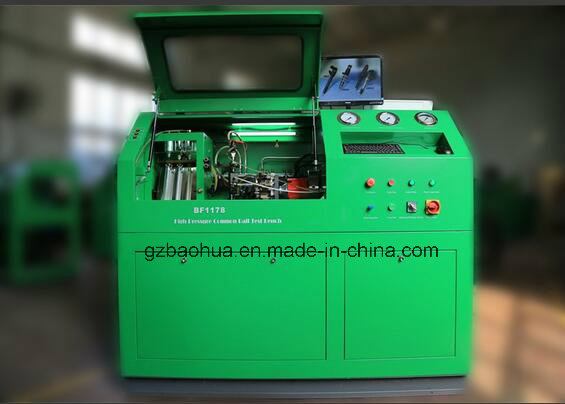

BF1178 Common rail diesel fuel pump and injector test bench
Features

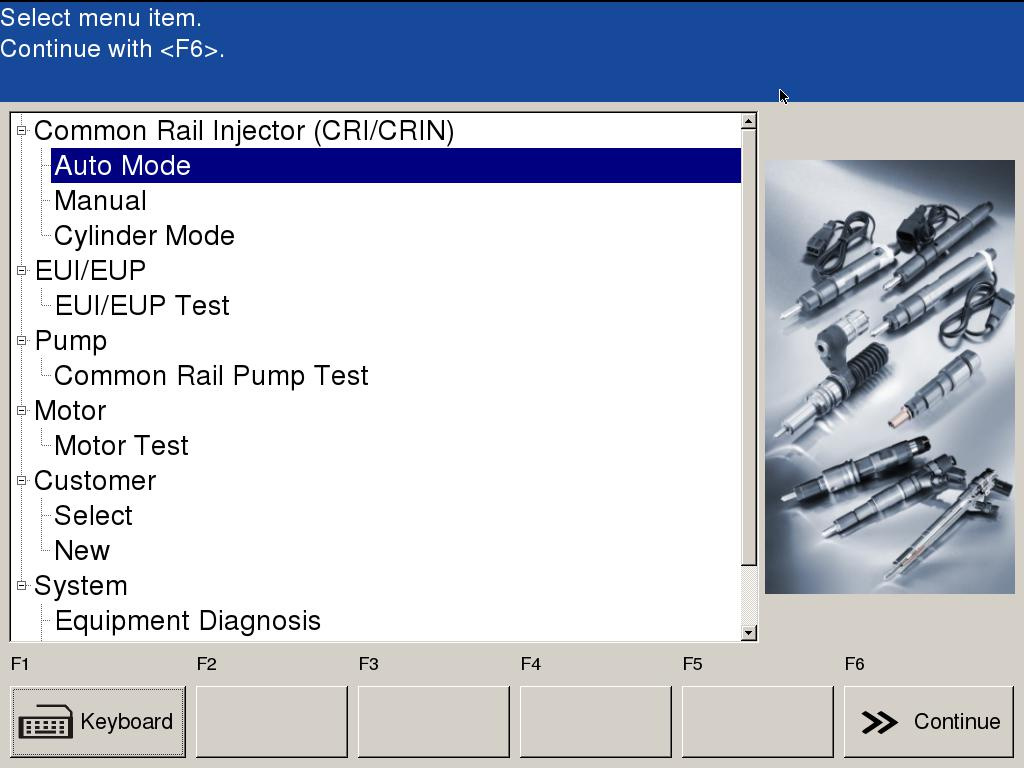

1.Industrial computer real time control,windows operation system,touch screen to operate.
2.Measure oil,rail pressure,pulse width,rotation speed,temperature will be shown on 19"touch screen.
3.It has more than 1000kinds of injector data to inquiry.
4.Database with USB interface, easier to update .
5.Adopt smart PID arithmetic,open and close switching control , rail pressure control more precisely.What's more,it has super pressure protection function.
6.Pulse power supply:12v/24v can automatically convert.
7.It supply oil after two filter system which meet European III standard.
8.Test bench short circuit protection function.
9.Oil temperature automatically control, Refrigeration mode axial fan/Forced cooling fan is optional.
10.Equipped with sensors and mearsuing cup which measure oil more precisely.
11.Chinese / English language.
12.Safety protection design, operation safety, simple
Function
1.End user can customize the rail pressure, pulse width, frequency, speed, measuring oil quantity,etc.

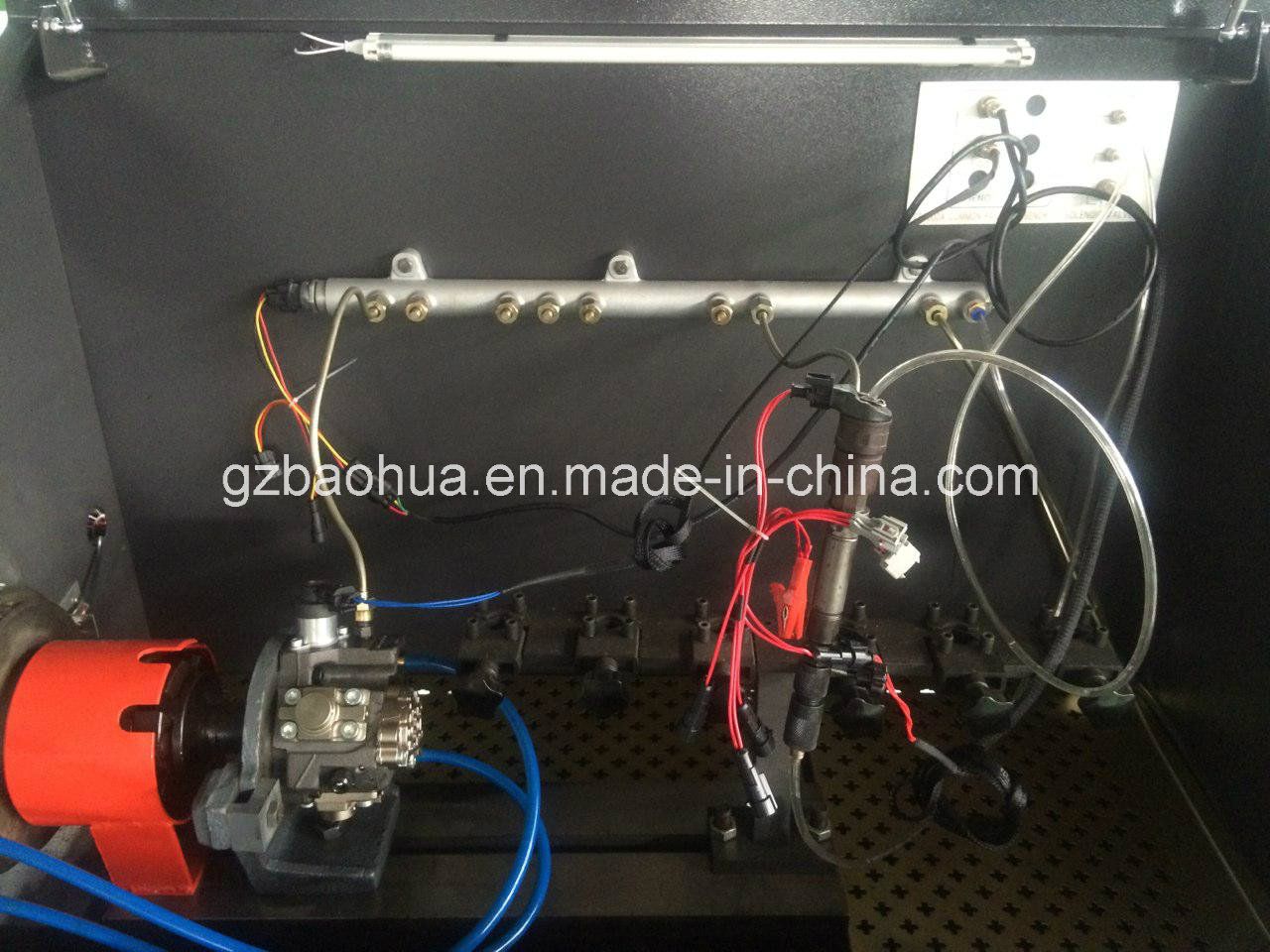

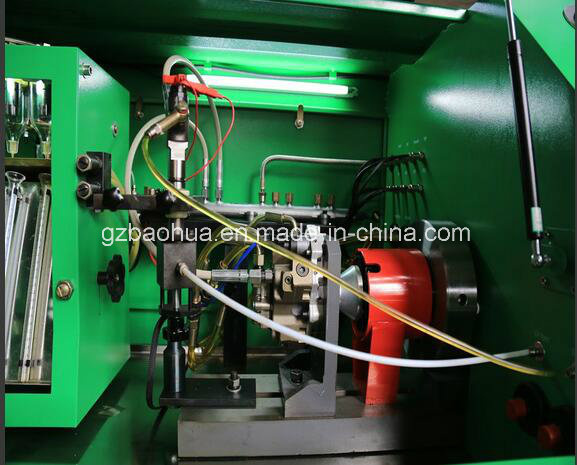

2.Its detect BOSCH, DENSO, DELPHI, SIEMENS and other brands injectors, common rail diesel pump and common rail oil pipe.
3. It detect common rail pump fuel metering valve.
4.It detect common rail pump seal property.
5.It detect common rail pump oil supply.
6.It detect common rail pump high-pressure oil supply performance
7.It detect common rail pressure sensor performance
8.It detect common rail pressure limiting pressure valve performance
9.It test high pressure common rail injector seal
10.It measure high pressure common rail injector under the conditions of fuel injection and return oil.
11.high-pressure common rail injector for high-pressure washing
12.with fuel injector test data report printing13.The user can customize rail pressure, pulse width, oil time and other parameter. Parameter:1, the rated output power: 11KW2, the host power: three-phase 380V / 50HZ3, the spindle speed: 0 ~ 3600 r / min4, the spindle turn: positive / negative5, the number of continuous injection: 0 ~ 1000 times6, rail pressure: 0 ~ 1800 bar7, the pulse width: 100 ~ 3000μs8, the test oil filter accuracy: less than 5μ9, the fuel temperature: 40 ± 2 ºC10, the fuel tank capacity: 60L11, the test bench dimensions (mm): 1800x850x155012, Weight: 800 kg
| Prod Model: |
CR3000A |
| Update Method: |
by Email |
| Certification: |
CCC |
