High Pressure 2300bar Common Rail Injector Test Bench

Name: High Pressure 2300bar Common Rail Injector Test Bench
Brand: ibuyautoparts.com
SKU: 722156592
Availability: InStock
Rating: 4.8 (86 reviews)

Price:	Negotiableset
Min Order:	1set
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product Show

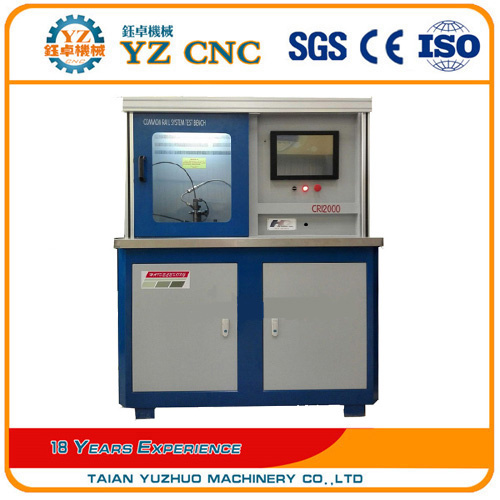

1. Product Pictures of High precision 2300bar Common rail fuel injector cleaner

CRI2000 common rail test bench specifications and function :
CRI2000 entirely in strict accordance with the BOSCH EPS200 testing step to detect.
The system independent research and development, data can be upgrade and updated at any time ,
the operation is simple, convenient and quick.
1. Application: Bosch,Delphi,Denso and Siemens common rail injectors.

2. Injector test: Leak test ,VL,LL,VE,TL,EM

3. Cleaning the injectors while testing.

4. User can add and edit the data by themselves.

5. It can add print function to save and print the testing results & customer information.
6. Support multi-language version.

Technical parameters:

Motor power : 4KW	Tank: 40L
Power supply : 380V/50Hz,220V/60Hz	Heater : 1KW
Pressure : 0- 2300bar	*Dimension(mm):13007001670*
Weight: 400KG	Certificate : CE ISO
Filter precision of test oil : 10μ	Temperature of test oil: 40±2ºC

Characteristics:
1 Full-automatic operation procedure, save the time to set up the data.

2 High quality import configuration: Bosch CP3.3 pump , Danfoss inventer ,Germany imported high pressure hose
3 Original Bosch and Denso data .
4 Frequency converter is used to change the rotation speed
5 Multi language support.
6 Belt connection, large torque, low noise!
7 The testing result , you can compare with the Bosch EPS200.
Our this model occupy a large market ,and 70% Bosch service stations to use our equipment at the same time .
8 High pressure can reach 2300bar .
OUR COMPANY SHOW

OUR EXHIBITION

OUR COOPERATION CUSTOMERS

WE ALSO CAN SUPPLY SPARE PARTS AND REPAIR TOOLS

Prod Model:	CRI2000
Product Name:	High Pressure Common Rail Test Bench
Pressure:	2300bar
Output Power:	4kw
Speed:	0-4000rpm
Tank:	40L
Supply Power:	380V/220V ,3 Phase
Weight:	400kg

Tai'an YuZhuo Machinery Co., Ltd (as for "YZ CNC"), is a company including active and professional teams, specialized in CNC machining Center, CNC Lathe Machine, Wheel Lathe machine. Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.

We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.

Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
